Product Description

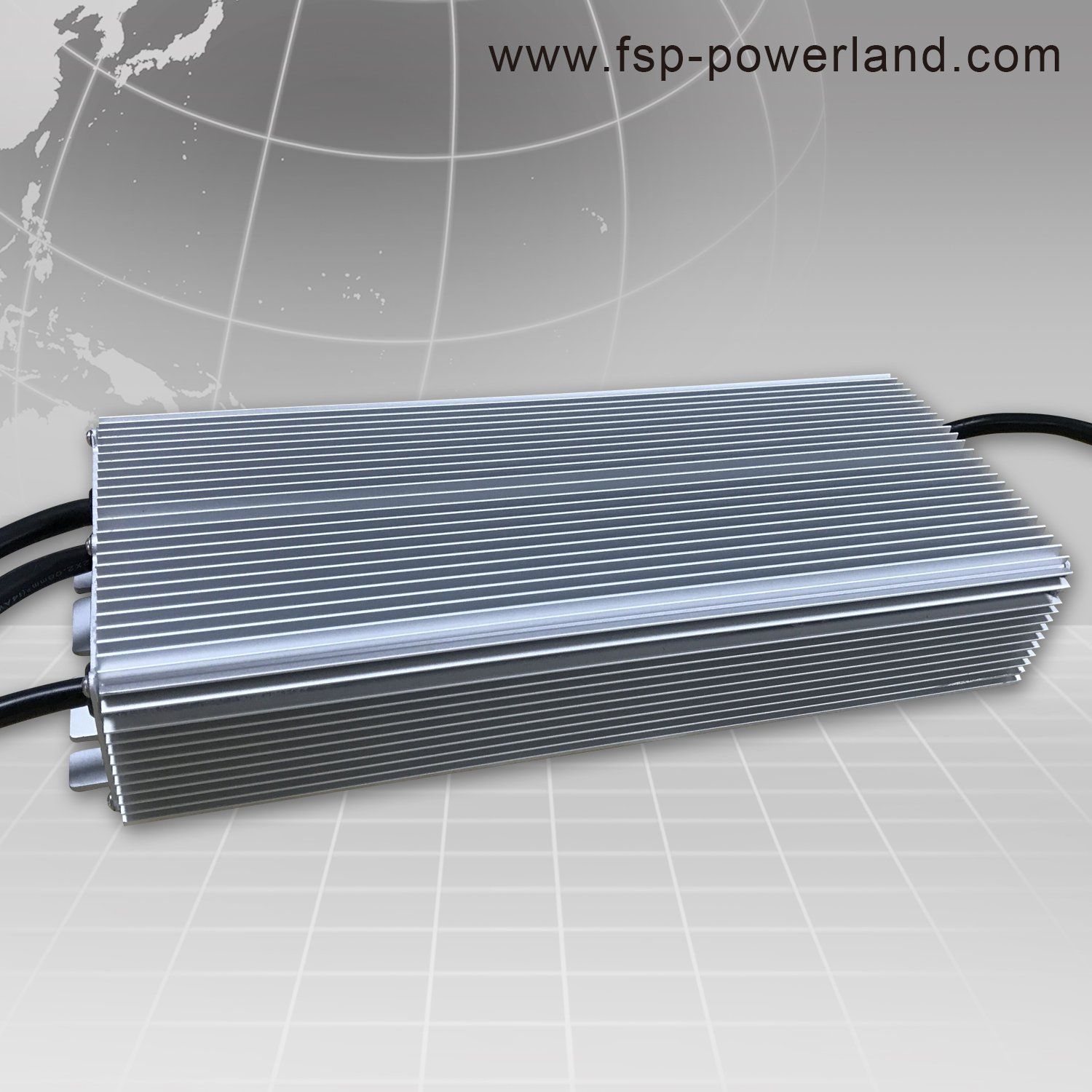

720W 13.33A 36-54V Programmable Constant Current LED Driver
Powerland's PLD720-SMT-54 offers digital programmable drivers with wide-range adjustable output current, together with 12V/100mA auxiliary output (optional) for smart lighting.
The output current of this series is programmable up to 13.33A.ApplicationsOutdoor & indoor LED lights
LED lights with flexible current settings
Parking lights and Architecture decoration lights
LED Horticulture lights
LED Fishing lights
Specifications Input
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input Current | Max. Input
Power | THD | Power
Factor |
| 108~305Vac | 720W | 36V
…
54V | 13.33A | 95.5% | 90ºC | 7.8A | 820W | <20% | >0.95 |
* Based on 25ºC ambient temperature, rated input voltage, and full load.
FeaturesUltra-deep dimming dowm to 0.5% compatible with DMX
12V/100mA auxiliary output(optional)
Output current programmable
>70,000 hours lifetime at 75ºC Tcase
>7 years warranty at 75oC Tcase
IP67 ingress protection
Min. operating temperature @ -40ºC
Constant current output
Compatible with 0-10V, PWM, external resistor, clock,DMX dimming
Universal input voltage: 108~305Vac
Safety according to UL8750 & EN61347-2-13
Surge voltage rating: L-N 5.5kV, L/NGND 11kV
EMC according to FCC Part 15 Class A
Lightning, OVP, SCP, OTP & Open Circuit Protection
Electrical Specifications| Model |
PLD720-SMT-54 |
Output Voltage
| 36~54V |
| Output Current |
13.33A
|
Output AUX Power Voltage (Optional)
| 12V |
Output AUX Power Current (Optional)
| 0-100mA |
Dimming
| 0(0.05)~10V, PWM, External Resistor, Clock, DMX |
Current Programmable
| Yes |
Output Power
| 720W |
Max. Current Ripple
| ±5% |
Max. Voltage Ripple
| 250mVp-p |
Voltage Range
|
108~305Vac
|
Frequency Range
|
47~63Hz
|
Max. Input Current
| 7.8A |
Max. Input Power
|
820W
|
Power Factor
| >0.95 @ 120Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency
|
96%
|
Max. Open Circuit Voltage
|
61.8V
|
THD
| <20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load |
Protections
|
OVP, OTP, OCP, SCP
|
Environmental Protection
|
UL Dry & Damp & Wet
|
Working Temperature
|
-40~+70ºC
|
Max. Case Temperature
| 90ºC |
Surge Protection
|
L-N 5.5kV, L/N-Earth 11kV
|
Agency Approbations
|
UL8750
|
Electromagnetic Compliance
|
Per Title 47 CFR Part 15 Class A
|
Ansi Surge Type
|
1.2/50μs Combination Wave (w/t 2Ω)
|
Isolation
|
Primary to Secondary: 3750Vac / 10mAMax / 60seconds
|
Dimension
| 280x123x54 mm (11.02x4.84x2.13 inch) |
Mounting Length
|
290 mm (11.42inch)
|
Overall Length
| 306 mm (12.05 inch) |
Weight
|
3.56 kg (7.85 lb)
|
Life Time
| >70,000 hours @ full load, 75ºC Tcase |
* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.

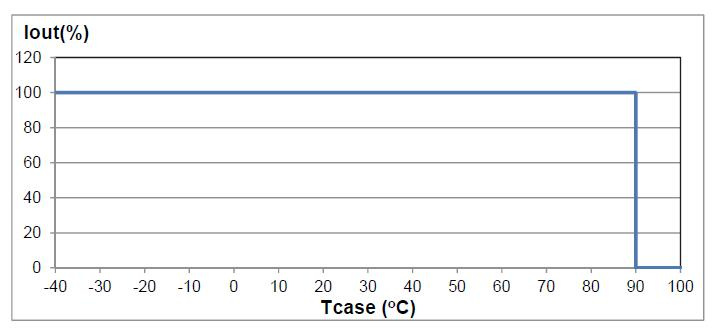

Electrical SpecificationsOutput Current vs. Case Temperature (with ±5ºC Tolerance)

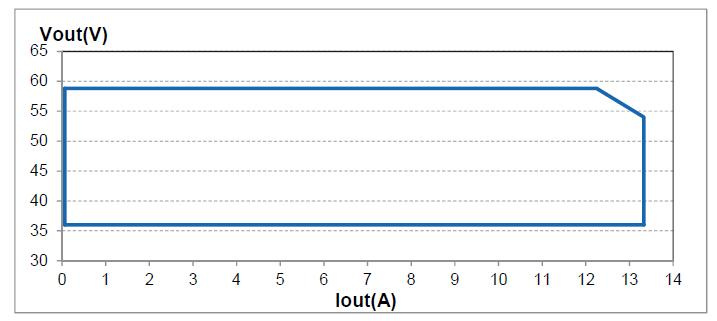

I-V Programming Area: Output Voltage vs. Output Current

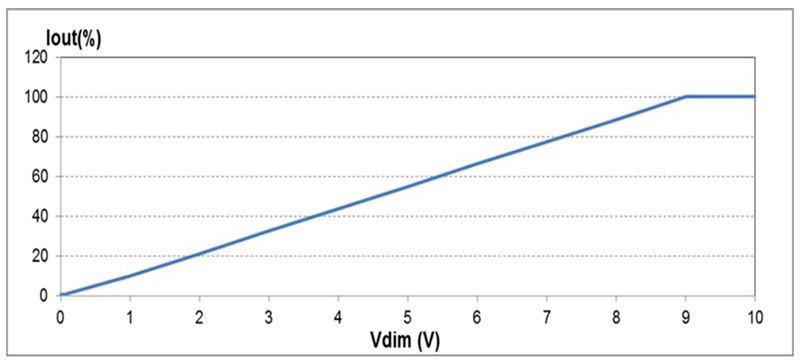

Electrical SpecificationsOutput Current vs. 0(0.05V)-10V Dimming Control Voltage

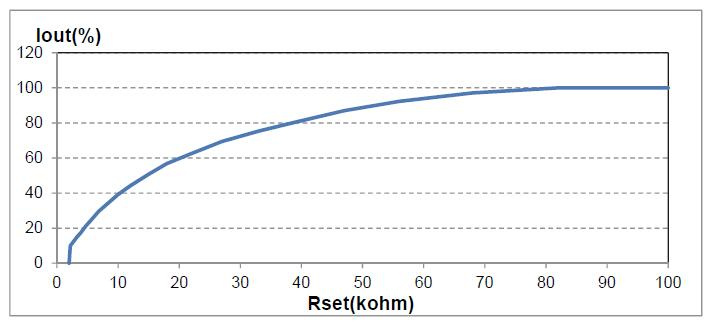

Electrical SpecificationsOutput Current vs. External Setting Resistor

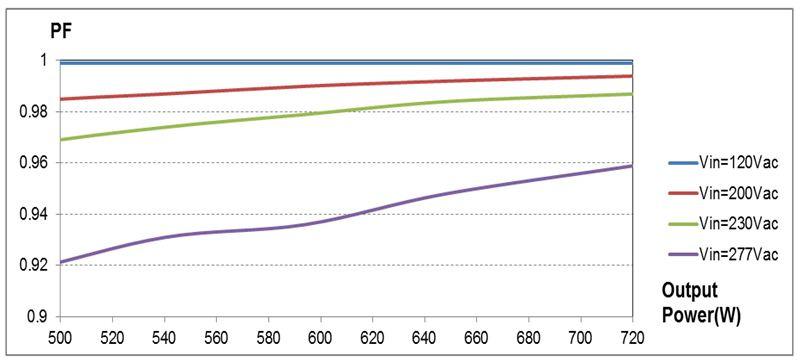

Performance CharacteristicsPower Factor vs. Output Power(@ 25ºC)

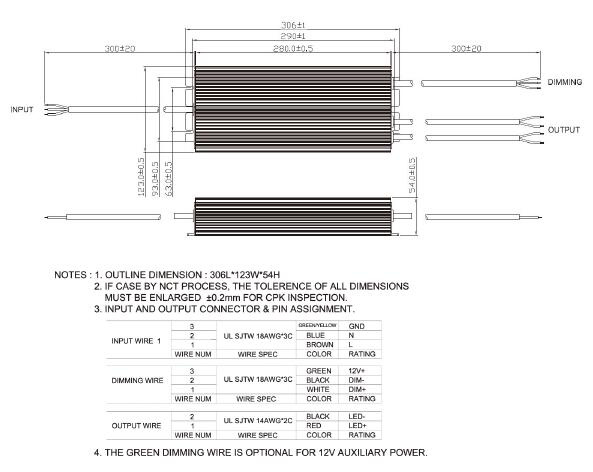

Mechanical Specification
