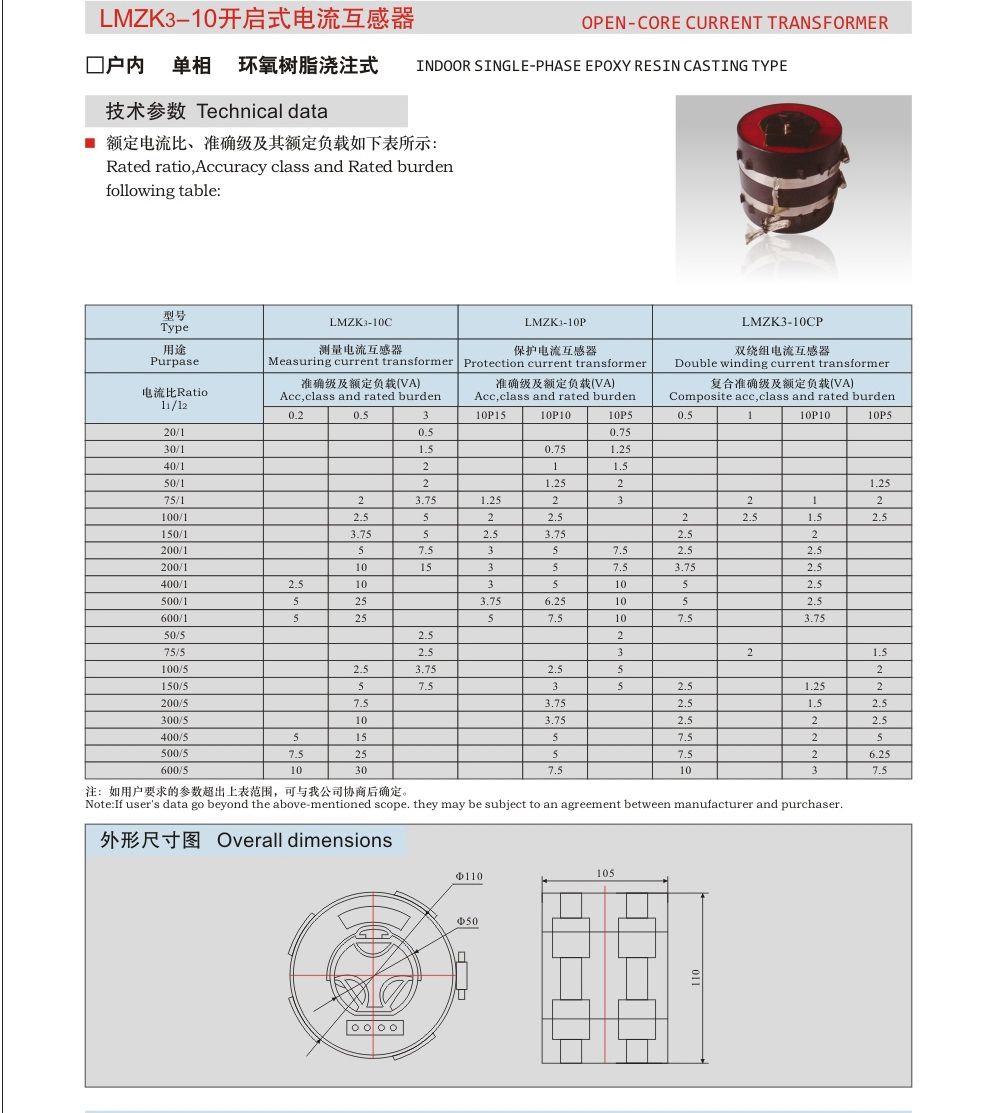

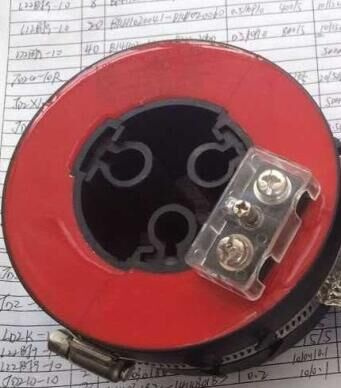

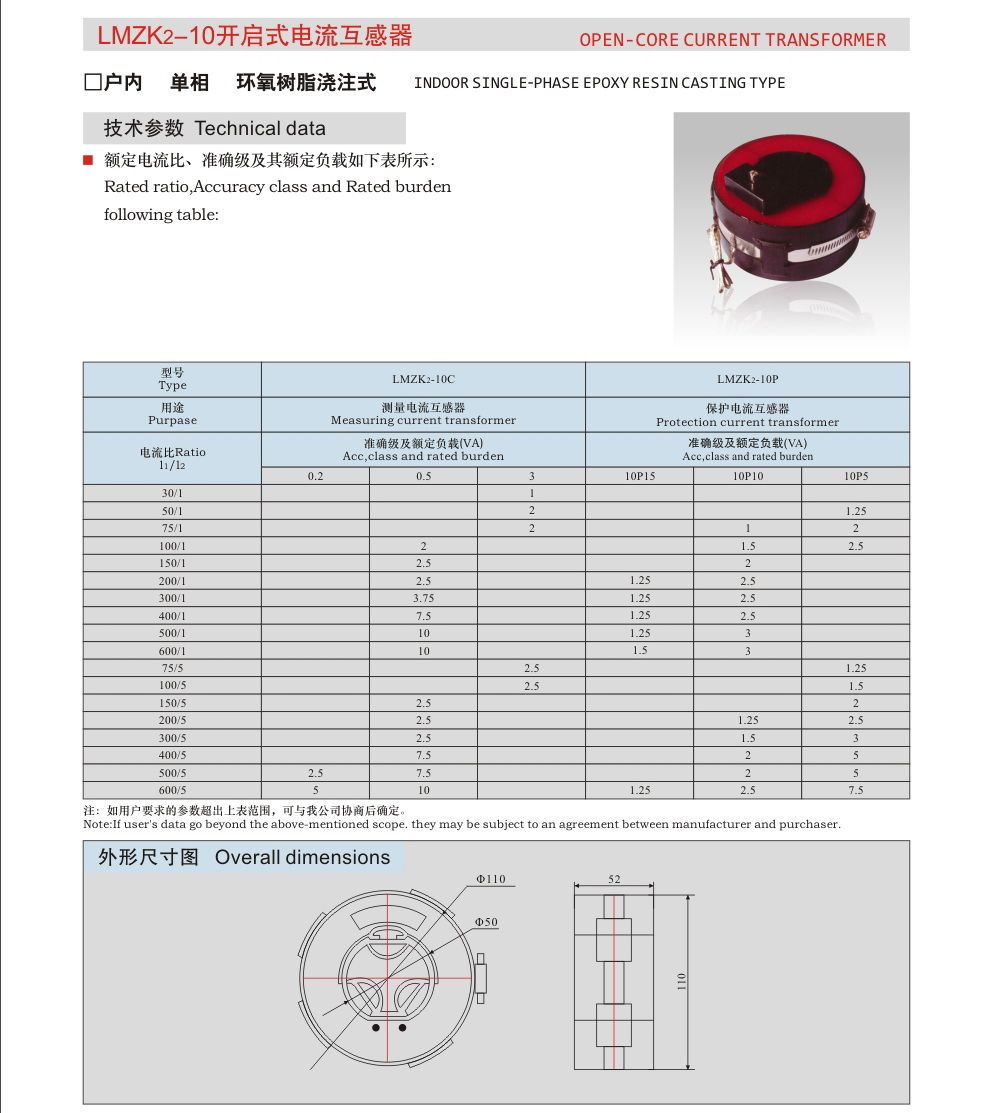

0.72kv Split Core Current Transformer
| Price: |
US $ 5/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,D/P |
| Prod Model: |
LMZK |
| Application: |
Instrument |
| Type: |
Current Transformer |
| Phase: |
Single |
Product Description
CURRENT RANSFORMER 0.72 Kv, TYPE SPLIT CORE, 60 Hz , 300/5 A, CLASS 1, ÍTEM SAP:270102 | Ratio (A) | 300/5 |
| Voltage of operatión (kV) | 0.23/0.38/0.44 |
| ÍTEM | CHARACTERÍSTICS | UNIT | REQUIRED | GUARANTEED |
| 1 | General Characterístics | | | |
| 1.1 | COUNTRY
| ------ | Indicate | CHINA |
| 1.2 | MANUFACTURER | ------ | Indicate | HEMG |
| 1.3 | MODEL | ------ | Indicate
| LMZK-0.72 |
| 1.4 | STANDARD | ------ | IEC 61869-1 (2007);
IEC 61869-2 (2012) | IEC 61869-1 (2007);
IEC 61869-2 (2012) |
| 1.5 | APPLICATION | ------ | MEASURE | MEASURE |
| 2 | Nominal data and characterístics | | | |
| 2.1 | FREQUENCY | Hz | 60 | 60Hz |
| 2.2 | TYPE | ------ | SPLIT CORE | SPLIT CORE |
| 2.3 | MOUNTING | ------ | INDOOR | INDOOR |
| 2.4 | INSULATION LEVEL | | | |
| | MAX. VOLTAGE OF OPERATION | kV | 0.72 | 0.72kV |
| | VOLTAGE WITH INDUSTRIAL FREQUENCY, 1 MINUTE SECONDARY | kV | 3 | 3Kv |
| 2.5 | CURRENTS | | | |
| | Nominal secondary current (Isn) | A | 5 | 5 A |
| | Nominal primary current (Ipn) | A | 300 | 300 A |
| | Nominal thermal current of shortcircuit (Ith), IEC 61869-2 | A | 60 Ipn | 60 Ipn |
| | Nominal dynamic current (Idyn) IEC 61869-2 | A | 2.5 Ith | 2.5 Ith |
| 2.6 | Ratio of transformatión | A | 300/5 | 300/5A |
| 2.7 | Power | VA | 2.5 | 2.5VA |
| 2.8 | Precision class | cl | 1 | 1 |
| 2.9 | Class thermal of insulation (IEC 60085) | | E | E |
| 2.10 | Factor of security | | 5 | 5 |
| 2.11 | Guarantee the precisión class in the range | | from 25%Isn to 100% Isn | from 25%Isn to 100% Isn |
| 3 | Accesories | | | |
| 3.1 | Fixation to the base | ------ | yes | YES |
| 3.2 | Fixation to rail DIN | ------ | yes | YES |
| 3.3 | Dimensions mínimum for the primary | mm x m m | Indicate | DIA 50mm |
| 3.4 | Metallic nameplate with tech nicall characterístics and scheme of connection | ------ | yes | YES |
| 3.5 | Sealable terminals, with holes of sufficient diamet er to pass through the thread of th e seal | ------ | yes | YES |
| 3.6 | Grounding Terminals | | yes | YES |
| 3.7 | Presents th e Certificate and Protocol of type tests of compliance of the standard IEC 61869-2 | | Yes | YES |
CURRENT RANSFORMER 0.72 Kv, TYPE SPLIT CORE, 60 Hz , 400/5 A, CLASS 1 ÍTEM SAP: 270201 | Ratio (A) | 400/5 |
| Voltage of operatión (kV) | 0.23/0.38/0.44 |
| ÍTEM | CHARACTERÍSTICS | UNIT | REQUIRED | GUARANTEED |
| 1 | General Characterístics | | | |
| 1.1 | COUNTRY
| ------ | Indicate | CHINA |
| 1.2 | MANUFACTURER | ------ | Indicate | HEMG |
| 1.3 | MODEL | ------ | Indicate
| LMZK-0.72 |
| 1.4 | STANDARD | ------ | IEC 61869-1 (2007);
IEC 61869-2 (2012) | IEC 61869-1 (2007);
IEC 61869-2 (2012) |
| 1.5 | APPLICATION | ------ | MEASURE | MEASURE |
| 2 | Nominal data and characterístics | | | |
| 2.1 | FREQUENCY | Hz | 60 | 60Hz |
| 2.2 | TYPE | ------ | SPLIT CORE | SPLIT |
| 2.3 | MOUNTING | ------ | INDOOR | INDOOR |
| 2.4 | INSULATION LEVEL | | | |
| | MAX. VOLTAGE OF OPERATION | kV | 0.72 | 0.72kV |
| | VOLTAGE WITH INDUSTRIAL FREQUENCY, 1 MINUTE SECONDARY | kV | 3 | 3Kv |
| 2.5 | CURRENTS | | | |
| | Nominal secondary current (Isn) | A | 5 | 5 A |
| | Nominal primary current (Ipn) | A | 400 | 400 A |
| | Nominal thermal current of shortcircuit (Ith), IEC 61869-2 | A | 60 Ipn | 60 Ipn |
| | Nominal dynamic current (Idyn) IEC 61869-2 | A | 2.5 Ith | 2.5 Ith |
| 2.6 | Ratio of transformatión | A | 400/5 | 400/5A |
| 2.7 | Power | VA | 5, 7.5,10 | 5VA |
| 2.8 | Precision class | cl | 1 | 1 |
| 2.9 | Class thermal of insulation (IEC 60085) | | E | E |
| 2.10 | Factor of security | | 5 | 5 |
| 2.11 | Guarantee the precisión class in the range | | from 25%Isn to 100% Isn | from 25%Isn to 100% Isn |
| 3 | Accesories | | | |
| 3.1 | Fixation to the base | ------ | yes | YES |
| 3.2 | Fixation to rail DIN | ------ | yes | YES |
| 3.3 | Dimensions mínimum for the primary | mm x mm | Indicate | DIA 50mm |
| 3.4 | Metallic nameplate with technicall characterístics and scheme of connection | ------ | yes | YES |
| 3.5 | Sealable terminals, with holes of sufficient diameter to pass through the thread of the seal | ------ | yes | YES |
| 3.6 | Grounding Terminals | | yes | YES |
| 3.7 | Presents the Certificate and Protocol of type tests of compliance of the standard IEC 61869-2 | | Yes | YES |
CURRENT RANSFORMER 0.72 Kv, TYPE SPLIT CORE, 60 Hz , 600/5 A, CLASS 1 ÍTEM SAP: 27020 | Ratio (A) | 600/5 |
| Voltage of operatión (kV) | 0.23/0.38/0.44 |
| ÍTEM | CHARACTERÍSTICS | UNIT | REQUIRED | GUARANTEED |
| 1 | General Characterístics | | | |
| 1.1 | COUNTRY
| ------ | Indicate | CHINA |
| 1.2 | MANUFACTURER | ------ | Indicate | HEMG |
| 1.3 | MODEL | ------ | Indicate
| LMZK-0.72 |
| 1.4 | STANDARD | ------ | IEC 61869-1 (2007);
IEC 61869-2 (2012) | IEC 61869-1 (2007);
IEC 61869-2 (2012) |
| 1.5 | APPLICATION | ------ | MEASURE | MEASURE |
| 2 | Nominal data and characterístics | | | |
| 2.1 | FREQUENCY | Hz | 60 | 60Hz |
| 2.2 | TYPE | ------ | SPLIT CORE | SPLIT CORE |
| 2.3 | MOUNTING | ------ | INDOOR | INDOOR |
| 2.4 | INSULATION LEVEL | | | |
| | MAX. VOLTAGE OF OPERATION | kV | 0.72 | 0.72kV |
| | VOLTAGE WITH INDUSTRIAL FREQUENCY, 1 MINUTE SECONDARY | kV | 3 | 3Kv |
| 2.5 | CURRENTS | | | |
| | Nominal secondary current (Isn) | A | 5 | 5 A |
| | Nominal primary current (Ipn) | A | 600 | 600 A |
| | Nominal thermal current of shortcircuit (Ith), IEC 61869-2 | A | 60 Ipn | 60 Ipn |
| | Nominal dynamic current (Idyn) IEC 61869-2 | A | 2.5 Ith | 2.5 Ith |
| 2.6 | Ratio of transformatión | A | 600/5 | 600/5A |
| 2.7 | Power | VA | 5, 7.5,10 | 5VA |
| 2.8 | Precision class | cl | 1 | 1 |
| 2.9 | Class thermal of insulation (IEC 60085) | | E | E |
| 2.10 | Factor of security | | 5 | 5 |
| 2.11 | Guarantee the precisión class in the range | | from 25%Isn to 100% Isn | from 25%Isn to 100% Isn |
| 3 | Accesories | | | |
| 3.1 | Fixation to the base | ------ | yes | YES |
| 3.2 | Fixation to rail DIN | ------ | yes | YES |
| 3.3 | Dimensions mínimum for the primary | mm x mm | Indicate | DIA 50mm |
| 3.4 | Metallic nameplate with technicall characterístics and scheme of connection | ------ | yes | YES |
| 3.5 | Sealable terminals, with holes of sufficient diameter to pass through the thread of the seal | ------ | yes | YES |
| 3.6 | Grounding Terminals | | yes | YES |
| 3.7 | Presents the Certificate and Protocol of type tests of compliance of the standard IEC 61869-2 | | Yes | YES |
