72V 15ah DIY LiFePO4 Battery Pack

Prod Model:	BBG-SB-LFP7215
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cycle Life:	1500cycles
Max Continuous Discharge Current:	10c
Max Charge Current:	1c
Charger:	87.6V 3A
Lead Time:	7 Working Days After Receiving Payment
Connection Mode:	Series and Parallel
Type:	LiFePO4 Battery
Usage:	Electric Bicycle, Electric Scooter, Golf Car
Standard Voltage:	72V
Rated Capacity:	15ah

Product Description

72V 15Ah DIY LiFePO4 Battery Pack

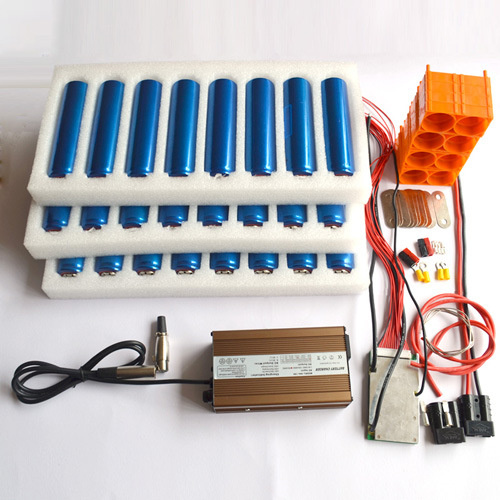

DIY Pack Includes:
1: 24pcs 40152S 15Ah Headway Cells
2: 1pcs 72V/24S Cell BMS constant discharging current: 40A, Peak discharging current: 120A(you can choose your need of BMS in our shopping BMS select)
3: 1pcs 72V3A(87.6V3A) LiFePO4 Charger
4: 24pcs Battery Bonnector
5: 1pcs Red/Black 50A Anderson Connection (One is Connecting to the AWG 12# Silicone wire that is 50cm, Used for Discharging)
6: One is 45A Anderson used for Small Discharge Current
7: Two lines of AWG 16# silicone, the length is 50cm(Color is Red, Black )usd for Charging positive, negative
8: One line of AWG12# silicone, The length is 30cm that used BMS to Battery B-
9: 3pcs 6-6mm Diameter of the connection terminals, one is connecting to battery B-, One is connecting to P+. The tired one is connecting to the B+
10: 1pcs jack female(1+, 2-), is connecting to the charger
11: One meter no-lead environmentally solder (enough )
12: 25pcs connection terminalsthat used to connect the BMS signal line and Battery
13: A sufficient amount of heat-shrinkable tube

Please note: Headway-Headquarters will not be responsible for any damage made to above product during your own assembly process. It is assumed that the purchaser of a DIY battery kit has some knowledge of basic electricity and its dangers along with basic mechanical skills. Headway-Headquarters makes no express warranties and any implied warranties including those of merchantability and fitness for a particular purpose. Headway-Headquarters shall have no liability or responsibility to customer or any other person or entity with respect to any liability, loss or damage caused directly or indirectly by use or performance of the product arising out of any breach of these directions/instructions including, but not limited to any damages resulting from inconvenience, loss of time, data, property, revenue or profit or any indirect, special, incidental, or consequential damages, even if Headway-Headquarters has been advised of the possibilities of such damages.

Electric bike battery:

Model	Style	Material	Voltage	Capacity	Dimension	Weight	Charger
					Include BMS and housing
			(V)	(Ah)	L*W*K  (mm)	(kg)	(A)
BBG-SF-LFP2408	Silver fish	LiFePO4	24	8	75*110*378	4	2
BBG-SF-LFP24081	Silver fish	LiFePO4	24	8	89*89*401	4	2
BBG-SF-LN2410	Silver fish	LNCM	24	10	89*89*401	3.5	2
BBG-RR-LFP2408	Rear rack	LiFePO4	24	8	70*150*245	4	2
BBG-RR-LN2410	Rear rack	LNCM	24	10	70*150*246	3.5	2
BBG-SF-LFP2410	Silver fish	LiFePO4	24	10	75*110*378	4.2	2
BBG-LF-LFP2410	Frog	LiFePO4	24	10	80*150*180	4.2	2
BBG-RR-LFP2410	Rear rack	LiFePO4	24	10	70*150*245	4.2	2
BBG-WB-LFP2410	water bottle	LiFePO4	24	10	91*91*410	4.5	2
BBG-SF-LFP2420	Silver fish	LiFePO4	24	20	135.5*88.8*395	6	5
BBG-SF-LFP3608	Silver fish	LiFePO4	36	8	75*110*385	4.2	2
BBG-RR-LFP3608	Rear rack	LiFePO4	36	8	70*150*365	4.2	2
BBG-LF-LFP3606	Frog	LiFePO4	36	6	80*150*180	4	2
BBG-SF-LFP3610	Silver fish	LiFePO4	36	10	75*110*385	4.5	2
BBG-RR-LFP3610	Rear rack	LiFePO4	36	10	70*150*365	4.5	2
BBG-WB-LN3610	water bottle	LNCM	36	10	91*91*435	4	2
BBG-FB-LN3610	Frog	LNCM	36	10	80*150*180	4	2
BBG-RR-LFP3612	Rear rack	LiFePO4	36	12	69*150*480	4.5	2
BBG-SF-LFP3612	Silver fish	LNCM	36	12	89*85*385	4.5	2
BBG-RR-LN3614	Rear rack	LiFePO4	36	14	68*148*385	5.5	3
BBG--RR-LFP4810	Rear rack	LiFePO4	48	10	68*150*480	7	2
BBG-LFP4820	Epoxy board & PVC packaged	LiFePO4	48	20	320*140*150	14.5	4
