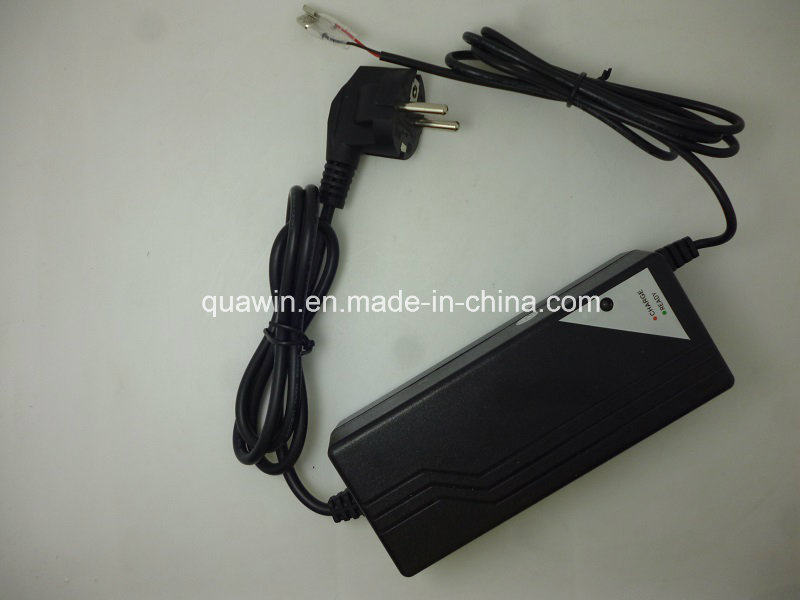

72V 1A 3-Step Lead Acid Charger

Name: 72V 1A 3-Step Lead Acid Charger
Brand: all-electronics-online.com
SKU: 783870925
Availability: InStock
Rating: 4.3 (141 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	200/Piece
Pay Type:	T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW720-010-S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Voltage:	AC100-240V 50/60Hz
Desktop Type:	Yes
Voltage:	72V
Delivery Date:	15days
Warranty:	One Year
Charger Type:	Electric Charger
Type:	Lead Acid Battery
Nominal Voltage:	72V

Product Description

72V Lead acid battery charger (72V 1A)

Quick Detail:
Brand Name:QUAWIN
Model Number:QW720-010-S
Use:72V Lead-Acid Battery
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 88.2V
Certificate:CE FCC UL SAA PSE KC ROHS
Color:Black
Input voltage:100-240VAC 50/60Hz
Output voltage:88.2V
Output current:1A
Output power:88.2W
Charge mode:CC---CV---Float Charge
Output Connector:DC Jack,Small crocodile clip,Cigar lighter,XRL,Ring terminal

Packaging:
inner package: white box/polybags/at your request
outer package:carton

Specifications:
Portable fast SLA/AGM/VRLA /GEL charger 72V lead acid battery charger

Features:
？ 100V-240V AC input for worldwide power support.
？ Full auto 3 satges( CC+CV(H)+CV(F) ) charging process,
？ Constant charging current for faster charging, save you much more time.
？ Stabilized output;low rippple
？ It can charge any 72V SLA/VRLA/GEL/AGM battery with capacity 1-5Ah

Specification:
？ Input: AC 100-240V 50-60Hz 5.0A
？ Output: DC 88.2V
？ Charging current: 1A
？ Weight: 800g(only body)
？ Dimension:L152.5*W63*H45mm
Safety protections:
？ Over Voltage protection
？ Short Circuit protection
？ Polarity error protection
？ Over power protection

The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
？ Charging:Red LED
？ Battery Full:Green LED

Call us to know more details datasheet.

ITEM	QW120-050-S	QW120-060-S	QW120-070-S	QW120-080-S	QW120-090-S	QW120-100-S
Output voltage:	14.7V	14.7V	14.7V	14.7V	14.7V	14.7V
Rated output current:	5A	6A	7A	8A	9A	10A
Output power:	73.5W	88.2W	102.9W	117.6W	132.3W	147W
ITEM	QW240-030-S	QW240-040-S	QW240-050-S	QW360-020-S	QW360-030-S	QW480-020-S
Output voltage:	29.4V	29.4V	29.4V	44.1V	44.1V	58.8V
Rated output current:	3A	4A	5A	2A	3A	2A
Output power:	88.2W	117.6W	147W	88.2W	132.3W	117.6W
ITEM	QW480-025-S	QW600-010-S	QW600-020-S	QW720-010-S	QW720-015-S	QW840-010-S
Output voltage:	58.8V	73.5V	73.5V	88.2V	88.2V	102.9V
Rated output current:	2.5A	1A	2A	1A	1.5A	1A
Output power:	147W	73.5W	147W	88.2W	132.3W	102.9W
