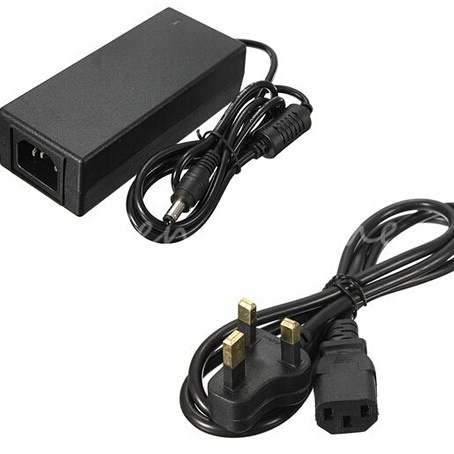

72W Acdc Adapter

Name: 72W Acdc Adapter
Brand: all-electronics-online.com
SKU: 787649695
Availability: InStock
Rating: 5 (92 reviews)

Price:	US $ 4.5-5/Set
Min Order:	500/Set
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	12V5A /19V3.42A/24V3A
For Use:	Standard Battery
Delivery Date:	3-4 Weeks
Short Circuit Protection:	Yes
Overcurrent Protection:	Yes
Overvoltage Protection:	Yes
Usage:	Switching
Output Type:	AC or DC
Brand:	Green

Product Description

36W Desktop Power Supply

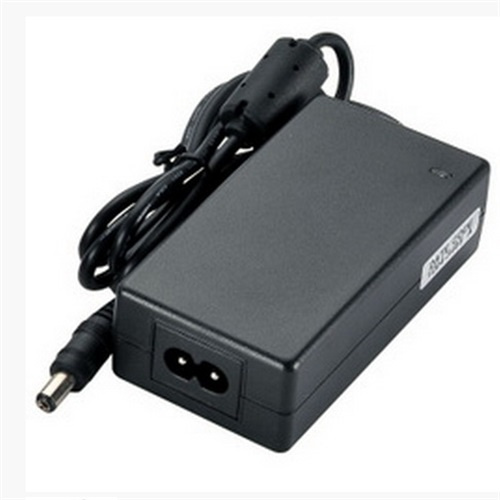

72W Desktop Power Supply
1. Input
Rated input voltage : 100-240Vac 0.6A
Changeable input voltage: 90V-264Vac
Rated Frequency:50/60Hz
Ajust Frequency:47-63Hz
2. Inrush Current
When output is Rated load, the ambient temperature is 25ºC, cold boot with input 240Vac, the biggest inrush current is 30A
3. AC leakage current
When input voltage 240Vac, the biggest leakage current 0.25mA
Output characteristics
1. Output 12V 5A
19V 3.42A
24V 3A
2. Efficience
When input 100Vac with the biggest output load, min 70%
When input 240Vac with the biggest load output, min 75%
3. No-load standby power: 0.3 Max
4. Ripple wave and noisy
In the condition of rated voltage and rated current, using the oscilloscope 20MHz bandwidth for links to the switch power supply output, the output terminal parallel 47UF an electrolytic capacitors and a 0.1UF ceramic capacitors, the biggest ripple and noisy:<120m Vp-p
Certification: CE EK UL LVD FCC PSE CCC

Green-charger's engineers have dedicated to digital control power products for 13 years, specialize in the design and manufacture many types of NiMH, NiCd, Li-ion and Lead-acid battery charger and battery meter, and also is a professional in the face of high-end clients of the battery charger and battery meter. These products have high performance microprocessor technology to power your battery safely and quickly The main products are battery chargers that can be used in the Electrical-Vehicle, wheelchair, scooters, motorcycles, RC toy, RC flight, mobile light/lamp, LED lamp and many kinds of portable electrical device. The type of chargers have NiMH NiCd charger, lithium battery charger, lead-acid battery charger, LiFePO4 battery charger and so on. All sorts of 5W to 500W power charger all have production, is one of the most professional manufacturers of battery chargers in China.

After many years experiences, Green-charger made a super technology and rich experience of senior R&D engineers. We can develop battery chargers for NiMH, NiCd, Lead-Acid and Li-ion batter pack. The Battery chargers and Battery Management is our produces family also.

Our quality policy is: Providing high reliability of the products, to provide high satisfaction service. We are equipped with the advanced production and kind of test instruments, has the rich RoHS process production management, to ensure that every batch of products satisfy customers. Our products have CCC UL cUL CE VDE CB PSE FC EMC and so on.

We can according to the specific requirements of customers, customized all kinds of non-standard products to meet the needs
