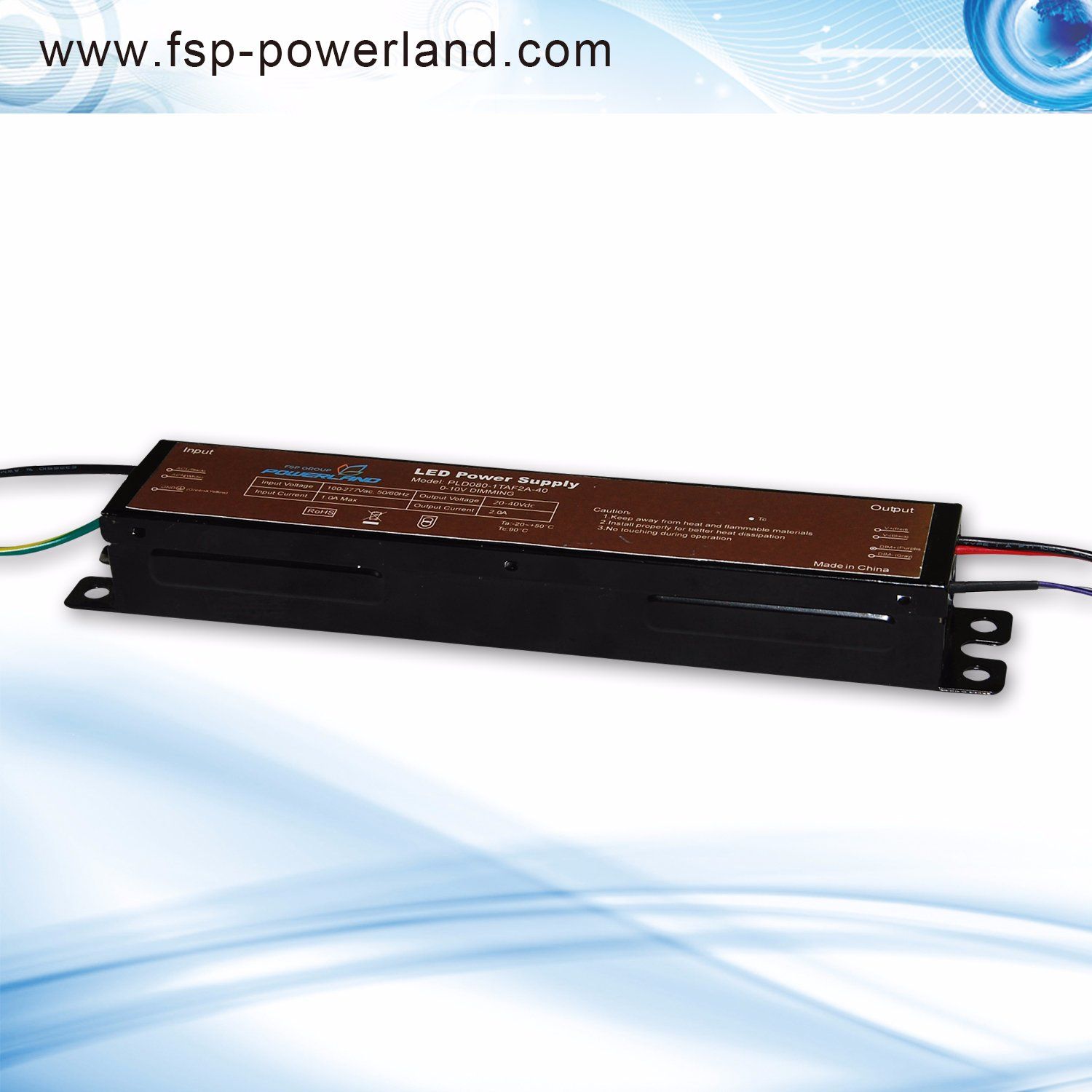

75~80W 12~114V Indoor Constant Voltage LED Driver

Name: 75~80W 12~114V Indoor Constant Voltage LED Driver
Brand: all-electronics-online.com
SKU: 804257715
Availability: InStock
Rating: 4.6 (140 reviews)

Price:	US $ 10.5-13.2/Piece
Min Order:	300/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD075/80-1TAF2-XXX
Output Power:	75~80W
Output Voltage:	12~114V
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	90~305VAC
Pack Sealing Size:	215X42X30 mm
Brand:	Fsp-Powerland

Product Description

75~80W 12~114V Indoor Constant Voltage LED Driver

Powerland's PLD075/80-1TAF2-XXX series offers constant current drivers with 90~305Vac universal input and the output current of this series is up to 0.7/1.05/1.4/1.8/2.0/3.3A .

Applications
Indoor LED lights

High bay and low bay lights, LED panels

Features
100,000 hours lifetime at 65oC Tcase

5 years warranty at 50oC Tcase

Constant current output
Universal input voltage: 90~305Vac

Safety according to UL1310, UL8750, & EN61347-2-13
UL Class 2 Output

EMC according to FCC Part 15 Class B

Lightning, OVP, SCP, & Open Circuit Protection

Specifications

Input Voltage	Output Power	Output Voltage	Output Current	Efficiency	Max. Case Temperature	Max. Input Current	Max. Input Power	THD	Power Factor
90~305Vac	75~96W	12V … 114V	0.7A … 3.33A	90%	90oC	1.1A	95W	<20%	>0.95

* Based on 25oC ambient temperature, rated input voltage, and full load.

Electrical Specifications

Model	PLD075-1TAF2-40	PLD080-1TAF2-24	PLD080-1TAF2-40	PLD080-1TAF2-57	PLD080-1TAF2-76	PLD080-1TAF2-114
Output Voltage	40V	24V	40V	57V	76V	114V
Output Current	0~1.8A	0~3.33A	0~2.00A	0~1.40A	0~1.05A	0~0.7A
Output Power	75W	80W	80W	80W	80W	80W
Max. Voltage Ripple	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%
Voltage Range	90~305Vac	90~305Vac	90~305Vac	90~305Vac	90~305Vac	90~305Vac
Frequency Range	47~63Hz	47~63Hz	47~63Hz	47~63Hz	47~63Hz	47~63Hz
Max. Input Current @ 230Vac	1.0A	1.1A	1.1A	1.1A	1.1A	1.1A
Max. Input Power	85.5W	95W	95W	95W	95W	95W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	90%	90%	90%	90%	90%	90%
Max. Open Circuit Voltage	43V	35V	50V	65V	85V	125V
THD	<20% @ 120Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp
Working Temperature	-20~+60oC
Max. Case Temperature	90oC
Surge Protection	L-N 4kV, L/N-Earth 4kV
Agency Approbations	UL1310 Class 2				UL8750
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	215x42x30 mm (8.46x1.65x1.18 inch)
Mounting Length	228 mm (8.98 inch)
Overall Length	242 mm (9.53 inch)
Weight	0.5 kg (1.1 lb)
Life Time	>50,000 hours @ full load, 75oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

Electrical Specifications
Output Current vs. Case Temperature (with ±5oC Tolerance)

Performance Characteristics
Life Time vs. Case Temperature
