| Prod Model: |
PLD075/080/096-1TCF1(A) |
| Output Power: |
75~80W |
| Dimming: |
0-10V Dimming |
| Usage: |
Construction |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Power Supply Voltage: |
90~305VAC |
| Pack Sealing Size: |
230X49X40.5 mm |
| Brand: |
Fsp-Powerland |
Product Description

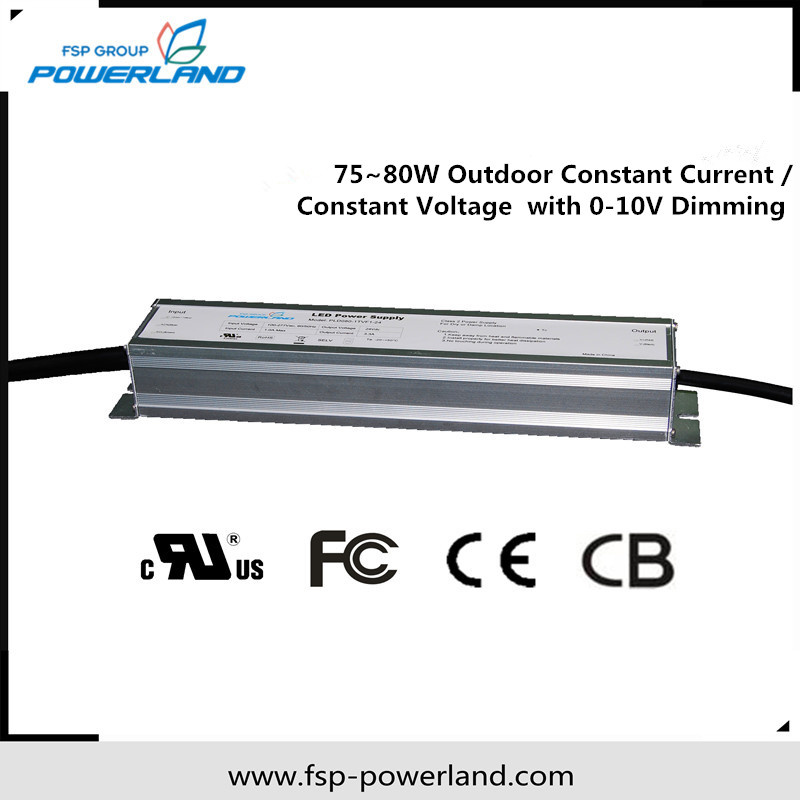

75~80W Outdoor Constant Current / Constant Voltage Dimmable LED Driver
Powerland's PLD075/080-1TAF1(A) series offers constant current drivers with wide-range dimmable output current and 90~305Vac universal input.
The output current of this series is up to 0.7/1.05/1.4/1.8/2.0/3.3A , and designed for 0-10V dimming applications
Applications
Outdoor LED lights
Street lights, high bay and low bay lights, LED panels
Features
100,000 hours lifetime at 70oC Tcase
7 years warranty at 70oC Tcase
IP67 ingress protection
Constant current & constant voltage output
Compatible with 0-10V dimming (A version)
Universal input voltage: 90~305Vac
Safety according to UL1310, UL8750, & EN61347-2-13
UL Class 2 Output
Surge voltage rating: L-N 2kV, L/NGND 4kV
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, OTP & Open Circuit ProtectionSpecificationsInput
Voltage | Output
Power | Output
Voltage | Output
Current | Efficiency | Max. Case
Temperature | Max. Input
Current | Max. Input
Power | THD | Power
Factor |
| 90~305Vac | 75~80W | 12V
…
114V | 0.7A
…
3.33A | 90% | 90oC | 1.1A | 95W | <20% | >0.95 |
* Based on 25oC ambient temperature, rated input voltage, and full load. Electrical Specifications| Model | PLD075-1TAF1-40
PLD075-1TAF1A-40 | PLD080-1TAF1-24
PLD080-1TAF1A-24 | PLD080-1TAF1-40
PLD080-1TAF1A-40 | PLD080-1TAF1-57
PLD080-1TAF1A-57 | PLD080-1TAF1-76
PLD080-1TAF1A-76 | PLD080-1TAF1-114
PLD080-1TAF1A-114 |
Output Voltage | 20~40V | 12~24V | 20~40V | 28~57V | 38~76V | 57~114V |
Output Current | 1.8A | 3.33A | 2.00A | 1.40A | 1.05A | 0.7A |
Dimming
| A Version: 0-10V Dimming |
Output Power | 75W | 80W | 80W | 80W | 80W | 80W |
Max. Current Ripple | 200mA | 200mA | 200mA | 200mA | 200mA | 200mA |
Voltage Range | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac | 90~305Vac |
Frequency Range | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz | 47~63Hz |
Max. Input Current @ 230Vac | 1.0A | 1.1A | 1.1A | 1.1A | 1.1A | 1.1A |
Max. Input Power | 85.5W | 95W | 95W | 95W | 95W | 95W |
Power Factor | >0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load |
Efficiency | 90% | 90% | 90% | 90% | 90% | 90% |
Max. Open Circuit Voltage | 43V | 26V | 43V | 60V | 79V | 120V |
THD | <20% @ 120Vac & 80~100% load |
Protections | OVP, OTP, OCP, SCP |
Environmental Protection | UL Dry & Damp & Wet, and Type TL |
Working Temperature | -40~+70oC |
Max. Case Temperature | 90oC |
Surge Protection | 2kV/4kV |
Agency Approbations | UL1310 Class 2 | UL8750 |
Electromagnetic Compliance | Per Title 47 CFR Part 15 Class B |
Ansi Surge Type | 1.2/50μs Combination Wave (w/t 2Ω) |
Isolation | Primary to Secondary: 3750Vac / 10mAMax / 60seconds |
Dimension | 230x49x40.5 mm (9.06x1.93x1.59 inch) |
Mounting Length | 243 mm (9.57 inch) |
Overall Length | 258 mm (10.16 inch) |
Weight | 0.87 kg (1.91 lb) |
Life Time | 100,000 hours @ full load, 70oC Tcase |
* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
Performance Characteristics
Life Time vs. Case Temperature
