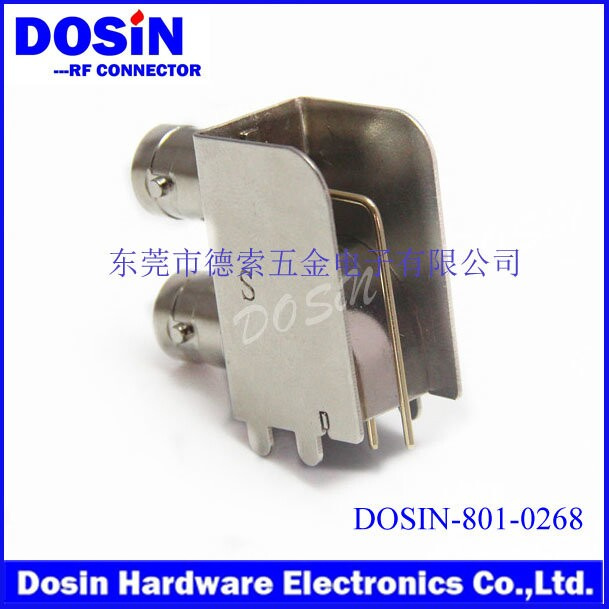

75 Ohm &50 Ohm Right Angle BNC PCB Mount Connector

Prod Model:	DOSIN-801-0268
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Generally Coaxial Connector
Coupling Mechanism:	Double Bayonet Plug-in

Product Description

The BNC connectors are for low power, quick connect/disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same-type connectors of abroad. They are widely used connect of the RF coaxial-cables in electronic equipment and instuments. Characteristic impedance 50Ω , 75Ω .

BNC Connector Applications:
1)Base Stations
2) PC/LAN
3) Instrumentation
4)Telecom
5)wireless communication

6) Network
BNC Connector Features and Benefits:
Bayonet coupling mechanism provides quick mating and unmating
50 Ω And 75 Ω Impedance designs allow customers to match impedance to system requirements
50 Ω And 75 Ω Connectors are intermateable to ensure non-destructive mating
Three grades of connectors are available for military, industrial and commercial applications

Material and fish:
Shell: Zinc alloy nickel plated
Contact pin: Brass gold plated
Socket: Beryllium gold plated
Elastic contact: Beryllium gold plated
Insulator: PTFE
Crimp ferrule: Copper alloy nickel or gold plated
Oo-ringsealing: 6146 silastic

Major technical chracterstics:
Impedance: 50/75 Ω Nominal
Frequency Range; 0-4 GHz with low reflection
Voltage Rating: 500 volts peak
Dielectric Withstanding Voltage: 1, 500 volts RMS
VSWR: M39012 straight connectors: 1.3 max 0-4 GHz
M39012 right angle connectors: 1.35 max 0-4 GHz
MIL-C-39012 Contact ResistanceCenter contact: 1.5 mΩ ; Outer contact: 0.2 mΩ
MIL-C-39012 Insulation Resistance: 5, 000 MΩ
MIL-C 39012 Braid to Body0.1 milliohm
MIL-C-39012 RF Leakage-55 dB min at 3 GHz
MIL-C-39012 Insertion Loss0.2 dB min at 3 GHz
