| Prod Model: |
RG59 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ISO |
| Type: |
Rg59 Coaxial Cable |
| Material Shape: |
Wire |
| Wire Core Material: |
Copper Clad Steel |
| Model: |
Rg59 |
| Brand: |
Libo |
Product Description
Detailed Product Description

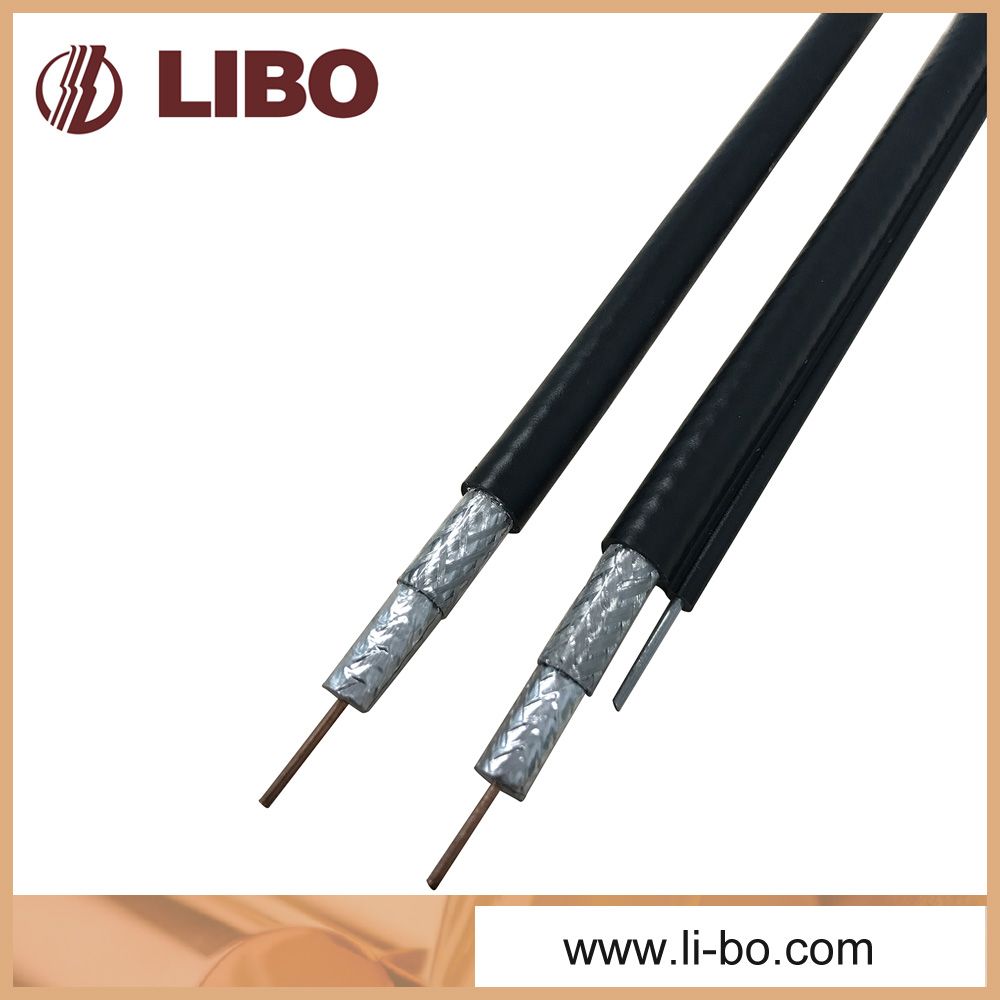

75 Ohm Braid RG59 Standard Shield Coaxial Cable for CCTV CTAV system with Black PVC Jacket
Shield:
1st shield: laminated aluminum tape bonded to the dielectric.
Nominal diameter over tape: 0.151inches (3.84mm)
2st shield: 34 AWG (0.12mm) aluminum braid wire.
Product description:
Inner conductor is high quality copper clad steel (CCS).Dielectric core is insulating grade virgin polyethylene. Bonded laminated aluminum tape, aluminum wire braiding, Black PVC jacket.
Center conductor:
20AWG copper clad steel
Nominal diameter: 0.32inches (0.81mm)
Dielectric:
Gas expanded polyethylene
Nominal diameter over dielectric: 0.144inches (3.66mm)
Flame retardant PVC Jacket:
Nominal diameter over jacket: 0.24inches (6.10mm)
Nominal jacket thickness: 0.032inches (0.81mm)
Electrical properties:
Impedance : 75±3 ohms
Velocity of propagation: 85% nominal
Attenuation@ 68OF(20oC):
@Frequency MHZ | dB/100ft. (MAX.) | dB/100 meters(MAX.) |
5MHZ | 0.86 | 2.82 |
55MHZ | 2.05 | 6.73 |
83MHZ | 2.45 | 8.04 |
187MHZ | 3.60 | 11.81 |
211MHZ | 3.80 | 12.47 |
250MHZ | 4.10 | 13.45 |
300MHZ | 4.45 | 14.60 |
350MHZ | 4.80 | 15.75 |
400MHZ | 5.10 | 16.73 |
450MHZ | 5.40 | 17.72 |
500MHZ | 5.70 | 18.70 |
550MHZ | 5.95 | 19.52 |
600MHZ | 6.20 | 20.34 |
750MHZ | 6.97 | 22.87 |
865MHZ | 7.52 | 24.67 |
1000MHZ | 8.12 | 26.64 |
Applications:
RG59 cable is used as a distribution cable for indoor CATV, CCTV systems and as a connection cable for satellite systems where lower attenuation required.
Competitive Advantage:
- Outstanding anti-interference effectiveness and excellent transmission reliabilities.
- low cost and easy to install.
- Libo cable was established in 1994, it is subsidiary of Libo group which is one of the 500 largest private enterprises in China.
- Libo cable has a stable workforce and engineering team, the F5940BV cable is with short lead-time and stable high quality.
- Libo cable is equipped with a Provincial-level Research and Development Center.
Shaoxing is a place propitious for giving birth to great men and a place endowed with the fine spirits of the universe. The towering Jishan Mountain and flowing Jianshui River nurture the prosperous civilization of this famous historic and cultural city.
About 2500 years ago, Pingshui at the foot of Kuaijishan Mountain had been the manufacturing base of bronze weapons for the ancient kingdom of Yue. Stories of Rizhu Mountain that got the name from the sword-casting in one day by Ou Yezi, as well as the Sanzao (Three Furnances) of Shangzao, Zhongzao and Xiazao, have been widely told by generations. Now, relying on the innovative technology and ideas and top-class quality, Libo Group of Shaoxing is leading the new trend of copper and aluminum processing.
Libo Group is a nationally recognized Hi-Tech Enterprise specializing in copper and aluminum processing, electronic wire and cable, machinery manufacturing, new energy materials and real estate development, including 12 subsidiaries and 2000 employees. It is one of the 500 largest private enterprises in China and has been awarded Advanced Labor and Social Security Enterprise and a Key and Major Enterprise in Shaoxing. "Libo" has been the Well-known Trademark of China.

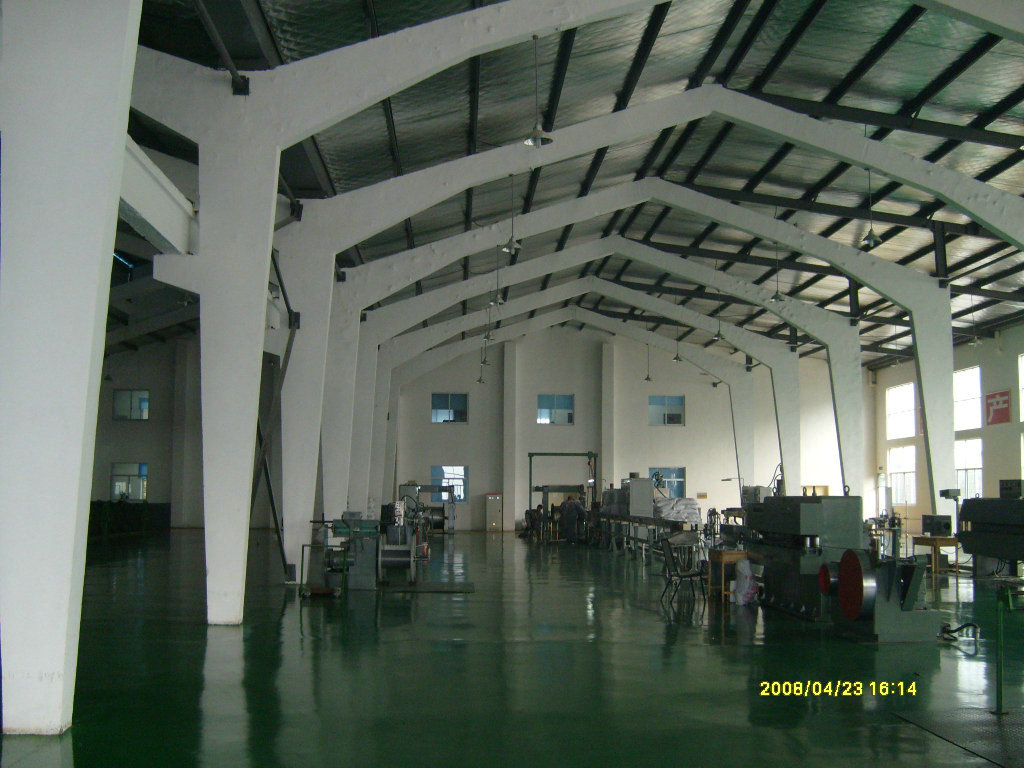

Libo Cable is subsidiary of Libo Group, it is specialized in the manufacturing of physical-foamed RF coaxial cable, seamless aluminum tube trunk cable, leaky feeder cable, solar PV ribbon and cable. With the advanced physical high-foam production lines and continuous-extruding seamless aluminum tube production lines, it now possesses the yearly capacity of 60, 000 km of coaxial cables, with the world-class quality. Products have been certified by UL and CE and exported to European and American market. The solar PV ribbon and cable makes use of the oxygen-free copper strip as the blank and it possesses the excellent electric conductivity and favorable solder ability and flexibility, which has been favored by the majority of users.
