| Prod Model: |
RG59 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Center Conductor: |
0.58mm CCS 30% |
| Dielectric: |
3.66mm Solid PE |
| Outer Conductor: |
CCA Braiding |
| Jacket: |
6.1mm PVC Jacket |
| Impedance: |
75 Ohm |
| Velocity Of Propagation: |
85% |
| Return Loss: |
20db Min (5-2300MHz) |
| Capacitance: |
54+3PF/M |
| Delivery Time: |
20 Days |
| Application: |
RF Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
UL |
| Type: |
Rg59 Coaxial Cable |
| Model: |
Rg59 Coaxial Cable |
| Brand: |
Xingfa |

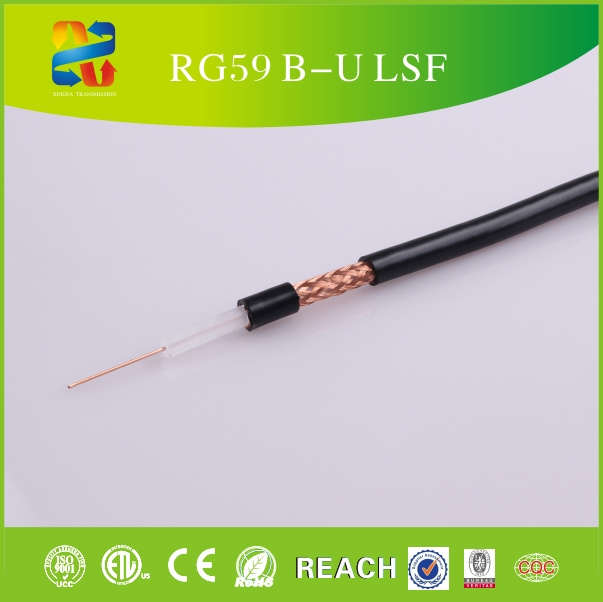

Product Description

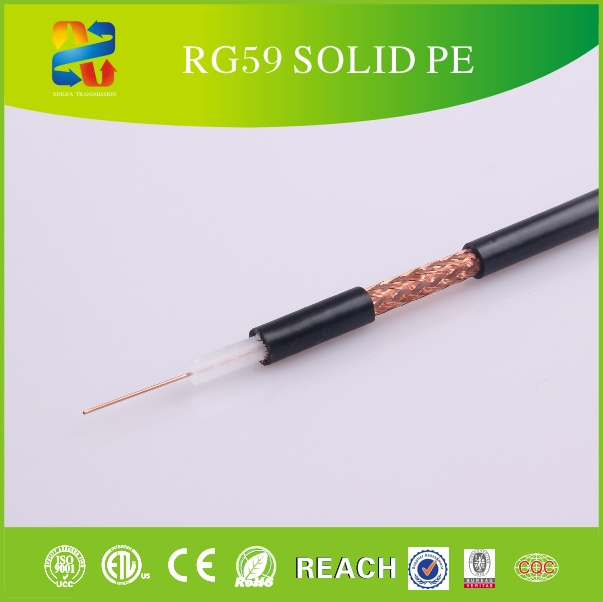

1. Product Description0.58mm CCS 30% Conductor+3.6mm Solid PE+CCA Braiding+6.1mm PVC Jacket Remarks
1) Center conductor:BC,TC,CCA,CCS
2) Al-foil:Non-bonded Al-foil, bonded Al-foil,double bonded Al-foil,and double
non-bonded Al-foil are available
3) Braiding wire:Al,BC,,TC,CCA,CCS Available
4) Braiding wire diameter:0.10,0.11,0.12,0.13,0.14,0.15,0.16mm available
5) Braiding net:32,48,64,72,80,96,120,128,144 and more available
6) Braiding coverage:Between 30-97%
7) PVC jacket of flame retardant,UL Available

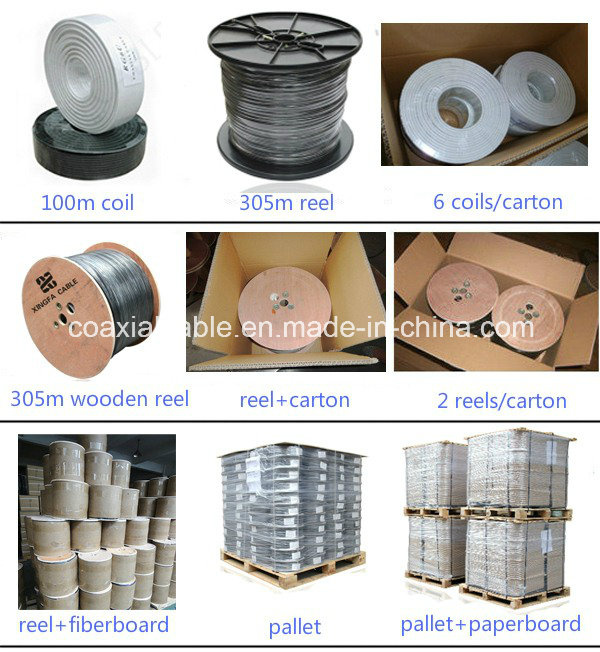

2. Packing1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
3.About US
We HANGZHOU XINGFA TRANAMISSION EQUIPMENT CO., LTD. is TOP3 cable manufacturer in Linan, Hangzhou,China. We have more than 18 years experience in the communication cable industry in China. We mainly prouduce Coaxial Cables, Lan Cables, Alarm Cables, Speaker Cables, Telephone cables and so on.

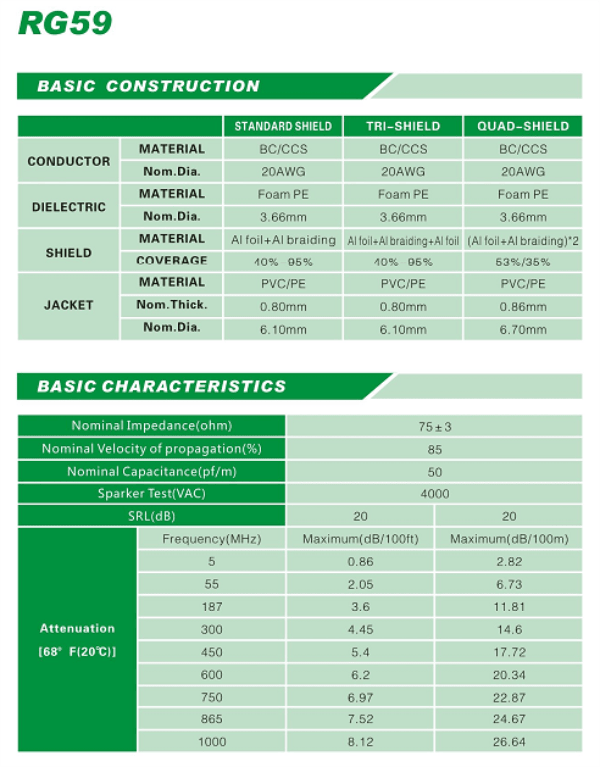

4.Other TypesBC: Bare Copper CCS: Copper Clad Steel
TC: Tinned Copper CCA: Copper Clad Aluminum
1) RG59 Coaxial Cable 75ohm Dual shield(standard)
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket
2) RG59 Coaxial Cable 75ohm Tri-shielded
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Al Foil+6.10±0.10mm PVC Jacket
3) RG59 Coaxial Cable 75ohm Quad Shield
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid +Double Al Foil+ Al Wire braiding +6.70+0.10mm PVC Jacket
4) RG59 Coaxial Cable 75ohm With Messenger
0.81±0.01mmCCSConductor+3.66±0.05mmPE Foam+Bonded Al Foil+80x0.12mm Al Alloy Wire 60% Braid+6.10±0.10mm PVC Jacket+1.02mm Messenger
5) Customers'specifications are welcomed
We Hangzhou Xingfa Technology Co., Ltd is a Pioneer manufacturer with more than 15 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables(RG59, RG6, RG11, RG213, KX6 etc. ), LAN cables(CAT5, CAT6, UTP, FTP, SFTP), alarm cables, telephone cables and the cable assembly etc, and many are approved by CE, ETL, RoHS and REACH. The current production capacity is about 300, 000, 000meters per year.
Our company is located in Lin an city, enjoying great convenience to China's Biggest Port - Shanghai Port and Ningbo Seaport. It takes 2 hours from Shanghai airport to our factory, and It just take 1 hour from Hangzhou airport to our factory.
Our company has high-tech and advanced imported equipment: Automatic number series of tandem wire drawing-insulation line, dozens of high speed braiding machines, numbers of high-quality physical foaming insulation line, also dozens of Twisting machines, Laying-up machine, and wire coil wrapping machines. With good quality and best after-sales service, our annual turnover can reach 33 million Dollars, production capacity is 300, 000Kilometers.
We have over 200 employees and 15 professional international sales team. About 5 person for Research and Development. More than 15 people for Quality Control. We carefully test cables under ISO9001-2000 quality management before shipping to the customers. And our quality is always reliable.
Most of our products are exported to Europe, America, and South-east Asia. etc. What is more, our company always devotes to developing custom cables according to clients needs. We look forward to working with you and getting mutual benefit in future.
"Quality First, Customer First" is the policy we stick to forever. Customer's most satisfaction is our biggest honor, too. All customers abroad are welcome to visit our company and make business discussion. Long-term cooperation is highly appreciated.
