75 Ohm CATV Coaxial Antenna Cable (KX8)

Name: 75 Ohm CATV Coaxial Antenna Cable (KX8)
Brand: all-electronics-online.com
SKU: 752372125
Availability: InStock
Rating: 4.6 (124 reviews)

Price:	US $ 0.01-3.0/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	5000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	KX8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
CATV Coaxial Cable:	Kx6
Inner Conductor:	Bc
Insulation:	Solid PE
Shield:	Bc/CCA Braid
Jacket:	PVC
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Copper
Insulation Material:	PE
Certification:	RoHS
Range Of Application:	Antenna Cable
Brand:	Otto Cable

Product Description

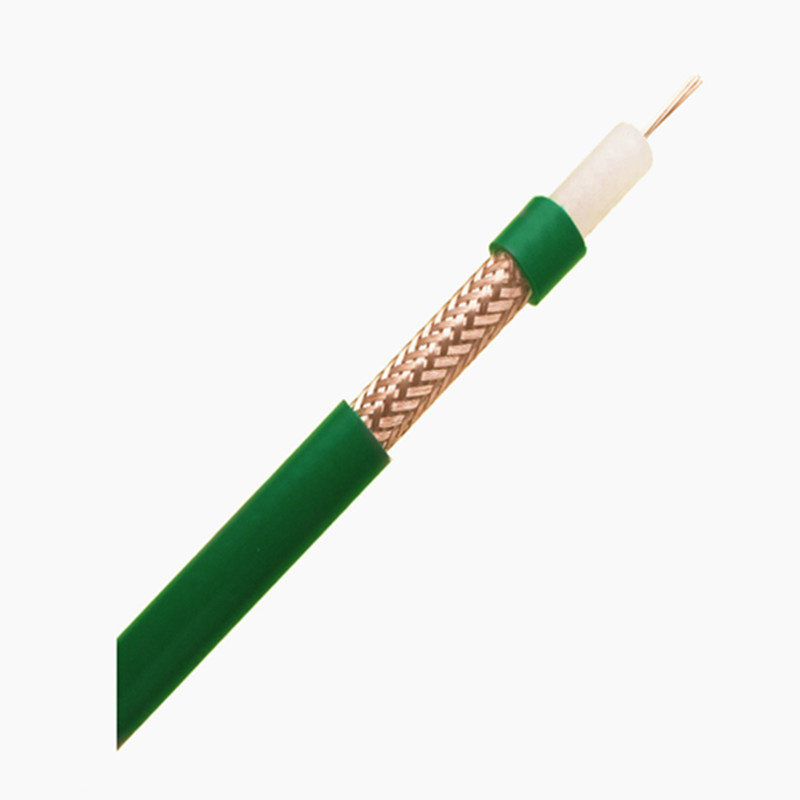

75 Ohm CATV Coaxial Antenna Cable KX8

75 Ohm KX8 CCTV coaxial cable can be fixed with F,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to existing and next generation TV network and security monitoring and control systems.

Features

1).75 Ohm data signal transmission;
2).The inner conductor is Bare Copper;
3).The insulation is solidPE;
4).Customized cable color , winding and connector, meet your different requirements;
5).RoHS compliant;

Coaxial Cable RG213
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper		7*0.4
Dielectric	Solid PE		7.25
First Shield	Bare Copper / Copper Clad Aluminum Braid		7.90
Jacket	PVC/TPE/TPU		10.20

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	75	@100MHz	6.6
Velocity of Propagation(%)	66	@200MHz	10.9
Return Loss(dB)	≥20	@400MHz	13.8
Capacitance	67	@800MHz	23.6
Shielding Effectiveness(dB)	≥90	@950MHz	26.8
Operating Temperature(ºC)	-30 to +70	@1000MHz	27.5

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
