75 Ohm Coaxial Cable Rg11 with CE RoHS ETL

Name: 75 Ohm Coaxial Cable Rg11 with CE RoHS ETL
Brand: all-electronics-online.com
SKU: 762806945
Availability: InStock
Rating: 5 (38 reviews)

Price:	US $ 0.01/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	DSC-Coaxial Cable RG11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Commscope Rg11:	Coaxial Cable Rg11
Belden Rg11:	Rg11 Messenger Cable
Application:	RF Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial Cable Rg11
Model:	Coaxial Cable Rg11

Product Description

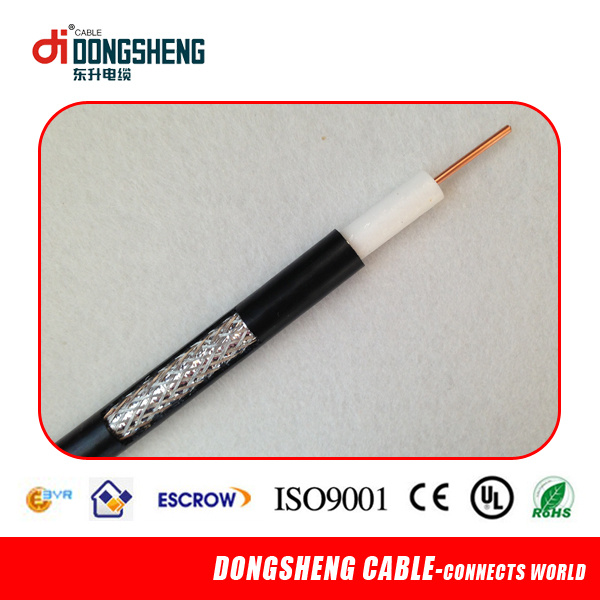

75 ohm Coaxial Cable Rg11 with CE ROHS ETL

Coaxial Cable RG11

Rg11 CCTV Cable/RG11 CATV Cable/RG11 Coaxial Cable

1. OEM is OK
2. ISO9001/CE/REACH/ETL
3. Stable quality with competitive

Specification:

Physical Dimensions
Component		Standard Shield	Tri-Shield	Quad-Shield
Conductor	Material	CCS/BC	CCS/BC	CCS/BC
Conductor	Dia. (mm)	1.63±0.01	1.63±0.01	1.63±0.01
Dielectric	Material	Foam PE	Foam PE	Foam PE
Dielectric	Dia. (mm)	7.11±0.10	7.11±0.10	7.11±0.10
Shield	Material	Al Foil + Al Braid	Al Foil + Al Braid + Al Foil	(Al Foil + Al Braid)*2
Shield	Coverage	40%-95%	40%-95%	40%-95%
Jacket	Material	PVC/PE	PVC/PE	PVC/PE
Jacket	Dia. (mm)	10.03±0.10	10.16±0.10	10.34±0.10
Messenger	Material	Galvanized Steel	Galvanized Steel	Galvanized Steel
Messenger	Dia. (mm)	1.83±0.01	1.83±0.01	1.83±0.01

Mechanical Characteristics

Minimum Breaking Strength of Messenger

166kgf

Electrical Characteristics

Impedance(Ω)			75±3
Velocity of Propagation			83%
Capacitance(pF/m)			53.1
Structural Return Loss(≥dB)			20

Attenuation [@ 68° F. (20° C)]

Frequency(MHz)			Maximum(dB/100m)
5			1.25
55			3.18
211			5.94
300			7.05
400			8.10
550			9.65
750			11.48
1000			13.88
1450			18.10
1800			20.60
2250			23.50
3000			28.90

Applications

(1) CATV-community antenna television.

(2) CCTV-closed-circuit television.

(3) DBS-direct broadcasting satellite.

Packing: 305m/wooden drum or 500m/wooden drum,
Customer's requirement also be welcomed
