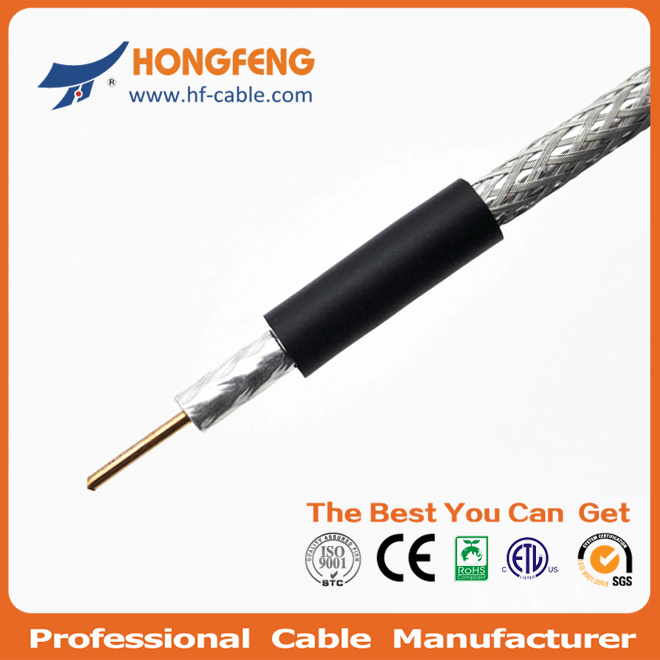

75 Ohm Outdoor Telecom CATV RF RG11 Standard Shield Communication Coaxial Cable

Name: 75 Ohm Outdoor Telecom CATV RF RG11 Standard Shield Communication Coaxial Cable
Brand: all-electronics-online.com
SKU: 701202445
Availability: InStock
Rating: 4.3 (36 reviews)

Price:	US $ 20/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket:	PVC
Jacket Color:	Black/White/Color
Impedance:	75 Ohm
Braid Shied Material:	Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Inner Conductor:	CCS, CCA, Cu
Inner Conductor Diameter:	1.63mm
Certificate:	ISO9001, Cl2/CATV/Cm UL
Dielectric:	7.11mm
Insulation Material:	Bonded/Non Bonded
Jacket Diameter:	10.03mm
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	ISO
Type:	Coaxial Cable

Product Description

1. RG11 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome

Such as: 1.63mm B. C Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 10.03PVC jacket white

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request

Coaxial Cable	Conductor	No. and Nominal Diameter of Strands#/mm	Sheathed	Nominal Overall Diameter(mm)
RG6	TCW(Tinned Copper Wire)	1/1.02	PVC	6.5
RG11	TCW	7/0.40	PVC	10.30
RG58	TCW	19/0.18	PVC	4.90
RG59	TCW	1/0.58	PVC	6.15

Attenuation Performance [@68 ° F. (20 ° C)]
Frequency(MHz)	Maximum (dB/100ft)	Maximum (dB/100m)
5	0.38	1.25
55	0.96	3.15
211	1.81	5.93
250	1.95	6.39
300	2.15	7.05
350	2.32	7.61
400	2.47	8.10
450	2.65	8.69
500	2.85	9.34
550	2.94	9.64
600	3.10	10.16
750	3.50	11.48
865	3.95	12.95
1000	4.23	13.87

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
