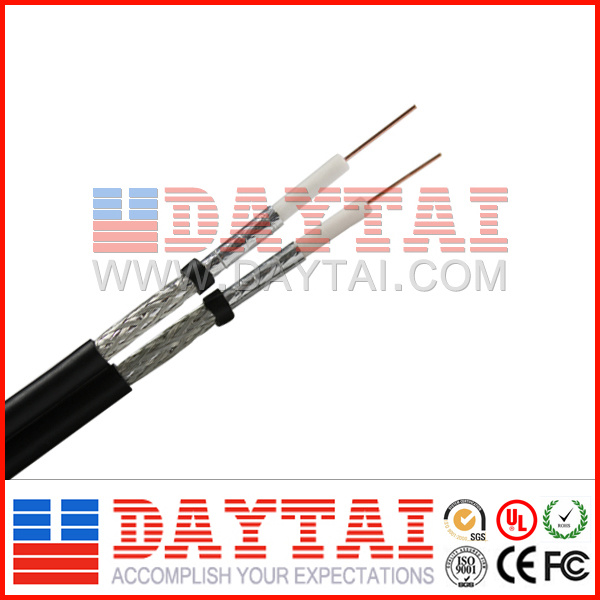

75 Ohm Rg59/F59 Double Coaxial Cable
| Price: |
US $ 0.05-2.0/Meter |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
20000/Meter |
| Pay Type: |
L/C,T/T,D/P,Paypal,Western Union |
| Prod Model: |
RG59 Coaxial Cable Double |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Conductor Nom.Dia.: |
20AWG |
| Dielectric Material: |
Foam PE |
| Dielectric Nom.Dia.: |
3.66mm |
| Shield Material: |
Al Foil+Al Braiding |
| Shield Coverage: |
40%-95% |
| Jacket Material: |
PVC/PE*2 |
| Jacket Nom.Thick.: |
0.80mm |
| Jacket Nom.Dia.: |
6.10mm |
| Application: |
Coaxial Cable |
| Certification: |
UL |
| Wire Core Material: |
Bc/ CCS |
| Brand: |
Daytai/ OEM |
| Type: |
Rg59 Coaxial Cable |
| Cover Material: |
PVC/ PE |
Product Description
1. DESCRIPTION of 75 Ohm RG59/F59 Double Coaxial Cable
* RG59 Double Coaxial Cable
* 20AWG,BC/CCS+Foam PE+Shield:Al Foil+Al Braiding+Al Foil+Coverage:40%~95% AL wire+PVC/PE*2
* PACKING:305M Wood Spool
2. BASIC CONSTRUCTION
|
| STANDARD SHIELD |
CONDUCTOR | MATERIAL | BC/CCS |
| Nom.Dia. | 20AWG |
DIELECTRIC | MATERIAL | Foam PE |
| Nom.Dia. | 3.66mm |
SHIELD | MATERIAL | Al foil+Al braiding |
| COVERAGE | 40%-95% |
JACKET | MATERIAL | PVC/PE |
| Nom.Thick. | 0.80mm |
| Nom.Dia. | 6.10mm |
3. Electronic Performance@68ºF,(20ºC)
| ITEM | Frequency (MHz) | Maximum (dB/100ft) | Maximum (dB/100m) |
| Attenuation | 5 | 0.38 | 1.25 |
| 55 | 0.96 | 3.15 |
| 83 | 1.18 | 3.87 |
| 187 | 1.75 | 5.74 |
| 211 | 1.90 | 6.23 |
| 250 | 2.05 | 6.72 |
| 300 | 2.25 | 7.38 |
| 350 | 2.42 | 7.94 |
| 400 | 2.60 | 8.53 |
| 450 | 2.75 | 9.02 |
| 500 | 2.90 | 9.51 |
| 550 | 3.04 | 9.97 |
| 600 | 3.18 | 10.43 |
| 750 | 3.65 | 11.97 |
| 865 | 3.98 | 13.05 |
| 1000 | 4.35 | 14.27 |
| 1450 | 5.42 | 17.78 |
| 1750 | 6.10 | 20.01 |
| SRL (dB) | 20 |
| Sparker Test (VAC) | 4000 |
| Nominal Capacitance (PF/M) | 50 |
| Nominal Velocity of Propagation (%) | 85 |
| Nominal Impedance (Ω) | 75 |
4. FAQ
Q1: What's the MOQ, can i buy 1 piece the first time?
Re:The MOQ of catv coaxial cable is 20KM.
Q2: What's delivery time?
Re: The general delivery time is 4-6days after order confirmed, it depends on the order quantity
Q3: Can you send me a free sample?
Re: We are willing to send you free sample, if you would like to pay the shipping costs
Q4: What's your payment terms?
Re: 30% in advance, and 70% before shipment
Q5: What's the payment method?
Re: We accept T/T, Western Union, L/C
Q6: How to ship the items to me?
Re: Courier (DHL, TNT, FEDEX, UPS, EMS), Airfreight, Ocean Ship are available.
