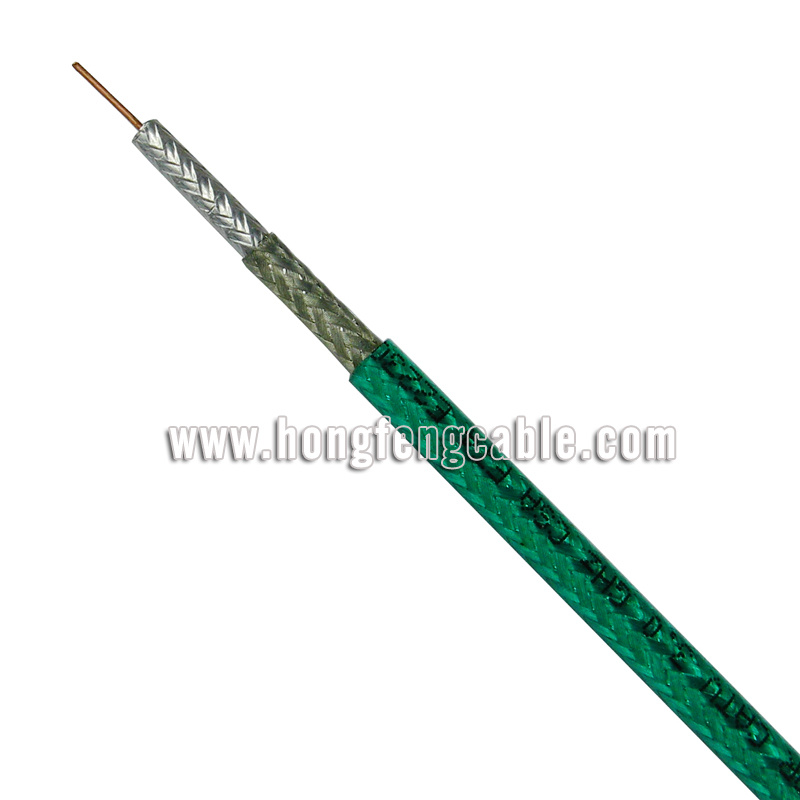

75 Ohm Telecom CATV RF Rg59 Standard Shield Communication Coaxial Cable

Name: 75 Ohm Telecom CATV RF Rg59 Standard Shield Communication Coaxial Cable
Brand: all-electronics-online.com
SKU: 701201125
Availability: InStock
Rating: 4.3 (91 reviews)

Price:	US $ 20-35305m
Trade Terms:	FOB
Min Order:	10km
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket:	PVC
Jacket Color:	Black/White/Color
Impedance:	75 Ohm
Braid Shied Material:	Bc, Tc, CCA, CCS, Al-Mg(60%-95%)
Inner Conductor:	CCS, CCA, Cu
Inner Conductor Diameter:	0.81mm
Certificate:	ISO9001, Cl2/CATV/Cm UL
Dielectric:	3.66mm
Insulation Material:	Bonded/Non Bonded
Jacket Diameter:	6.1mm
Certification:	ISO
Cover Material:	PVC
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Application:	Coaxial Cable
Type:	Coaxial Cable

Product Description

1. RG59 Specifications:
1) Inner Conductor: CCS, CCA, CU
2) Dielectric: Foam PE or Solid PE
3) Al Foil: Bonded, Non-bonded, Single, Double
4) Braiding Wire Material: Cu, Al-Mg, TC
5) Braiding Wire Diameter: 0.12mm, 0.15mm, 0.16mm
6) Braiding Net: 48, 64, 72, 80, 96, 128 and more
7) Coverage: 40%, 50%, 60%, 80%, 90% and more
8) PVC Degree: 60, 65, 68, 70, 75
9) Jacket: PE or PVC
10) OEM and Customer's designation are welcome

Such as: 0.81mm B. C Conductor; Foamed PE Dielectric; Bonded Al Foil& 64/0.12mm Al braid; 6.1 PVC jacket white

2. Package:
1) Packing Lengths: 100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request

Data	RG59	RG59-Tri	RG59-Quad
Impedance(ohm)	75± 3	75± 3	75± 3
Capacitance(pF/m)	52± 2	52± 2	52± 2
Velocity Ratio	85%	85%	85%
Insulation Resistance(MΩ /km)	5000	5000	5000
Return Loss(dB)
1-1000MHz	≥ 23dB	≥ 23dB	≥ 23dB
1000-3000MHz	≥ 20dB	≥ 20dB	≥ 20dB
Attenuation[@20° C68° F]
Frequency(MHz)	5 50 200 400 800 1000 1350 1750 2150 3000
Nom Value(dB/100m)	1.7 5.2 10.2 14.8 22.5 25 30.5 33.5 37.5 46.5
Screening attenuation
1-1000MHz	≥ 90dB	≥ 100dB	≥ 110dB

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
