75 Ohm Telecom Coax Cable (1.5C-2V)

Name: 75 Ohm Telecom Coax Cable (1.5C-2V)
Brand: all-electronics-online.com
SKU: 752213545
Availability: InStock
Rating: 4.6 (105 reviews)

Price:	US $ 0.01-1.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	1.5C-2V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc/ CCS
Insulation:	Solid PE/ XLPE
Shield:	Bc/Tc Braid
Jacket:	PVC
Application:	RF Cable
Cover Material:	PVC
Certification:	RoHS
Conductor Material:	Bc/CCS
Type:	Coaxial
Wire Core Material:	Bc/CCS

Product Description

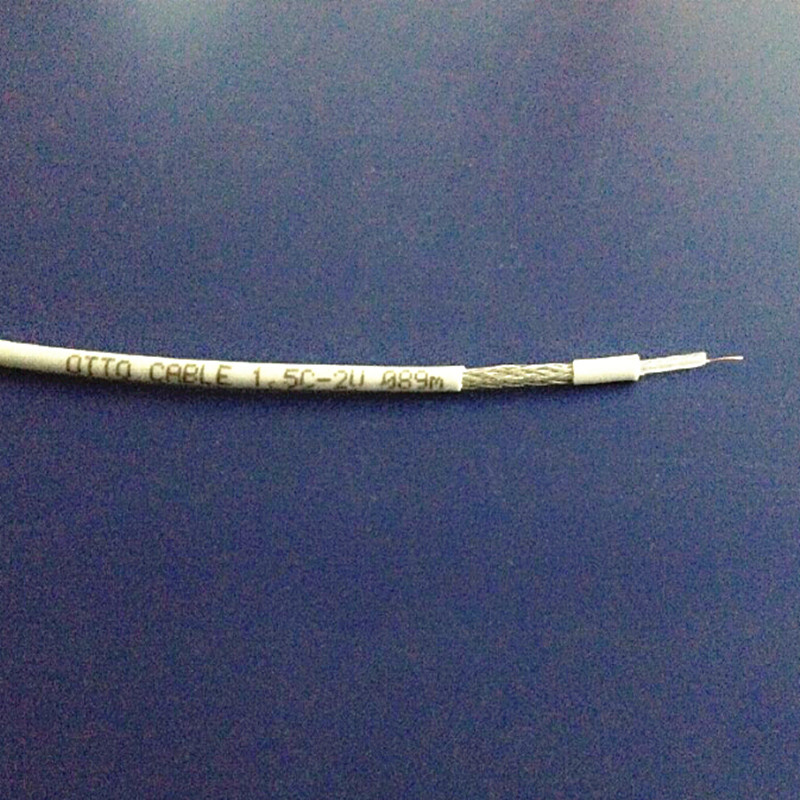

75 Ohm Telecom Coaxial Cable 1.5C-2V// Car Antenna Cable

75 Ohm 1.5C-2V coaxial cable can be fixed with various connectors,such as F,TV,BNC,TNC connectors.These versatile cable assemblies with various lengths have been widely applied to car radio and other communication systems.
Features
1).75 Ohm data signal transmission;
2).Special insulation materials,providing good electrical property and welding performance;
3).Small diameter is ideal for tight fit applications;
4).Common size cable can be easily terminated;
5).REACH & RoHS compliant;

75 Ohm Telecom Coaxial Cable 1.5C-2V
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper/ Copper Clad Steel		0.26
Dielectric	Solid PE / XLPE		1.52
First Shield	Bare Copper / Tinned Copper/ CCA Braid		1.90
Jacket	PVC / LSZH/PE		2.80

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	75	@10MHz	11.0
Velocity of Propagation(%)	66	@17MHz	11.5
Return Loss(dB)	≥20	@70MHz	28.5
Capacitance	69	@200MHz	49.0
Shielding Effectiveness(dB)	≥90	----	----
Operating Temperature(ºC)	-30 to +70	----	----

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
