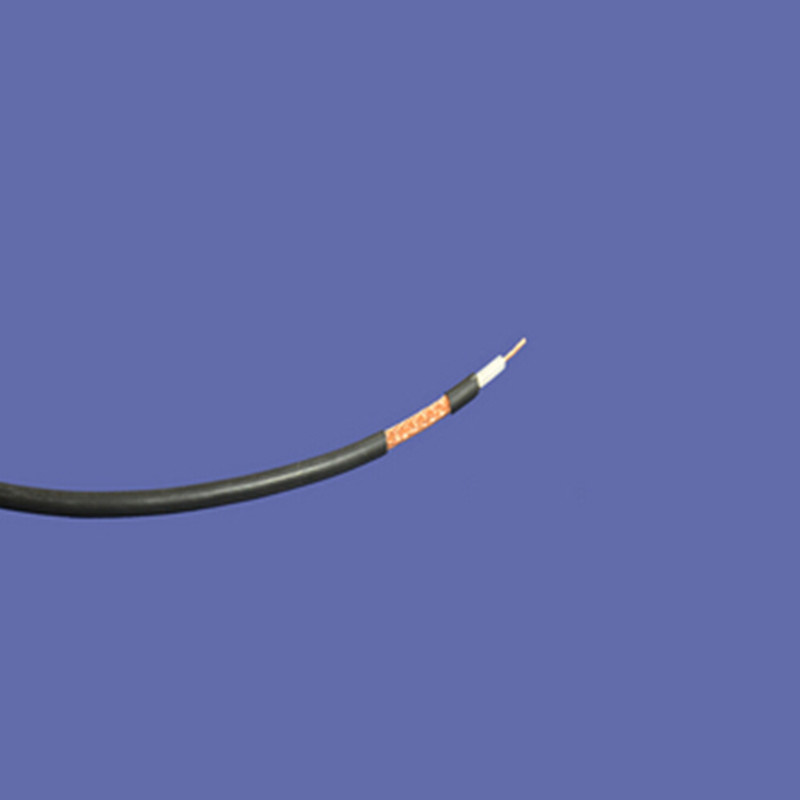

75 Ohm Telecom Coaxial Cable (BT3002)

Name: 75 Ohm Telecom Coaxial Cable (BT3002)
Brand: all-electronics-online.com
SKU: 739631485
Availability: InStock
Rating: 4.4 (61 reviews)

Price:	US $ 0.01-1.5/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BT3002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bc
Insulation:	Foam PE
Shield:	Tc/Bc Braid
Jacket:	PVC/Lszh
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	Coaxial

Product Description

Telecom Coaxial Cable BT3002 Single Core

BT3002 is 75 Ohm Telecommunication coaxial cable, specially designed for digital telephone exchange and interconnection of telecommunication equipment, in a range of telecommunication systems.

Telecom Coaxial Cable BT3002 Single Core
Construction
Item	Material		Diameter(mm)
Inner Conductor	Bare Copper		0.31
Dielectric	Solid PE		1.95
First Shield	Bare Copper / Tinned Copper Braid		2.35
Second Shield	Bare Copper / Tinned Copper Braid		2.75
Jacket	PVC / LSZH/PE		3.55

Electrical Characteristics		Attenuation @20ºC (dB/100M)
Impedance(Ω)	75	@4MHz	4.5
Velocity of Propagation(%)	66	@5MHz	4.8
Return Loss(dB)	≥20	@17MHz	9.2
Capacitance	78.4	@70MHz	18.7
Shielding Effectiveness(dB)	≥90	@100MHz	22.5
Operating Temperature(ºC)	-30 to +70	@200MHz	32.0

Remarks:
1). 8 cores and 16 cores of BT3002 are also available.
2).Regular color of cable jacket: white, grey, black.... can also be made as per cusotmer's reuquirements.
3).Packing:1000M/Reel, can also be packed as per customer's requirements.
4).Lead time: Within 2 weeks.

Otto Cable Technology Co., Ltd. is a Hi-Tech enterprise specializes in researching, manufacturing and selling 50 Ohm & 75 Ohm coaxial cables, cable assemblies and other related products.

After decades of practical experience and technical skills, we have been very professional on these products, which covers:

1). Wireless RF Transmission coaxial cable, 50 Ohms RG MIL-C-17 and JIS Spec coaxial cables, mainly applying to 4G, 3G, GSM, and CDMA telecommunication system, digital microwave communication system, DAS, GPS and other car antenna system.

50 Ohm coaxial cable assemblies/pigtails/jumper cables/pre-made coax cables usually fixed with various connectors, such as N, SMA, SMB, MCX, MMCX, TNC, BNC, UHF...

2). 75 Ohms RG MIL-C-17 Spec coaxial cables, CCTV, CATV-MATV coaxial cable, satellite coaxial cable, video coaxial cable, which are serving for existing and next generation TV network and security monitoring and control systems.

Besides of the standard coaxial cables, customer required cables and value-added services are also available in our company.
