75 Ohm Trunk Cable P3 500 Tfc Coaxial Cable

Prod Model:	P3 500
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Type:	Coaxial
Cable Standard:	Tfc
Certficates:	CE/RoHS/ISO9001/UL/ETL
Product Name:	P3 500 Jcam Cable
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PE
Certification:	UL
Type:	Coaxial Cable

Product Description

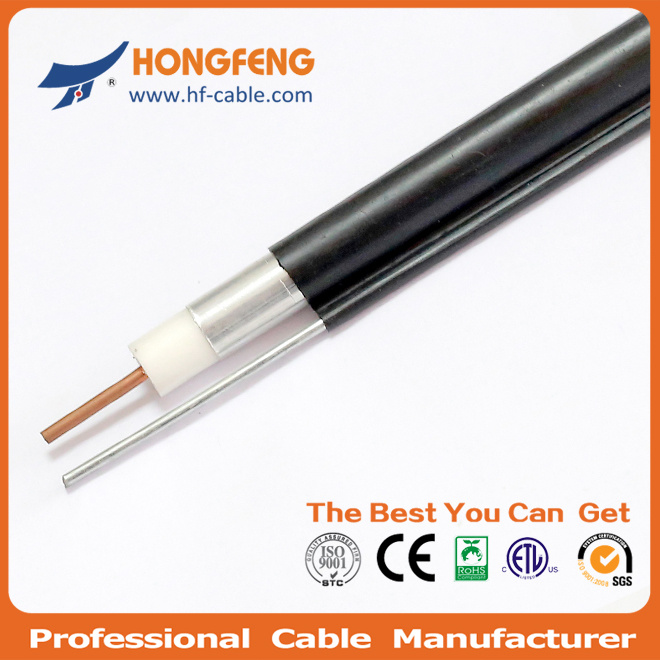

CATV trunk cable JCA JCAM P3 500 coaxial cable

Description

*Solid aluminum tube swaged onto dielectric code

*fully bonded Copper clad, center conductor PE jacket messenger

*Center Conductor: CCA, Φ 0.109"(2.77mm)

*Dielectric: Micro-celluar Foam PE, Φ 0.45" (11.43mm)

*Shield: Solid aluminum tube

*out conductor thickness: 0.024"(0.61mm)

*Jacket: PE jacket diameter: Φ 0.056(14.22mm)

*thickness of out jacket: 0.030(0.76mm)

Mechanical characteristic

Minimum Bend Radius: 10.2mm(0.253")

Maximum Pulling Tension: 10.2mm(0.253")

Electrical performance

Capacitance: 15.3± 0.1 pF/ft, (50± 3 nF/km)

Impedance: 75± 3 ohms

Velocity of Propagation: 87% (Nominal)

Maximum DC Loop Resistanc1.72 ohms/1000 ft (5.64 ohms/km)

Attenuation: @68 F(20° C)



Main products:
1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg179, rg213, rg214, rg316, rg393, rg402, etc.;

2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, 3D-FB, 5D-FB, 8D-FB, 10D-FB, etc.;

3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;

4) TRUNK Cable: P3 412, 500, 540, 625, 750, 850;

5) LMR SERIES: LMR200, LMR400, LMR600;

6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;

7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5CRG59, BT3002.

Frequency(MHz)	dB/100ft. (max. )	dB/100m(max. )
5	0.16	0.52
55	0.54	1.77
211	1.09	3.58
450	1.63	5.35
550	1.73	5.67
750	2.61	7.09
865	2.34	7.68
1000	2.52	8.27
