Hangzhou Hongfeng Cable Co., Ltd. >> 75 Ohmtrunk Coaxial Cable Qr860 JCA

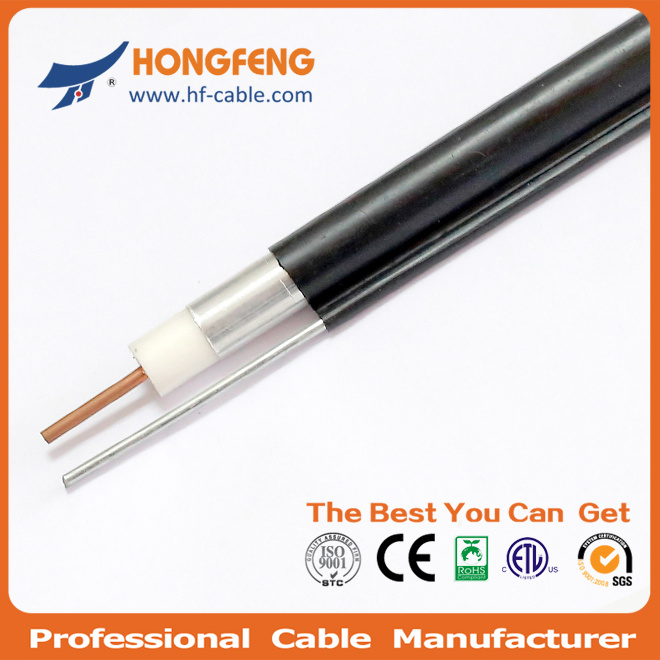

75 Ohmtrunk Coaxial Cable Qr860 JCA

75 Ohmtrunk Coaxial Cable Qr860 JCA
Price: Negotiable/Meter
Trade Terms: FOB,CFR,CIF
Min Order: 5000/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Contact Supplier
Showroom Product Company Profile
Prod Model: QR860
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Laying: Trunk/Main Line
Cable Weight: 319kgs/Km
Shipping Weight: 439kgs/Km
Cable Diameter: 24.38mm
Application: Coaxial Cable
Conductor Material: BC/CCS/CCA/TC/CU/CCAG
Cover Material: PVC
Certification: UL
Type: Coaxial Cable
Model: Coaxial Cable
Brand: Hf

Product Description

Trunk coaxial Cable QR540
1) Basic Construction
Center Conductor: 3.15mm Solid Copper/Copper Clad Aluminum
Dielectric: 13.03mm Foam PE
Outer Conductor: 0.25-0.6mm Aluminum Tube
Jacket: 15.49mm PVC / PE
Jacket Thick.: 0.89mm
Jelly/APD Per Customer' Special Requirement
Diameter of Steel Messenger: 2.77mm

2)Basic Characteristics
Nominal Impedance: 75± 3 Ohm
Nominal Capacitance: 55± 3pF/m
Nominal Velocity of Propagation: 88%
Sparker Test: 4000VAC
SRL: 30-470: 20dB
470-1000: 20dB

Component
Inches
mm

Nominal  Center  Conductor  Diameter
0.203		5.16

Nominal  Diameter  Over  Dielectric
0.828
21.03

Nominal  Diameter  Over  Outer  Conductor
0.860
13.72

Nominal  Outer  Conductor  Thickness
0.016
0.41

Nominal  Diameter  Over  Jacket
0.960
24.38

Nominal  Jacket  Wall  Thickness
0.050
1.27

Messenger  Version

Diameter  of  Steel  Messenger
0.188
4.78

Dual  Jacket  Version

Nominal  Jacket  Wall  Thickness  of  Outer  Jacket
0.031
1.22

Nominal  Diameter  Over  Outer  Jacket
1.026
26.16

Armored  Versions

Nominal  Diameter  Over  Corrugated  Armor
1.030
2616

Nominal  Armor  Thickness
0.010
0.20

Nominal  Diameter  Over  Outer  Jacket
1.110
28.19

Nominal  Thickness  of  Outer  Jacket
0.040
1.02
Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
