750 G Electronic Scale Load Cell

Name: 750 G Electronic Scale Load Cell
Brand: all-electronics-online.com
SKU: 829829625
Availability: InStock
Rating: 4.6 (126 reviews)

Price:	US $ 3/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QL-56

Product Description

Product Discription:

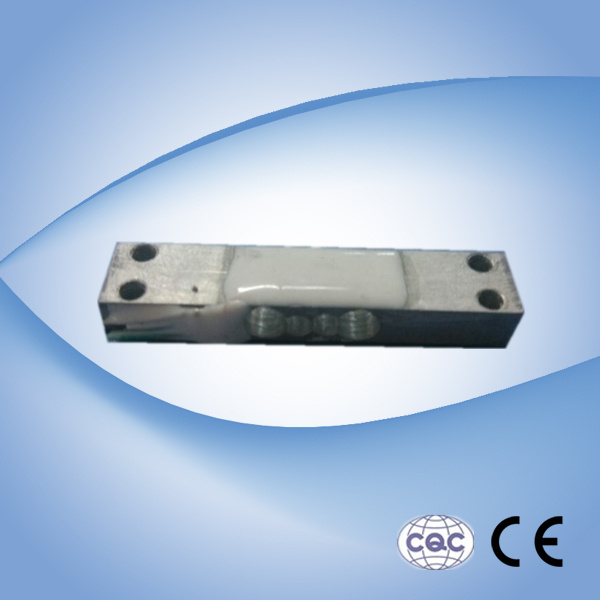

QL-56A mini load cells are available in the capacities from 300 g to 5kg. Aluminum alloy construction with parallel beam type. Silicon adhesive sealed, surface anodized and anti-corrosion. Integral structure and easy installation.

Features:

1 Capacity :300 g to 5kg

2. High accuracy 0.05%FS

3. Aluminum alloy parallel beam load cell

4. Integral installation

Specifications:
capacity	Kg	0.3...1.2
safe overload	%FS	150
rated output	mV/V	0.9 ± 0.2
excitation voltage	Vdc	≤10
combined error	%FS	0.02
zero unbalance	mV/V	± 0.1
non-linearity	%FS	± 0.1
hysteresis	%FS	± 0.1
repeatability	%FS	± 0.1
creep	(5min) %FS	± 0.05
input resistance	Ω	1000 ± 10
output resistance	Ω	1000 ± 10
insulation resistance	M Ω	≥ 2000 @ 50 Vdc
operating temperature range	ºC	0 ~ +50
temperature coefficient of SPAN	%FS/10ºC	± 0.1
temperature coefficient of ZERO	%FS/10ºC	± 0.1

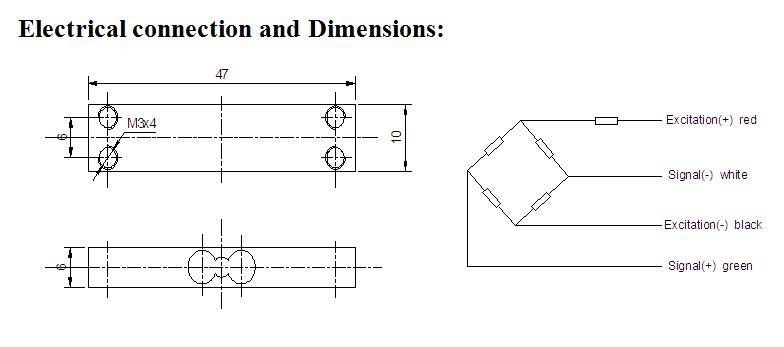

Electrical connection:

Excitation+ red Excitation- black Signal+ green Signal- white

Four -color single line

Cable length: 120mm

Cable diameter: 0.6±0.1 mm
