| Prod Model: |
EP3000 |
| Capacity: |
1kw to 6kw |
| Wave: |
Pure Sine Wave |
| DC: |
12V/24V/48V |
| Input Voltage: |
155-265VAC for 230VAC, 90-120VAC for 120VAC |
| Input Frequency: |
40-80Hz |
| Charge Current: |
70A Max |
| Remote Control: |
Option |
| RS232: |
Option |
| Display: |
LCD+LED |
| Power Source: |
Electric Power |
Product Description

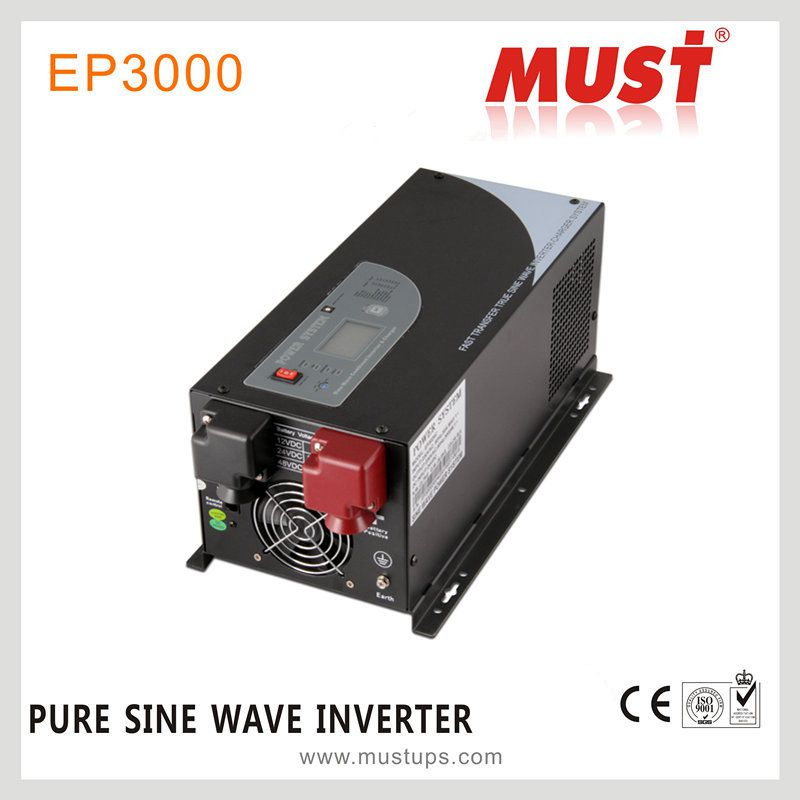

75A Max Huge Charge Current Pure Sine Wave Power Inverter
1. 1kw~6kw optional, 12v / 24v / 48vdc optional
2. Max. charge current 65A.
3.Pure sine wave.

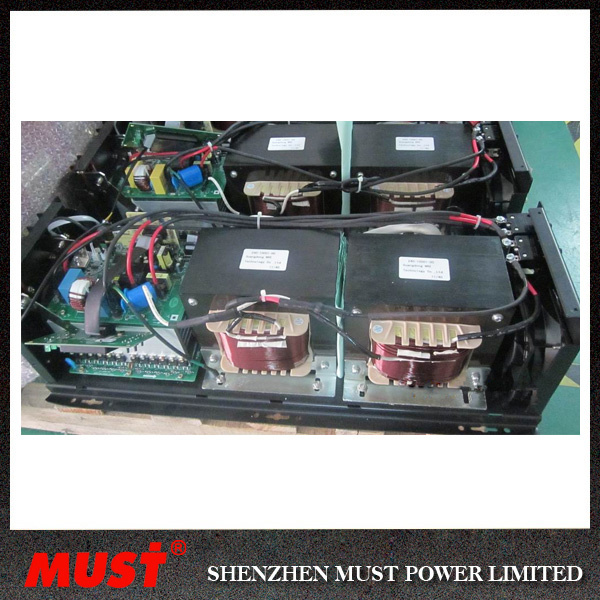

4. Inbuilt pure copper transformer
5. Support inductive load
6. Automatic three-stage battery
Charger (bulk, absorption, float)
7. With 120cm battery cable
8. Support generator 1hp/2hp/3hp
9. Support solar system

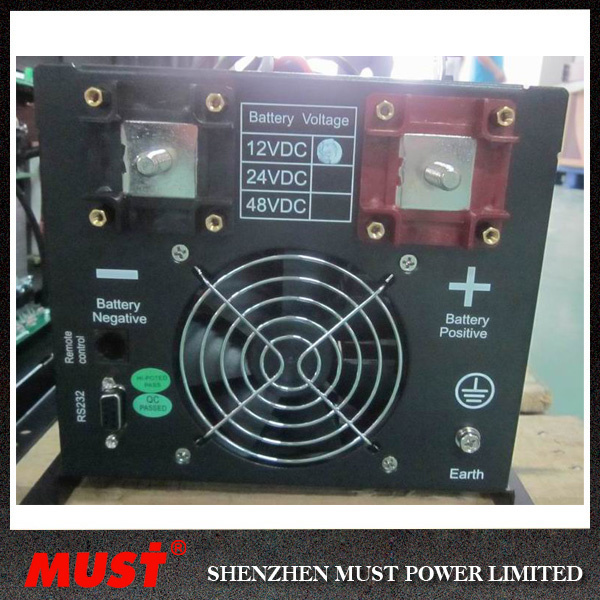

10. Remote control / RS232 optional
11. CE/ SONCAP/IEC/ISO9001 certificate
12. Charge current is adjustable 25%,50%,75%.100%
More specification details:
| MODEL | EP30-1KW | EP30-1.5KW | EP30-2KW | EP30-3KW | EP30-4KW | EP30-5KW | EP30-6KW |
| Default Battery System Voltage | 12V | 24V | 12V | 24V | 12V | 24V | 12V | 24V | 48V | 24V | 48V | 24V | 48V | 24V | 48V |
INVERTER
OUTPUT | Reted Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| Surge Rating (20ms) | 3000VA | 4500VA | 6000VA | 9000VA | 12000VA | 15000VA | 18000VA |
| Capable Of Starting Electric Motor | 1HP | 2HP | 3HP |
| Waveform | Pure sine wave/ same as input (bypass mode) |
| Nominal Output Voltage RMS | 100V/110V/120VAC 220V/230V/240VAC | 220V/230V/240VAC |
| Output Voltage Regulation | ±10% RMS |
| Output Frequency | 5OHz/60Hz±0.3 Hz |
| Inverter Efficiency(Peak) | >88% |
| Line Mode Efficiency | >95% |
| Power Factor | 1.0 |
| Typical Transfer Time | 10ms(max) |
AC
INPUT | Voltage | 120VAC/230VAC |
| Selectable Voltage Range | 96~132VAC 155~280VAC(For Personal Computers) | 155~280VAC(For Computers) |
| Frequency Range | 50Hz/60Hz (Auto sensing) 40~80Hz |
| BATTERY | Minimum Start Voltage | 10.OVDC/10.5VDC for12VDC mode (*2 for 24VDC, *4 for 48VDC)
|
| Low Battery Alarm | 10.5VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)
|
| Low Battery Cutoff | 10.0VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)
|
| High Voltage Alarm | 16.0VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)
|
| High Battery Voltage Recover | 15.5VDC±0.3V for12VDC mode (*2 for 24VDC, *4 for 48VDC)
|
| Idle Consumption-Search Mode | <25W when power saver on
|
| CHARGER | Output Voltage | Depends on battery type
|
| Charger AC Input Breaker Rrating | 10A | 30A | 40A |
| Overcharge Protection S.D. | 15.7VDC for 12VDC mode (*2 for 24VDC, *4 for 48VDC)
|
| Maximum Charge Current | 35A | 20A | 45A | 25A | 65A | 35A | 75A | 45A | 30A | 65A | 35A | 70A | 40A | 75A | 50A |
| BTS | Continuous Output Power | Yes Variances in charging voltage & S.D. voltage base on the battery temperature
|
BYPASS
&
PROTECTION | Input Voltage Waveform | Sine wave (grid or generator)
|
| Nominal Input Frequency | 50Hz or 60Hz
|
| Overload Protection (SMPS Load) | Circuit breaker
|
| Output Short Circuit Protection | Circuit breaker
|
| Bypass Breaker Rating | 10A | 30A | 40A |
| Max Bypass Current | 10Amp | 30Amp | 40Amp |
MECHANICAL
SPECIFICATIONS | Mounting | Wall mount |
| Dimensions (W*H*D) | 185*160*423 | 185*160*600 |
| Net Weight (kg) | 15.7 | 18 | 16.2 | 15.5 | 20.3 | 19.1 | 25.3 | 23.7 | 24 | 37.2 | 34.8 | 44.2 | 44 | 44.2 | 44 |
| Shipping Dimensions(W*H*D) | 315*300*570 | 319*288*755 |
| Shipping Weight (kg) | 18.3 | 20.6 | 19 | 18.1 | 23.1 | 21.8 | 28.1 | 26.5 | 26.5 | 40.8 | 38.4 | 48 | 47.8 | 48 | 47.8 |
| OTHER | Operation Temperature Range | 0°C to 40°C |
| Storage Temperature | -15°C to 60°C |
| Audible Noise | 60dB MAX |
| Display | LED+LCD |
| Standard Warranty | 1 year
|
