0.75kw-630kw Vector Motor Controller (SY8600-011G-4)

Name: 0.75kw-630kw Vector Motor Controller (SY8600-011G-4)
Brand: all-electronics-online.com
SKU: 799370345
Availability: InStock
Rating: 4.8 (125 reviews)

Price:	US $ 60-7000/Set
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SY8600-011G-4
Product Name:	Frequency Inverter
Communication:	RS485 Modbus
Carrier Frequency:	1.0~15.0 kHz
Output Power:	11kw
Output Current:	24A
Size:	210337191 mm
Weight:	8.7kgs
Warranty:	1 Year
Application:	High Frequency Converter Transducer
Output Type:	Triple
Principle Of Work:	Vector Control Transducer
Switch Mode:	High Carrier Frequency PWM Control
Main Circuit Type:	Current
Brand:	Sanyu

Product Description

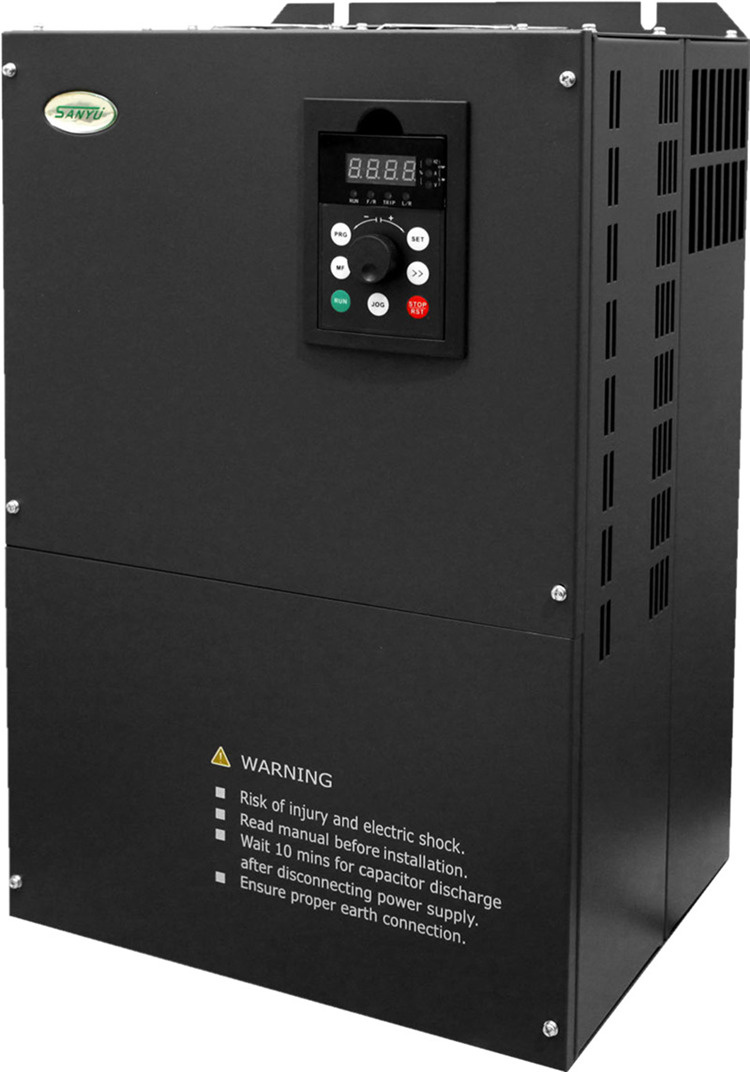

Sanyu SY8600 series 0.75kw-630kw Vector Frequency Converter (SY8600-011G-4)

1. Product Show
SY8600 380V/3phase, Variable frequency inverter, AC inverter, frequency converter, motor controller, VFD, VSD.

2. Product description

3. Product parameters

Model	Applicable motor (KW)	Rated input current (A)	Rated output current (A)	Dimension *(WHD mm)*	G.W. (KG)	Input voltage
SY8600-0R7G-S2	0.75	9	4.5	119185159	2.2	220V±15% Single Phase
SY8600-1R5G-S2	1.5	14.5	7	119185159	2.2
SY8600-2R2G-S2	2.2	23	10	119185159	2.2
SY8600-0R4G-2	0.4	5.5	2.6	119185159	2.2	220V±15% 3Phase
SY8600-0R7G-2	0.75	9	4.5	119185159	2.2
SY8600-1R5G-2	1.5	14.5	7.5	119185159	2.2
SY8600-2R2G-2	2.2	23	10	119185159	2.2
SY8600-0R7G-4	0.75	3.5	2.5	119185159	2.2	380V±15% 3Phase
SY8600-1R5G-4	1.5	6.2	3.8	119185159	2.2
SY8600-2R2G-4	2.2	9.2	5.5	119185159	2.2
SY8600-004G/5R5P-4	4/5.5	15/19.5	9/11	119195169	2.6
SY8600-5R5G/7R5P-4	5.5/7.5	21/26	13/17	150258184	4.0
SY8600-7R5G/011P-4	7.5/11	26/39	17/22	150258184	4.0
SY8600-011G/015P-4	11/15	39/50	24/30	210337191	8.7
SY8600-015G/018P-4	15/18.5	50/60	30/37	210337191	8.7
SY8600-018G/022P-4	18.5/22	60/70	39/45	285501230	19
SY8600-022G/030P-4	22/30	70/86	45/60	285501230	19
SY8600-030G/037P-4	30/37	86/104	60/75	285501230	19
SY8600-037G/045P-4	37/45	104/124	75/90	352585274	35
SY8600-045G/055P-4	45/55	124/150	91/110	352585274	35
SY8600-055G/075P-4	55/75	150/190	112/150	352585274	35
SY8600-075G/090P-4	75/90	201/235	150/176	404680303	48
SY8600-090G/110P-4	90/110	160/196	176/210	485760316	66
SY8600-110G/132P-4	110/132	196/232	210/253	485760316	66
SY8600-132G/160P-4	132/160	232/282	253/300	533830372	94
SY8600-160G/185P-4	160/185	282/330	304/340	533830372	94
SY8600-185G/200P-4	185/200	330/352	340/380	6381402374	175
SY8600-200G/220P-4	200/220	352/385	380/420	6381402374	175
SY8600-220G/250P-4	220/250	385/460	426/470	6381402374	175
SY8600-250G/280P-4	250/280	460/491	470/520	7001627460	253
SY8600-280G/315P-4	280/315	491/552	520/600	7001627460	253
SY8600-315G/350P-4	315/350	552/624	585/640	7001627460	253
SY8600-355G/400P-4	355/400	624/704	650/690	8001772460	300
SY8600-400G/450P-4	400/450	704/792	730/775	8001772460	300
SY8600-450G/500P-4	450/500	792/835	830/860	8001772460	300

4. Application
Widely used in:
Metallurgy, Chemical, Petroleum, Textile, Electric power, Building materials, Coal, Plastics, Printing and Dyeing, Cable, Washing, Water supply, Heating, etc

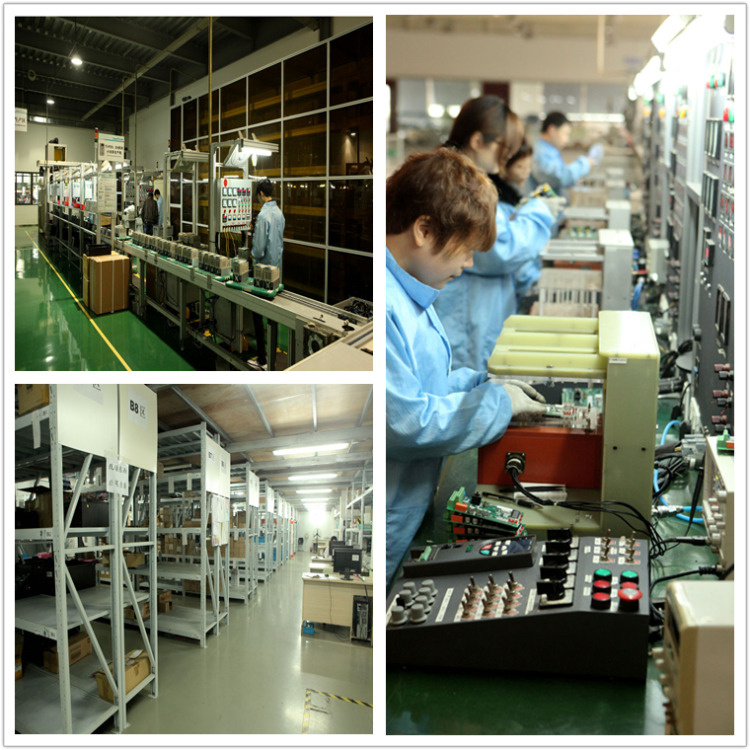

5. Factory show

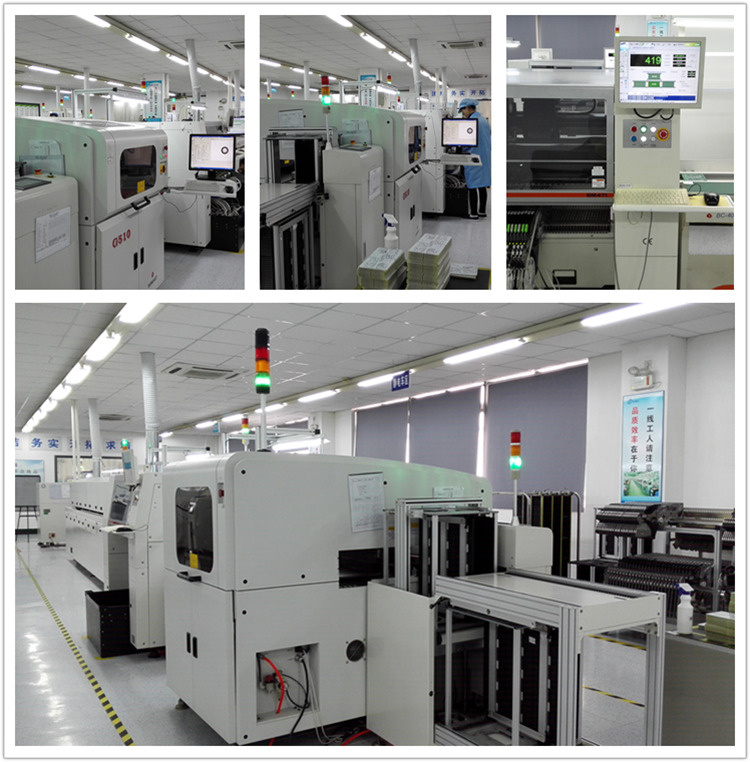

PCB processing plant

Shanghai Sanyu Electronics Equipment Co., Ltd.Was founded in 2000, with parent company Japan Sanyu Corporation (Asia).We are a leading manufacturer of AC drives, automation products and inverter welding machines in Shanghai, China.

SY-8000, SY7000, SY8600 vector control inverter are our key patent products.We produce high quality and outstanding performance AC drives.We have developed full range AC drives to meet the most needs of customers.Sanyu drives have been widely used in many industries from low end market to high end market.

In China, there are hundreds of authorized distributors and technicians who are ready to serve our customers at any time.Currently, Sanyu drives have been exported to more than 30 countries.Depth of industry experience combined with innovative design talents in diverse technologies have ensured that Sanyu will play an important role in automation and drive market all over the world.We are becoming a world-renowned professional AC drives and inverter system supplier.

Let's make a bright future together!
