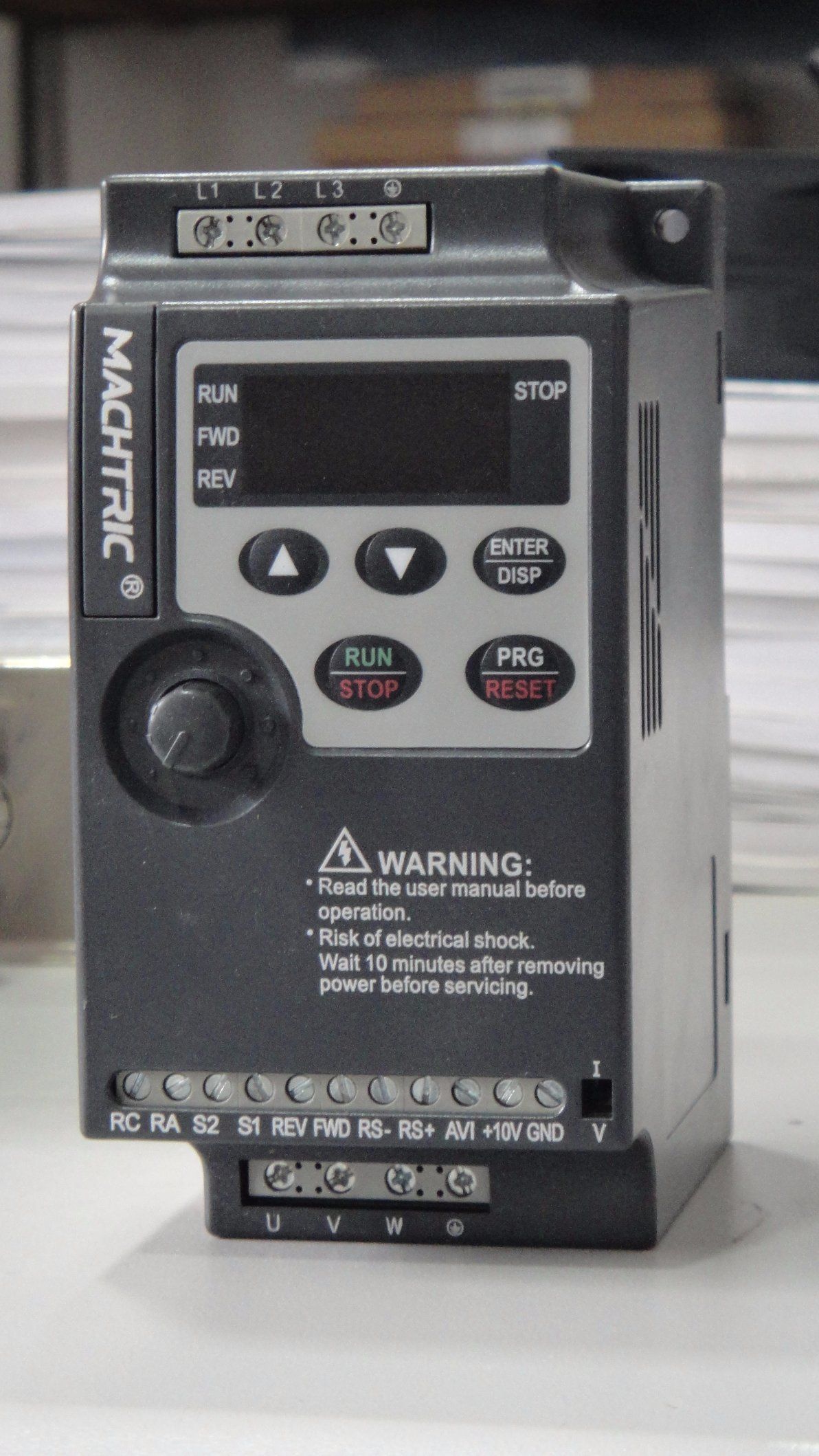

| Prod Model: |
S800E VSD |
| Speed Range: |
1:100(SVC) |
| Voltage Range: |
220V & 380 V |
| Color: |
Black |
| Application: |
Three Phase Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
High Carrier Frequency PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric Inverter |
Product Description
roduct Specifications
| Items | S800E |
Power
Supply | Rated voltage, Frequency |
One-phase/Three-phase AC 220V 50/60Hz |
| Voltage Range |
220V: 170~240V |
| Output | Voltage Range | 220V: 0~220V |
| Frequency Range | 0.10~400.00Hz |
| Control method | V/F control, Space vector control. |
| Indication | Operating status/Alarm definition/interactive guidance: eg , frequency setting, the output frequency/ current, DC bus voltage, the temperature and so on. |
| Control SpeciAlations | Output Frequency
Range | 0.10Hz~400.00Hz |
Frequency Setting
Resolution | Digital input: 0.01Hz, analog input: 0.1% of
maximum output frequency |
Output Frequency
Accuracy | 0.01Hz |
| V/F Control | Setting V/F curve to satisfy various load
Requirements. |
Torque
Control | Auto increase: auto raise torque by loading
Condition; Manual increase: enable to set
0.0~20.0% of raising torque. |
Multifunctional
Input Terminal | Four multi-function input terminals, realizing
functions including fifteen section speed control, Program running, four-section acceleration/deceleration speed switch, UP/DOWN function and emergency stop and other functions |
Multifunctional
Output Terminal | 1 multi-function output terminals for displaying
of running, zero speed, counter, external
abnormity, program operation and other
Information and warnings. |
| Acceleration/ deceleration Time Setting | 0~999.9s acceleration/deceleration time can be set individually. |
Other functions
| PID Control | Built-in PID control |
| RS485 | Standard RS485 communication function(MODBUS) |
| Frequency Setting | Analog input: 0 to 10 V, 0 to 20mA can be
selected;
Digital input:Input using the setting dial of the
operation panel or RS485 or UP/DOWN.
Note:AVI terminals can be used to select an
analog voltage input(AV) and analog current
input(AI) through the switch J2.
Note: AVI terminals can be used to select an
Analog voltage input (AV) and analog current
Input(AI) through the switch J2. |
| Multi-speed | Four multifunction input terminals, 15 section
speed can be set |
Automatic
voltage ID ControlliAlation |
