| Prod Model: |

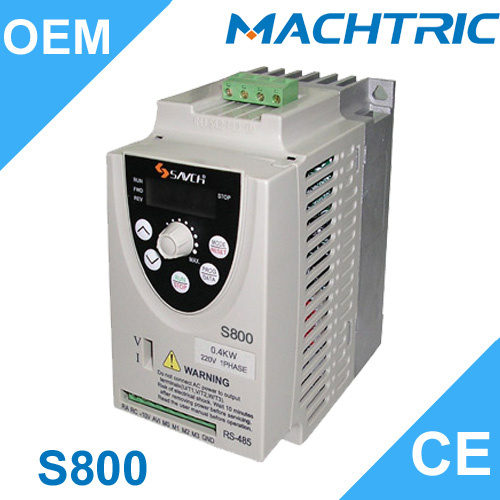

S800 series frequency inverter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
White |
| Power Range: |
0.4-3.7kw |
| Speed Range: |
1:100(SVC) |
| Type: |
Mini AC Drive |
| Frequency Range: |
0-400Hz |
| Voltage Range: |
220V & 380 V |
| Application: |
General Transducer |
| Output Type: |
Triple |
| Principle Of Work: |
V/F Control Transducer |
| Switch Mode: |
PWM Control |
| Main Circuit Type: |
Current |
| Brand: |
Machtric |
Product Description
Specifications:
1) Rated voltage: 220V / single phase
2) Power range: 0.2 ~ 1.5kW
3) Output frequency: 1.0 ~ 400Hz
| Input Voltage Level | 220V |
| Model S8000-2s*** | 0.2G | 0.4G | 0.75G | 1.5G |
| Applicable Motor Power(kw) | 0.2 | 0.4 | 0.75 | 1.5 |
| Rated output capacity(Kva) | 0.6 | 1.0 | 1.6 | 2.9 |
| Rated output current(A) | 1.6 | 2.5 | 4.2 | 7.0 |
| Maximum output voltage(v) | SINGLE-PHASE CORRESPONDING INPUT VOLTAGE |
| Range of output frequency(Hz) | 1.0~400 Hz |
| Rated input current(A) | 4.9/2.4 | 6.5/3.0 | 9.7/5.1 | 15.7/9 |
| Admissible variation range | Single-phase power supply 200-240V 50/60Hz |
| of input voltage |
| Variation range of power | +-5% |
| supply frequency |
| Control mode | V/F& SVPWM spatial vector modulation |
| (carrier 2kHz-12kHz) |
| Resolution of output frequency | 0.1 Hz |
| Torque characteristic | Torque and speed drop compensation function. |
| trigger torque can be up to 150% in 3 Hz |
| Overload toleration | 60 seconds under 150%of Rated output current |
| Accelerating and decelerating time | 0.1~600seconds(can be set independently) |
| V/F curve | Randam V/F curve setting |
| Action adjustment to avoid losing speed | Set by percent of Rated current, 20%~200% |
| Protective Function | Over-voltage, over-current, low-voltage, overl |
| oad limits, electronic thermocouple, overheat, |
| self-check, ground protection, abnormal port |
| Type of Cooling | Air-blast cooling |
| Using location | Lower than 1000m, indoor(keep from corrosive |
| gases, liquids and dust) |
| Environment temperature | -10~40(no dewing and icing) |
| Storage temperature | -20~60 |
| Humidity | Below 90%RH(no dewing) |
| Vibration | 9.80665m/s2 below 20Hz(1G) 5.88m/s2 below |
| 20~50Hz(0.6G) |
