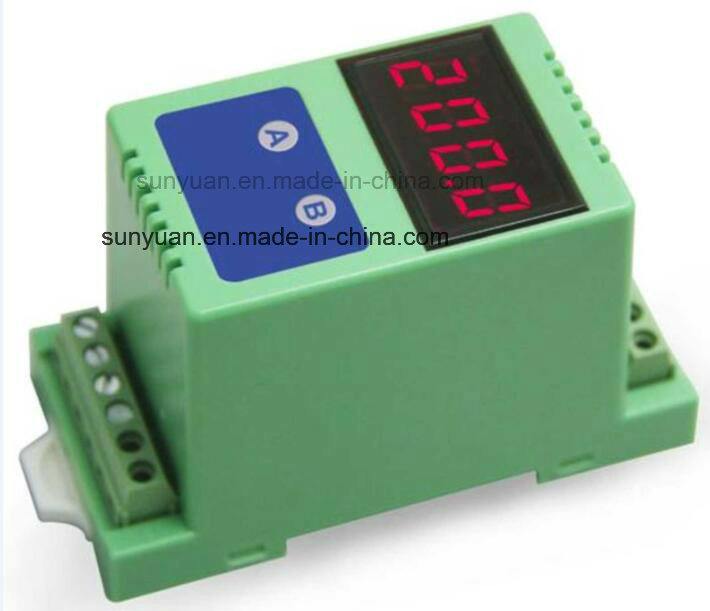

0-75mv to 4-20mA Isolated Signal Conditioner with LED Display
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
DIN1x1 ISOEM U/A-P-O LED1 |
Product Description
Active Intelligent Isolation Transmitter
Single channel analog signal isolated controlling transmitter
DIN 1X1 ISOEM (LED1)DC Current Voltage Isolation Signal Conditioner Features
- Directly display input or output signal, easy to operate.
- High accuracy 4-digit LED display, accuracy ± 2 digits
- Programmable 2-channel upper and lower limit isolated switching quantity alarm signal output.
- Accuracy grade: 0.1, 0.2, 0.5, full range non-linearity<0.2%.
- Multiple type of protection circuit embedded, external components, zero and gain adjustment are not required.
- 3000VDC isolation among input, output, power supply.
- Auxiliary power supply: 5V,12V, 24VDC,220VAC single power supply.
- 0-75mV, 0-5V, 0-10V, 0-1mA, 0-20mA, 4-20mA signal isolation, amplification, display and controlling.
- Industrial grade temperature range: -25 ~ +70 ºC.
- Low cost, small size standard 35mm DIN Rail-mounted.
- Electromagnetic interference suppression circuit and shielding measurement are required in strong EMC field.
DC Current Voltage Isolation Signal Conditioner Applications
- DC Current voltage signal isolated conversion, amplification and controlling.
- Industrial site analog signal inspection, isolation and long-distance transmission.
- Analog signal ground wire interference suppression and isolated data acquisition.
- Meters and sensors signal transmission and controlling.
- PLC, DCS industrial site analog signal isolated testing.
- Frequency signal long-distance transmission without distortion.
- Electric power controlling, medical equipment isolated safety barrier.
- 4-20mA (0-20mA)/0-5V signal isolated conversion.
- Industrial equipment operation measurement, monitoring and remote control.
- Chemical, environment, mineral system control.
- Temperature, pressure, flow, level sensor signal monitoring and control.

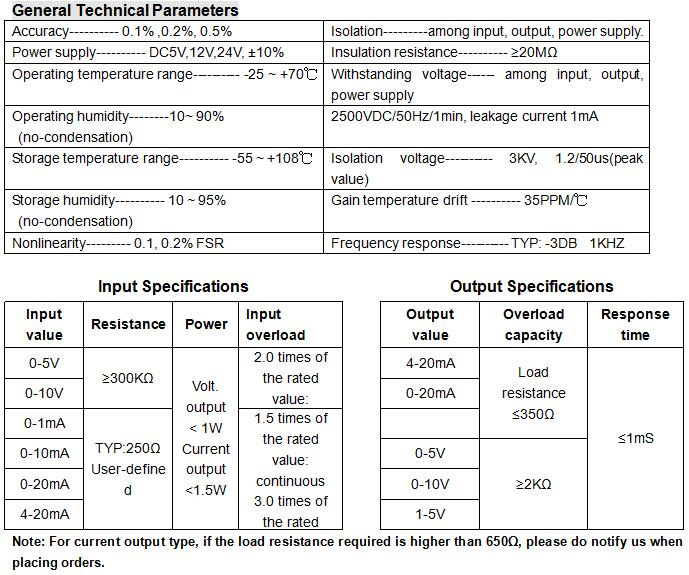

DC Current Voltage Isolation Signal Conditioner Specifications

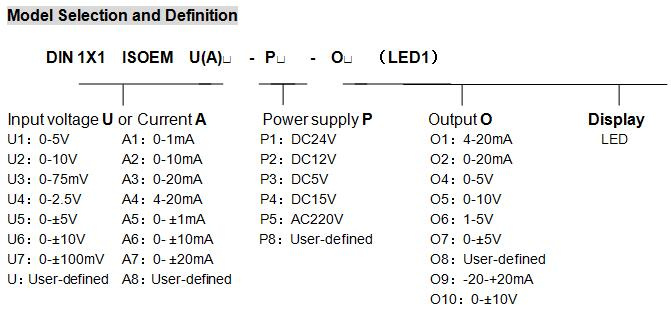

Model selection examples:
E.g. 1: Input: 0-5V; power supply: 24VDC; output: 4-20mA; LED display
Model No.: DIN 1X1 ISOEM U1-P1-O1 (LED1)
E.g. 2: Input: 4-20mA, power supply: user-defined 9V, output: 4-20mA; LED display.
Model No.: DIN 1X1 ISOEM A4-P8-O1 (LED1)
E.g. 3: Input: user-defined 0-3.3V, power supply: 5VDC, output: 0-5V; LED display.
Model No.: DIN 1X1 ISOEM U8-P3-O4 (LED1)
