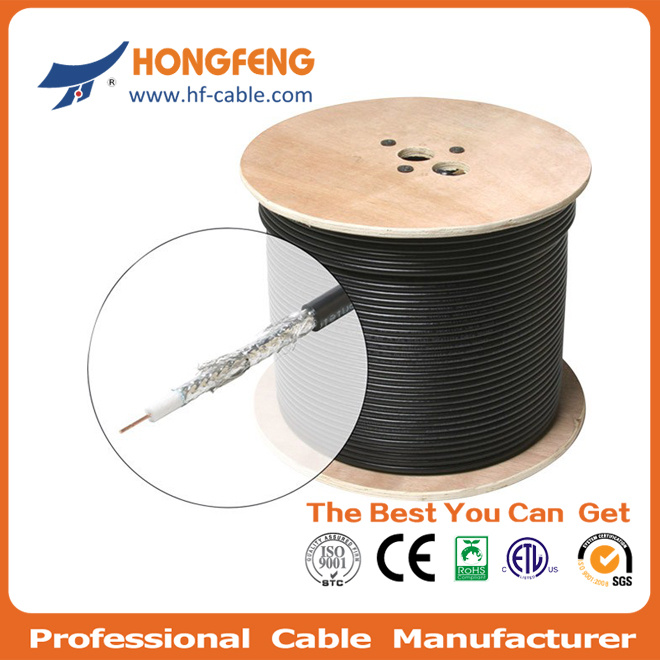

75ohm CCTV Cable Rg59u for CCTV System

Prod Model:	RG59U
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Coductor:	CCS/Cu
Inner Coductor Od:	0.81mm
Dielectric Od:	3.66
Dielecric:	Foam PE
1st Shield:	Al Foil
2ND Shield:	Al/CCA Bradis
Shield Covery:	30%-90%
Jacket:	PVC
Jacket Od:	6.0mm
Usage:	CCTV/CATV
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable

Product Description

Construction:
Inner Conductor- - - - 0.81± 0.01mm Copper Clad Steel 21%
Dielectric - - - - - - -- 3.66± 0.05mm Foam PE
Shield - - - - - - - - - - - - Bonded Aluminum PET Aluminum
Braid Coverage- - -- - - 0.12mm *16*6 (60%)AL-Mg Alloy
Shield- - - - - - - - - -- - - Aluminum PET Aluminum
Jacket- - - - - - - - - - - - 6.1± 0.05 mm PVC
Jelly/APD - - - - -- - - - - Per Customized




RG59

BASIC CONSTRUCTION

Conductor	Material	BC/CCS
	Nom.Dia.	0.81mm
Dielectric	Material	Foam PE
	Nom.Dia.	3.66mm
Shield	Material	Al foil+Al braiding
	Coverage	40%-95%
Jacket	Material	PVC/PE
	Nom.Thick.	0.80mm
	Nom.Dia.	6.10mm


BASIC CHARACTERISTICS

Nominal Impedance(ohm)	75±3
Nominal Velocity of Propagation(%)	85
Nominal Capacitance(pF/m)	50
Sparker Test(VAC)	4000
SRL(dB)	20		20
Attenuation(68°F(20°C))	Frequency(MHz)	Maximum(dB/100ft)	Maximum(dB/100m)
	5	0.86	2.82
	55	2.05	6.73
	187	3.6	11.81
	300	4.45	14.6
	450	5.4	17.72
	600	6.2	20.34
	750	6.97	22.87
	865	7.52	24.67
	1000	8.12	26.64

Packing:
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;
2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.

#Coaxial Cables:
1) RG series Coaxial Cable: rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178,rg213, rg214, RG316,etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable:17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: P3 412, 500, 540, 625, 750, 860 ;
5) LMR SERIES: LMR195,LMR200, LMR400, LMR600 ;
6) Network Cables: Lan Cable CAT3, Lan Cable CAT5, Lan Cable CAT5e, Lan Cable CAT6, Lan Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+lan cable .
Note:If the specification is not you need,please tell me and i will offer you price according your requirements.
