| Prod Model: |
DSC16080302 |
| Conductor: |
1.63mm CCA/Bc |
| Insulation: |
7.11mm Fpe |
| Braiding: |
CCA/Bc/Al-Mg Wire |
| Shield: |
Al/Cu Foil |
| Jacket: |
10.0mm PVC |
| Function: |
CCTV/CATV System |
| Certificate: |
Ce/RoHS/ISO9001/SGS |
| Key Words: |
Coaxial Cable Rg11/U |
| Application: |
RF Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ISO |
| Type: |
Coaxial Cable |
| Wire Core Material: |
CCS |
Product Description
75OHM COAXIAL CABLE RG11/UCOAXIAL CABLE RG11/U Physical Specifications

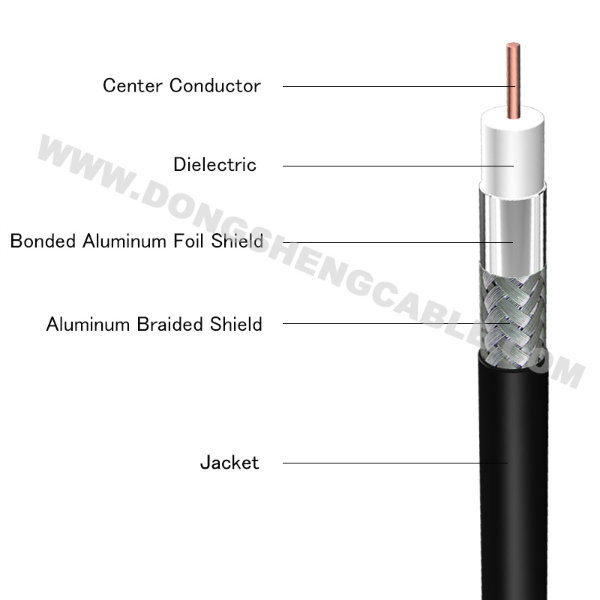

Nominal Dimensions | Standard | Tri-shielding | Quad-shielding |
Conductor | 1.63mm( 0.064 in) | 1.63mm( 0.064 in) | 1.63mm( 0.064 in) |
Dielectric | 7.11mm(0.280 in) | 7.11mm(0.280 in) | 7.11mm(0.280 in) |
Shielding 1 | Al /Pet foil | Bonded Al /Pet foil | Bonded Al /Pet foil |
Shielding 2 | 0.12mm*80 (40% coverage) | 0.16mm*96 (60% coverage) | 0.16mm*168 (90% coverage) |
Shielding 3 | - | Al /Pet foil | Al /Pet/Al foil |
Shielding 4 | - | | 0.16mm*80 ( 40% coverage) |
Jacket | 10.03mm( 0.395 in) | 10.16mm( 0.400 in) | 10.29mm( 0.405 in) |
Messenger | 1.83mm (0.072 in) Zinc plated steel |
Mechanical Characteristics
Mechanical Breaking Strength of Messenger 0.072 inch 365lbs. 1624 N
Electrical Characteristics
Impedance ( Ohms) 75±3
Nominal Capacitance (pF/m) 53
Velocity of Propagation 85%
Structural return loss (Db)≥ VHF 22
UHF 20
Attenuation [@68F.(20Degree centigrade)]
Frequency Mhz | dB/100 ft | dB/100 M |
5 | 0.38 | 1.25 |
55 | 0.96 | 3.15 |
211 | 1.90 | 6.23 |
300 | 2.25 | 7.38 |
400 | 2.60 | 8.53 |
450 | 2.75 | 9.02 |
550 | 3.04 | 9.97 |
750 | 3.65 | 11.97 |
865 | 3.98 | 13.05 |
1000 | 4.35 | 14.27 |
Application:-
Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable
for satellite systems where lower attenuation required.

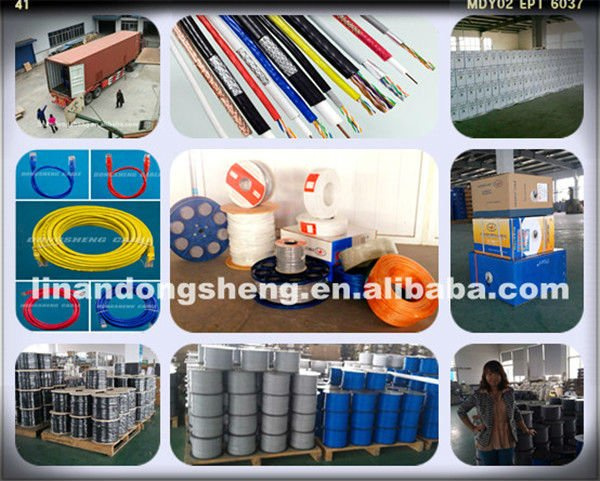

Photos of Products:-

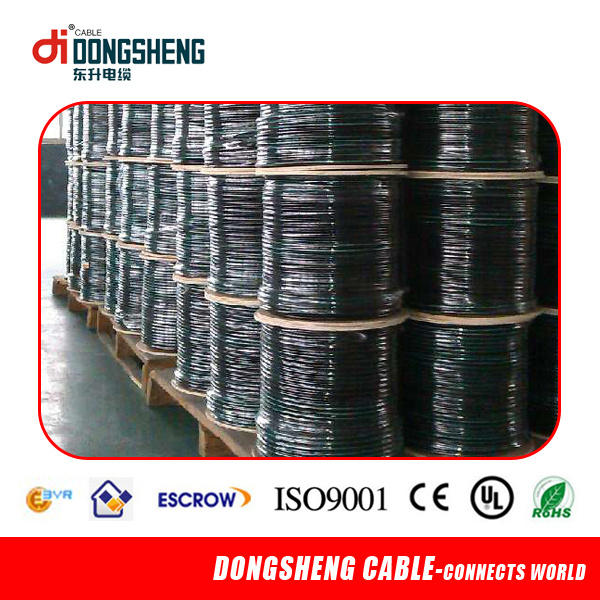

Packing:
1) Packing Lengths:100/roll,200 m/roll, 300m/roll. 305m/roll
2) Inner Packing: Wooden reel, plastic reel, and paper reel
3) Outer Packing: Carton box, pull out box, pallet available
4) Other packing available according to clients' request
