Name: 75ohm Drop Cable Rg6u Coaxial Cable
Brand: all-electronics-online.com
SKU: 701556625
Availability: InStock
Rating: 5 (85 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	RG6u
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Impedance:	75 Ohm
Cable Standard:	Commscope
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial
Model:	RG6
Brand:	Hf

Product Description

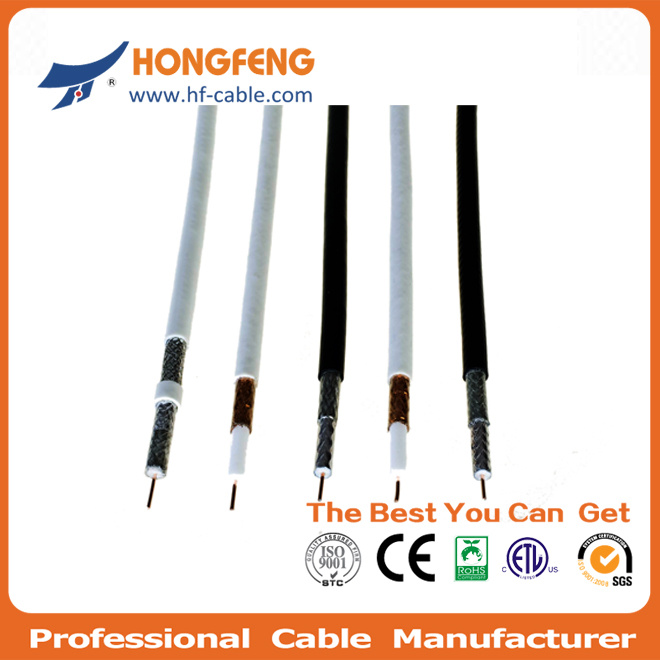

RG6 coaxial cable:

Product Description:
Bonded foil, 64/0.16 (60% )braid, flame retardant PVC jacket

--CENTER CONDUCTOR:
18 awg copper-clad steel
Nominal diameter: 0.040" (1.02 mm)

--DIELECTRIC
Gas expanded polyethylene
Nominal diameter over dielectric: 0.180" (4.57 mm)

--SHIELD:
1st shield: Aluminum-polypropylene-aluminum laminated tape with overlap bonded to the dielectric
Nominal diameter over tape: 0.187" (4.75 mm)

--JACKET:
Flame retardant PVC
NOminal diameter over jacket: 0.272" (6.91 mm)
Nominal jacket thickness: 0.030" (0.76 mm)

Characteristics

--Sparker Test: 4000VAC

--Impedance: 75+3 Ohm

--Capacitance: 54+3pF/m

--Velocity of Propagation: 85% (min)

--Return Loss: 20dB min (5-2300MHz)

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
