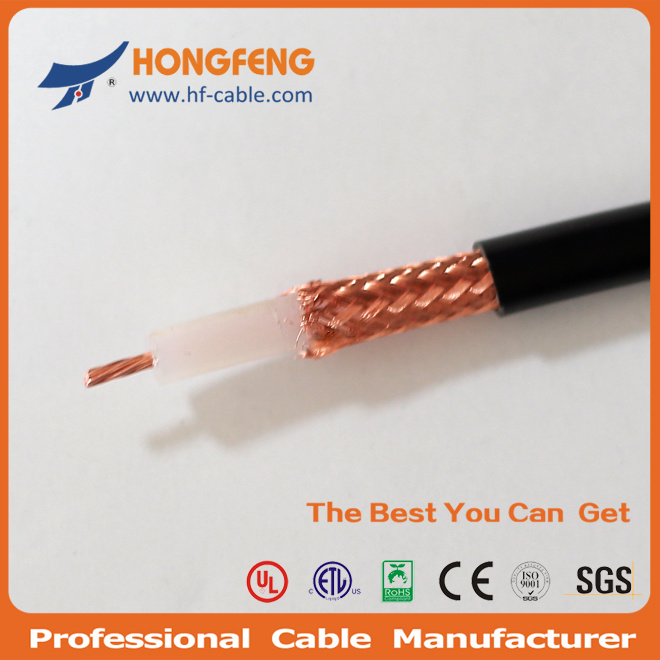

75ohm Rg Series Rg7 Coaxial Cable (Quad Shield)

Name: 75ohm Rg Series Rg7 Coaxial Cable (Quad Shield)
Brand: all-electronics-online.com
SKU: 701585415
Availability: InStock
Rating: 4.3 (145 reviews)

Price:	Negotiable/Meter
Trade Terms:	FOB
Min Order:	20000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Rg7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Coaxial Cable
Conductor Material:	BC/CCS/CCA/TC/CU/CCAG
Cover Material:	PVC
Certification:	UL
Type:	Coaxial Cable
Model:	Rg7
Brand:	Hf

Product Description

Specifications:
1) Inner conductor: CCS 1.29mm
2) Insulation: Foamed PE
3) Outer conductor (shield):
A) Bonded aluminum foil
B) Al-Mg braiding 60% coverage
C) Jacket: PVC 8.1mm
4) Impedance: 75&Plusmn; 3Ω
5) Attenuation (20° C dB/100m max. ): 5MHz 1.87, 55MHz 4.17,
211MHz 8.04, 270MHz 9.15, 300MHz 9.68, 330MHz 10.17, 400MHz 11.25,
450MHz 12.01, 550MHz 13.35, 750MHz 15.78, 870MHz 17.09, 1000MHz 18.44

Our company, hongfeng industry, a professional cable manufacturer, is located in hangzhou, a city which is not only famous for its fabulous scenery, and also known for the center of the manufacture industry. And also we get close to the Shanghai port and ningbo port. This makes our company an unique position offering and delivering the cable overseas. We are dediacated to providing high quality coaxial cable and LAN twisted pair cable.

We offer whole range of coaxial cable and LAN twisted pair cable. Coaxial cable includes RG6 series, RG58series, RG59series, RG7series, RG11series, QR series, 500 series. And network cable CAT7 series, CAT 6 series, CAT 5 series.

We provide consistent high quality products at competitive prices. We have an products controlling teams, which monitors the manufacturing process and checks all the products before shipment. Our professional customer's service are ready to provide you with all necessary consultations and solve any problems related to our products.
