| Prod Model: |
P3 500 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| P3 500 Coaxial Cable: |
Qr500 Trunk Cable |
| P3 500 Trunk Cable: |
Qr500 Coaxial Cable |
| Impedance: |
75 Ohms |
| Trunk Cable Outdoor For CATV: |
Ourdoot with Messenger |
| Jacket: |
14.22mm PE |
| Inuslation: |
11.43mm PE |
| Shielding: |
Alu. Tube (Seamless, Welded) |
| Al.Tube Cable: |
Trunk Alu. Tube Cable |
| Inner Conductor: |
2.77mm CCA |
| Capacitance: |
15.3 PF/M 50 NF/Km |
| Certification: |
ETL |
| Application: |
Long Distance Symmetric Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PE |
| Type: |
Coaxial Cable |
| Model: |
Coaxial |
| Brand: |
Hf/OEM |
Product Description

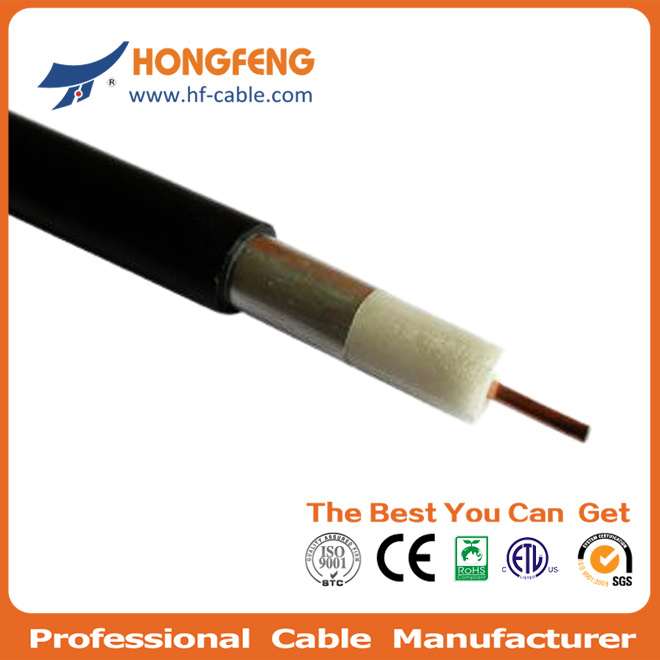

75 ohm Trunk with Messenger Coaxial Cable P3 500 CATV
Description
*Solid aluminum tube swaged onto dielectric code
*fully bonded Copper clad, center conductor PE jacket messenger
*Center Conductor: CCA, Φ 0.109"(2.77mm)
*Dielectric: Micro-celluar Foam PE, Φ 0.45" (11.43mm)
*Shield: Solid aluminum tube
*out conductor thickness: 0.024"(0.61mm)
*Jacket: PE jacket diameter: Φ 0.056(14.22mm)
*thickness of out jacket: 0.030(0.76mm)
Mechanical characteristic
Minimum Bend Radius: 10.2mm(0.253")
Maximum Pulling Tension: 10.2mm(0.253")
Electrical performance
Capacitance: 15.3± 0.1 pF/ft, (50± 3 nF/km)
Impedance: 75± 3 ohms
Velocity of Propagation: 87% (Nominal)
Maximum DC Loop Resistanc1.72 ohms/1000 ft (5.64 ohms/km)
Attenuation: @68 F(20° C)
| Frequency(MHz) | dB/100ft. (max. ) | dB/100m(max. ) |
| 5 | 0.16 | 0.52 |
| 55 | 0.54 | 1.77 |
| 211 | 1.09 | 3.58 |
| 450 | 1.63 | 5.35 |
| 550 | 1.73 | 5.67 |
| 750 | 2.61 | 7.09 |
| 865 | 2.34 | 7.68 |
| 1000 | 2.52 | 8.27 |
Verified Information
This information was Verified by Bureau Veritas and is valid for the following period: 2013/09/28 --- 2014/09/27
The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report >>
The competitive advantage of product line:
Coaxial Cable, it mainly exports to South America, Western Europe and Southern Asia. It is certified by CE and can be manufactured according to clients' requirements.
Production Capacity:
Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|
| Coaxial Cable (for Communication) | 10,000 Kilometers/Month | 120,000 Kilometers |
Export Market Distribution:
Market | Revenue(Previous Year) | Total Revenue (%) |
|---|
| North America | confidential | 3.0 |
| South America | confidential | 28.0 |
| Eastern Europe | confidential | 8.0 |
| Southeast Asia | confidential | 7.0 |
| Africa | confidential | 1.0 |
| Western Europe | confidential | 11.0 |
| South Asia | confidential | 28.0 |
| Domestic Market | confidential | 14.0 |
Production Machinery:
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|
| Extruding Machine 1 | SJ65*34 | 3 | 5.0 | Acceptable |
| Extruding Machine 2 | SJ65*28 | 3 | 5.0 | Acceptable |
| High Speed Braider | GSB-1A | 68 | 5.0 | Acceptable |
| Doubling Winder | No Information | 6 | 5.0 | Acceptable |
Testing Machinery:
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|
| RF Network Analyzer | B714ET | 1 | 5.0 | Acceptable |
| LCR Bridge | JC2812A | 1 | 5.0 | Acceptable |
| Density Tester | MP3002 | 1 | 5.0 | Acceptable |
| Pull Force Tester | JPL-2500N | 1 | 5.0 |
Main products:
1) RG series Coaxial Cable: rg59, rg6, rg7, rg8, rg11, RG58, rg142, rg174, rg178,rg213, rg214, RG316,etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable:17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: 412, 500, 540 ;
5) LMR SERIES: LMR200, LMR400, LMR600 ;
6) Network Cables: Lan Cable CAT3, Lan Cable CAT5, Lan Cable CAT5e, Lan Cable CAT6, Lan Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable, RGB5C,RGB6/4C,BT3002.
8) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable
9) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
