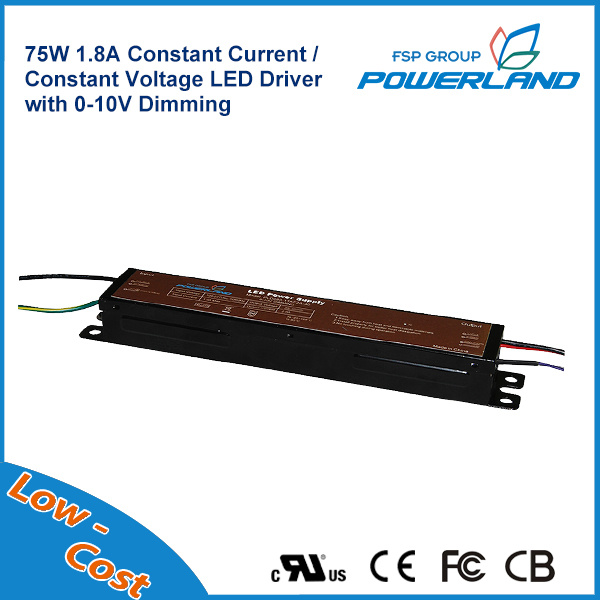

75W 1.8A 20~40V Constant Current Dimmable LED Driver

Name: 75W 1.8A 20~40V Constant Current Dimmable LED Driver
Brand: all-electronics-online.com
SKU: 798701065
Availability: InStock
Rating: 4.4 (83 reviews)

Price:	US $ 12.6-20/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD075-1TAF2A-40
Output Power:	75W
Dimming:	0-10V Dimming
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	20~40V
Pack Sealing Size:	215X42X30 mm
Brand:	Fsp-Powerland

Product Description

75W 1.8A 20~40V Constant Current Dimmable LED Driver

PLD075-1TAF2A-40 offers constant current drivers with wide-range dimmable output
current and 90~305Vac universal input.

The output current of this series is up to 1.8A ,and designed for 0-10V dimming applications

Applications
Indoor LED lights
High bay and low bay lights, LED panels

Features

>50,000 hours lifetime at 75oC Tcase

>5 years warranty at 75oC Tcase

Constant current output
Compatible with 0-10V dimming
Universal input voltage: 90~305Vac

Safety according to UL1310, UL8750, & EN61347-2-13
UL Class 2 Output
Surge voltage rating: L-N 4kV, L/N-Earth 4kV

EMC according to FCC Part 15 Class B

Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD075-1TAF2A-40
Output Voltage	20~40V
Output Current	1.8A
Dimming	0-10V Dimming
Output Power	75W
Max. Current Ripple	200mA
Max. Voltage Ripple	±0.5%
Voltage Range	90~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	1.0A
Max. Input Power	85.5W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	90%
Max. Open Circuit Voltage	43V
THD	<20% @ 120Vac & 80~100% load, <20% @ 277Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp, and Type TL
Working Temperature	-20~+60oC
Max. Case Temperature	90oC
Surge Protection	L-N 4kV, L/N-Earth 4kV
Agency Approbations	UL1310 Class 2
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	215x42x30 mm (8.46x1.65x1.18 inch)
Mounting Length	228 mm (8.98 inch)
Overall Length	242 mm (9.53 inch)
Weight	0.5 kg (1.1 lb)
Life Time	>50,000 hours @ full load, 75oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.

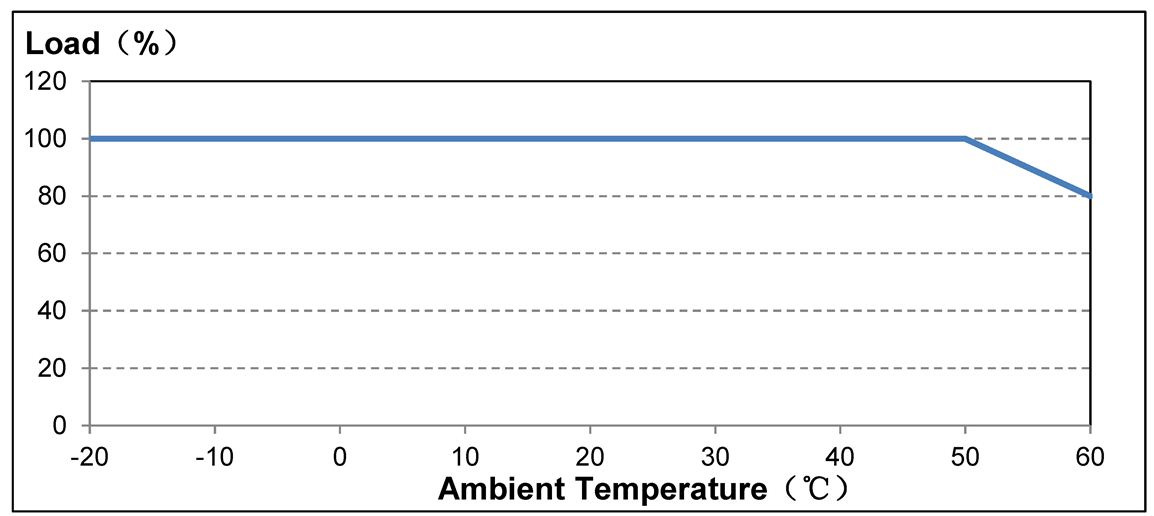

Derating Curve

Electrical Specifications

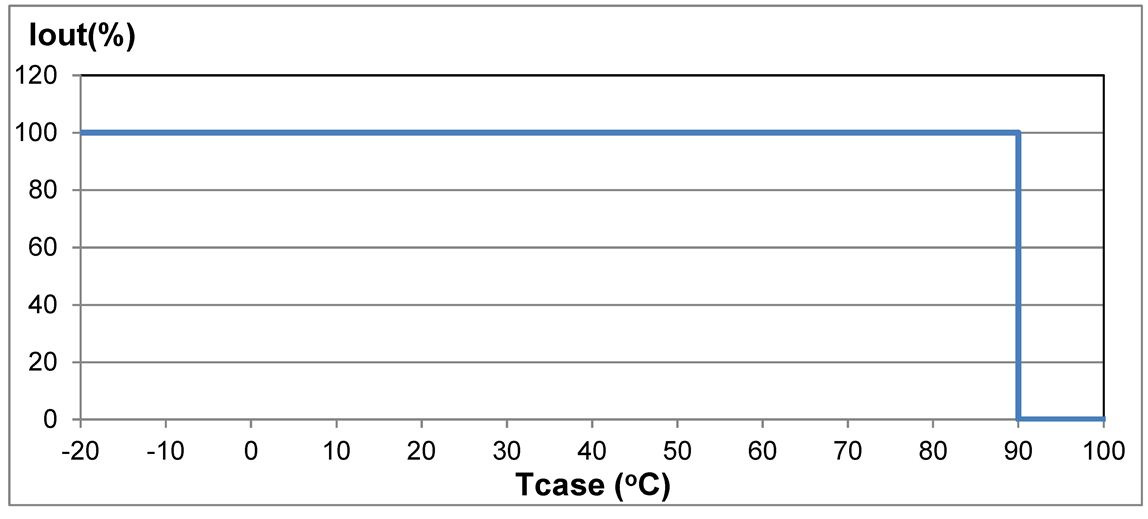

Output Current VS. Case Temperature (with ±5oC Tolerance)

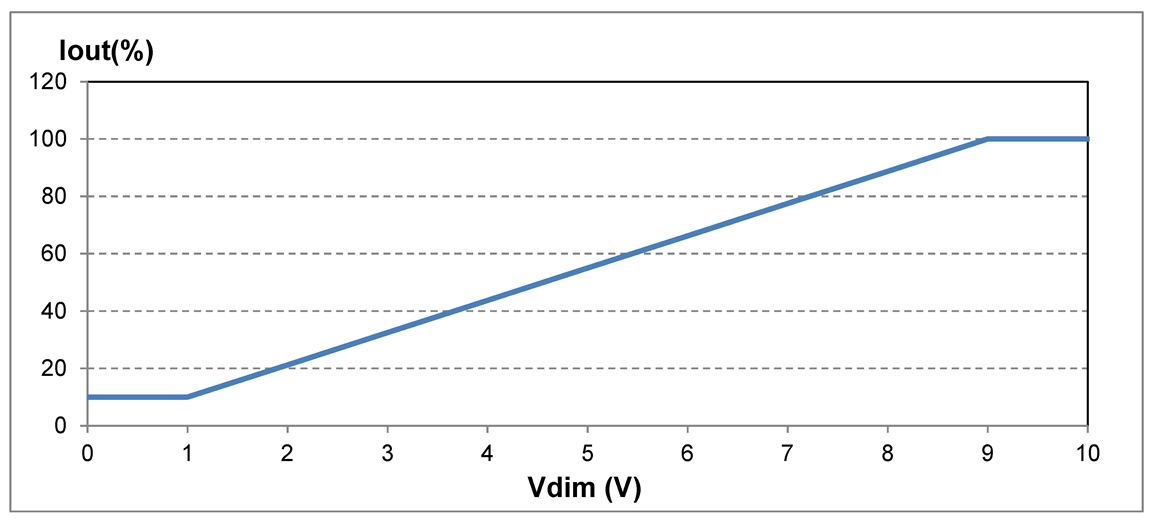

Output Current VS. 0-10V Dimming Control Voltage

Performance Characteristics

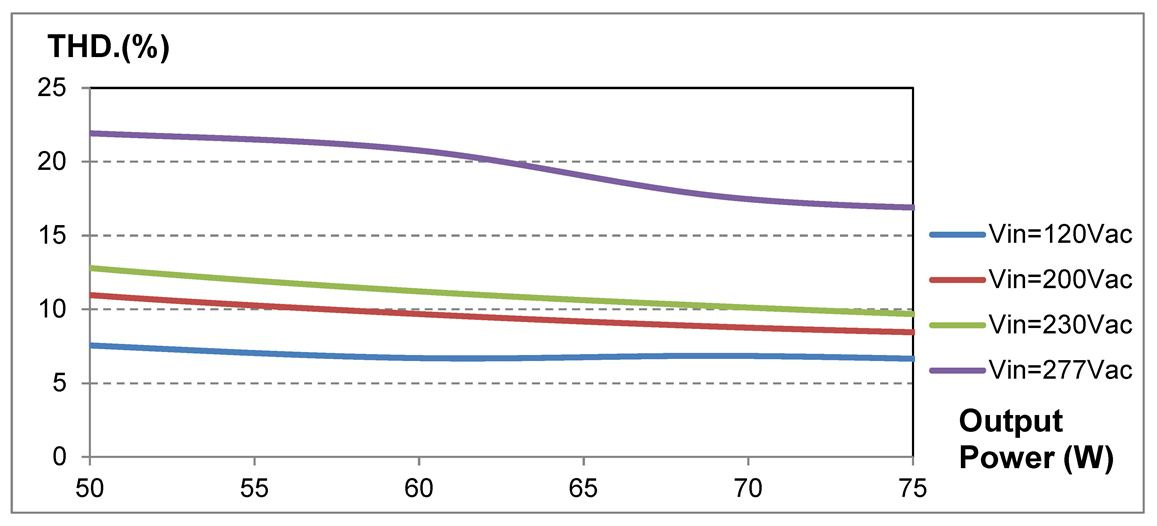

THD VS. Output Power

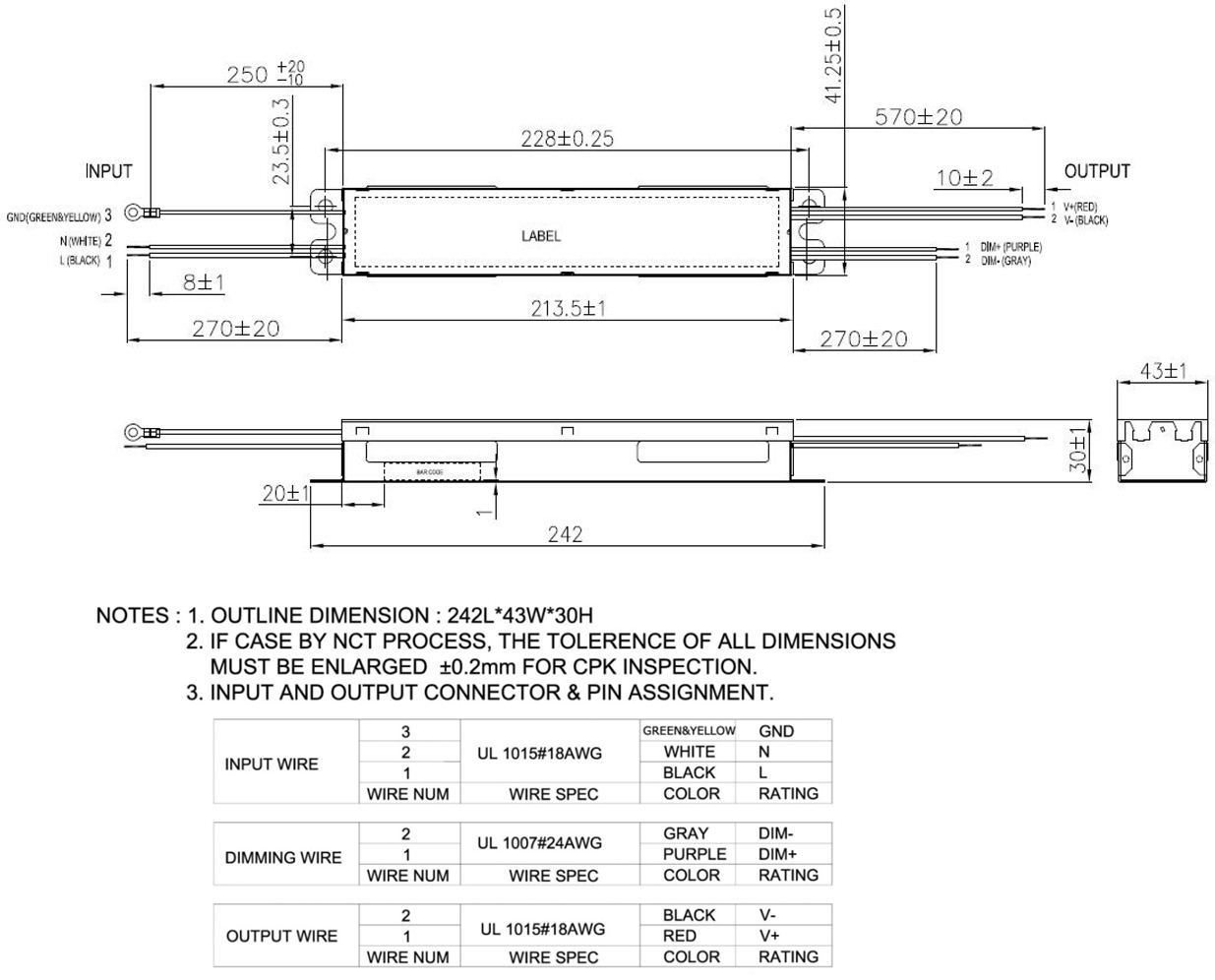

Mechanical Specification
