75W 48V Switch Power Supply Dr-75-48 48V DC Power Supply Rail DIN

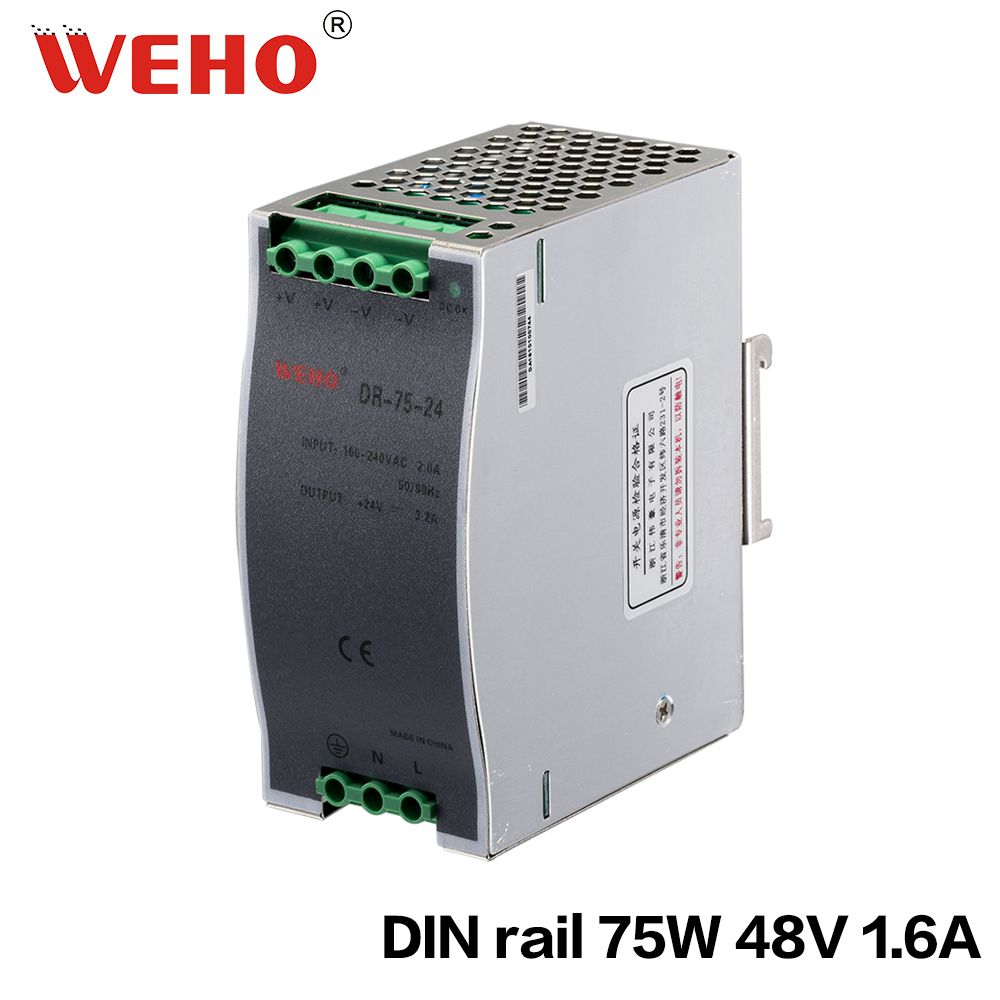

Name: 75W 48V Switch Power Supply Dr-75-48 48V DC Power Supply Rail DIN
Brand: all-electronics-online.com
SKU: 832317585
Availability: InStock
Rating: 4.9 (55 reviews)

Price:	US $ 10.5-12/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	DR-75-48
Type:	Constant Voltage
Material:	Aluminum Case
Weight:	0.55kg
MOQ:	1-5PCS Sample Order
Shipping:	Sea Air DHL FedEx EMS UPS TNT
Test:	100% Full Load Burn-in Test
Voltage:	48V
Current:	1.6A
Output Type:	Single
Warranty:	2 Years
Output Power:	51 - 100W
Input Voltage:	110-220V
Connection Mode:	Series Switching Power Supply
Starting Mode:	Separate-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO
Brand:	Weho

Product Description

75W 48v switch power supply DR-75-48 48v dc power supply rail din

Features:

1. AC input range selectable by switch

2. Protections: Short circuit / Overload / Over voltage / Over temperature

3. 100% full load burn-in test

4. Low cost, high reliability

5. 24 months warranty

Model	DR-75-12	DR-75-15	DR-75-24	DR-75-48
DC output voltage	12V	15V	24V	48V
Output voltage range(Note:2)	±2%	±2%	±1%	±1%
Rated output current	6.3A	5A	3.2A	1.6A
Output current range	0-6.3A	0-5A	0-3.2A	0-1.6A
Wave and noise(Note:3)	100mVp-p	100mVp-p	150mVp-p	240mVp-p
Inlet stability(Note:4)	±0.5%	±0.5%	±0.5%	±0.5%
Load stability(Note:5)	±1%	±1%	±1%	±1%
Efficiency	76%	76%	80%	81%
Adjustable range for DC voltage	10.8~13.2V	13.5~16.5V	21.6~26.4V%	43.2~52.8V%
AC input voltage range	85~264VAC 47~63Hz;120~370VDC
Input current	1.8A/115V 0.9A/230V
AC inrush current	Cold-start current 30A/115V 60A/230V
Leakage current	<3.5mA/240VAC
Overload protection	105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery
Over-voltage protection	13.8~16.2V	13.5~16.5V	27.6~26.4V	43.2~52.8V
Temperature coefficient	±0.03%/°c(0~50°c)
Setup, rise , hold up time	1000ms, 60ms, 50ms/230V
Vibration	10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes
Withstand voltage	Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC
Isolation resistance	Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ
Working temperature and humidity	-10°c~+60°c(Refer to output derating curve), 20%~90%RH
Overall dimension	55.5×125.2×100mm
Weight	0.551Kgs 20PCS/14Kg/1.1CUFT
Safety standards	Meet UL 1012 requiement (Not apply for the mark)
EMC standards	Meet FCC PART 15 J Conduction class B
