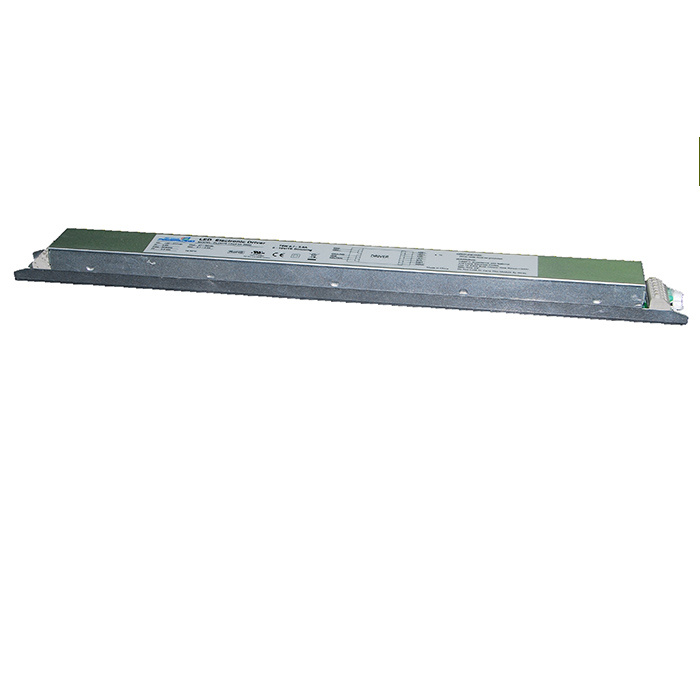

75W 0.7~2A Constant Current Dimmable LED Driver

Name: 75W 0.7~2A Constant Current Dimmable LED Driver
Brand: all-electronics-online.com
SKU: 815679795
Availability: InStock
Rating: 4.5 (53 reviews)

Price:	US $ 18.5-27.5/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD075-1TCF3A-2000
Output Power:	75W
Dimming:	0-10V Dimming
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	108~305VAC
Pack Sealing Size:	428X31X26.5 mm
Brand:	Fsp-Powerland

Product Description

75W 0.7~2A Constant Current Dimmable LED Driver

PLD075-1TCF3A-2000 is a constant current driver with wide-range dimmable output current and 108~305Vac universal input.

The output current of this series is up to 2A with external resistor current setting, and designed for 0-10V dimming applications.

Applications
Indoor LED lights
LED lights with flexible current settings
LED panels, LED fixture with super slim form factors

Features
100,000 hours lifetime at 65oC Tcase
5 years warranty at 50oC Tcase
Constant current output
Compatible with 0-10V dimming
Output current settable with external resistor
Universal input voltage: 108~305Vac
Safety according to UL1310 & EN61347-2-13
UL Class 2 Output
EMC according to FCC Part 15 Class B
Lightning, OVP, SCP, & Open Circuit Protection

Electrical Specifications

Model	PLD075-1TCF3A-2000
Output Voltage	27~54V
Output Current	700~2000mA
Dimming	0-10V Dimming
Current Setting with External Resistor	Yes
Output Power	75W
Max. Current Ripple	200mA
Voltage Range	108~305Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.9A
Max. Input Power	86W
Power Factor	>0.95 @ 115Vac & 80~100% load, >0.90 @ 277Vac & 80~100% load
Efficiency	91%
Max. Open Circuit Voltage	60V
THD	<20% @ 120Vac & 80~100% load
Protections	OVP, OTP, OCP, SCP
Environmental Protection	UL Dry & Damp
Working Temperature	-20~+50oC
Max. Case Temperature	90oC
Surge Protection	1kV/2kV
Agency Approbations	UL1310 Class 2
Electromagnetic Compliance	Per Title 47 CFR Part 15 Class B
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	428x31x26.5 mm (16.86x1.22x1.04 inch)
Mounting Length	418.5 mm (16.48inch)
Overall Length	428 mm (16.86inch)
Weight	0.44 kg (0.97 lb)
Life Time	100,000 hours @ full load, 65oC Tcase

* Unless otherwise noted, the data are based on 25oC ambient temperature, 230Vac input voltage, and full load.
