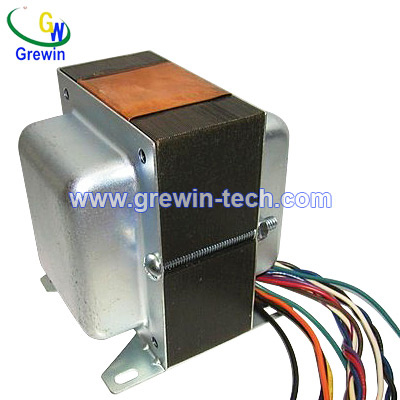

75W DC Output Laminated Transformer for Communication Prducts

Prod Model:	GWEI41, GWEI15
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
PCB:	Transformer
Application:	Audio
Phase:	Single
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
Coil:	Ei
Brand:	Grewin Ei Low Frequency Transformer

Product Description

 lamination low frequency  transformer and Low power consumption ;
High-quality silicon steel sheet.;
They have advantages of low no-load loss, high efficiency, low temperature rise, etc. They can have
different mounting types: lead-wire type, rack type, plug-in type, etc.
Wide applications in air conditioner, microwave oven, intelligent refrigerator, washing machine, multimedia audio equipment and other electrical appliances.
Their input voltage can be different to meet requirements of various regions:
AC380V-240V-230V-220V-120V-110V-100V.

 Maximum output: 1.2W, 2W, 12W, 20W, 35W, 40W, 50W, 90W, 180W, 200W, 400W, 600W, 850W, 1500W, 2400W, 2700W etc.

Application
1. Measuring instruments.
2. Communication prducts.
3. Medical instruments.
4. Audio & Video
5. Elevator
6. Machinery
Basic Info
Model NO.: 3VA 10VA 50VA 100VA 250VA 500VA 1000VA 1500VA
Phase: Single
Cooling Method: Dry-type Transformer
Certification: ISO9001-2000, UL, ISO9001, CCC, CE
Frequency Characteristics: Low Frequency
Brand: Grewin Ei Low Frequency Transformer
Different Mounting Types: Lead-Wire Type, Rack Type, Plug-in Type, etc.
Power: 0.15-1, 500W
Maximum Output: 1.2W, 12W, 20W, 35W, 40W, 50W, 90W, 180W, 200W, 6
Application1: 1. Measuring Instruments;Communication Prducts. Me
Material: Silicon Laminated Steel
Transport Package: Export Standard Carton or Customize Strong Pallet
Origin: China
Application: Power, Electronic, Instrument, Lighting, Rectifier, Audio, Charger, Lamp, Communication Equipment
Coil: Ei Lamination
Winding Type: Auto-transformer
Usage: Ei Low Frequency Transformer for Audio, Lighting
Shape of Coil: EI
Input Voltage: AC380V-240V-230V-220V-120V-110V-100V
Advantages: Low No-Load Loss, High Efficiency, Low Temperature
Test: All Products Are 100% Test Passed and Hi-Pot Shock
Output: AC(0--380V); DC(0--50V)
Design and Custmize: Inductance, Coils, Transformers with Best Quality
Trademark: Grewin Ei 50hz laminated Transformer
Specification: CE
HS Code: 85043190
Product Description
Name:

EI19 EI24 EI26 EI28 EI35 EI48 EI66 Core Low Frequency Transformer with wire leads types:


1.Specifications
1. Easy to install.
2. Lower power consumption.
3. High accuracy of output voltage.
4. Dimension and output leads can be customized
2.Technical ParameterTable:

Brand  Name:	GREWIN Transformer	Mode;	EI	Coil  number:	Autotransformer
Phase:	Single	Core structure	Lamination	Coil  structure:	Toroidal
Power:	0.15-1,500W		Input Voltage	AC380V-240V-230V-220V-120V-110V-100V
Application	Instruments ;Communication  products		Output Voltage	AC(0--380V); DC(0--50V)
Deliver  time	15 working days		Package	Customized standard cartons
ATTENTION:	YOU CAN CUSTOMIZED ALL SERIERS ACCORDING TO YOUR REQUERMENT

Model	Power	Dimension(cm)					Weight(KG)	Voltage   regulation	Approval mark
		A(cm) ±1.5	B(cm) ±2	C(cm) ±2	D(cm) ±2	E(cm) ±2
GWT-EI28	1.5W	43		30	38	28	0.11	35	CE,TUV,
GWT-EI35	3.0W	47		37	38	33	0.15	22	CE,TUV,
GWT-EI41	11.0W	54		43	47	35	0.32	16.5	CE,TUV,
GWT-EI48	25.0W	62		50	65	43	0.57	13.1	CE,TUV,
GWT-EI57	40.0W	73		59	65	51	0.84	11.8	CE,TUV,
GWT-EI66	80.0W	83		68	80	58	1.38	9.3	CE,TUV,
GWT-EI76	140W	64	70	76	85	68	2.25	7.6	CE,TUV,
GWT-EI86	180W	72	75	86	92	73	2.82	7.1	CE,TUV,
GWT-EI96	250W	80	81	96	90	82	3.36	6	CE,TUV,

Grewin's chasis Type Transformer/PCB EI transformers:


1.Product Feature :
1. Easy to install.
2. Lower power consumption.
3. Little temperature rising.
4. High accuracy of output voltage.
5. Diemension and output leads can be customized.
6. Dielectronic Strength is high.
2.Product Specification:
1. Models:
EI28, EI30, EI35, EI48, EI57, EI66, EI86, EI96, EI105, EI114, EI133, EI152, EI162 etc.

2. Maximum output: 1.2W, 2W, 12W, 20W, 35W, 40W, 50W, 90W, 180W, 200W, 400W, 600W, 850W, 1500W, 2400W, 2700W etc.

3. Input:
100Vac, 110Vac, 115Vac, 120Vac, 220Vac, 230Vac, 240Vac etc.

4. Output:
AC(0--380V); DC(0--50V)

3.Application

1. Measuring instruments.
2. Communication prducts.
3. Medical instruments.
4. Audio & Video
5. Elevator

4.Advantage:
1.UL, CUL, CE, ISO9001:2008
2.We offer custom-made transformers, OEM and ODM are welcome
3.We deliver the quality you expect at consistently competitive prices
4.Transformer quality lifetime:10 Years.
5.Specialty Sales service:5 -10 Years
6.Transformers Test: 100% test before the shipment

About us:
1.Tianjin Grewin Technology Co.,ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ".
We can manufacture EI Power Transformers.Below is our mainly products with much advantages in our market:
Custom mains transformers 50/60 Hz

	Transformers with  particular core requirements such as size, finish, pins layout, input and output voltage.
	Where PCB does not allow the use of mains transformers encapsulated in resin we can supply air transformers with plastic shell for the protection of windings and the improvement of creepage-clearance.
	custom transformers are manufactured according to the technical and safety requirements from clients. As an example, here you can find some of the most common features you can easily request:
	Primary and secondary windings in separate sections
	Encapsulation in epoxy resin or insulating varnish dipping.
	Hot-dip tin coated phosphor bronze pins
	Pin size: Max diameter = 0,90mm , Minimum length = 4mm
	5KV Primary to Secondary dielectric strength
	100% tested
	On request they can be tested to meet CEI EN61558-1(CEI 96-3) e CEI EN 61558-2-6 (CEI 96-7) safety standards.

2.product procedure:
The following picture showed you about all finished transformer production line and package with export standard carton and strong pallets:


3.Flow chart of trading activities:


NO	Step	Days need
1	Request for quotation	1 day
2	Making quotations	1 day
3	Offer and counter offer	3 days
4	Sending and receiving samples	3-10 days
5	Sample confirmation	3 days
6	Placing a firm order	1 day
7	Paying and receiving the down payment	1-4 day
8	Factory production & Quality inspection	15-20 days
9	Paying and receiving the balance	4 days
10	Delivery of goods	1 days
