75W Mini Body Ms-Series LED Adapter SMPS with Ce RoHS
Price: |
US $ 6.14-7.65/Piece |
Min Order: |
10/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
MS-75-5, MS-75-12, MS-75-15, MS-75-24 |
Output Frequency: |
47Hz - 63Hz |
Output Voltage: |
5V 12V 15V 24V DC |
Antistop: |
Switching Power Supply |
Condition: |
Winston Original New |
Output Type: |
Single |
Warranty: |
2 Years |
Input Voltage: |
110-220V |
Connection Mode: |
Series Switching Power Supply |
Starting Mode: |
Separate-excited Switching Power Supply |
Voltage Regulating Mode: |
Width Modulation Type |
Power Supplying System: |
Level 1 Power Distribution Equipment |
Certification: |
RoHS |
Output Power: |
60W |
Brand: |
Winston/OEM |
Product Description

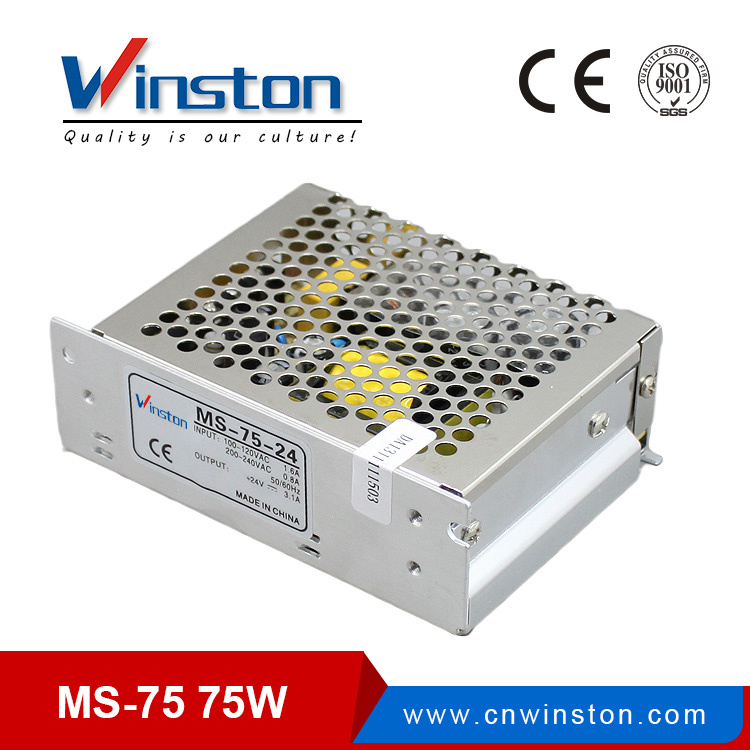

MS-75 Single output Mini-size 5V/15A 12V/6.3A 15V/5A 24V/3.2A Power Supply1. Features: 75W Switching Power Supply
1). Universal AC input/Mini-size (AC/DC),
2). Small volume,low weight,high efficiency
3) Protections: Short Circuit/Over Load/ Over Voltage
4). Indicator for power on/normal (LED)
5).100% full loadburn-in test
6).CE ROHS approved
2. Specification Model | MS-75-5 | MS-75-12 | MS-75-15 | MS-75-24 |
Output | DC Voltage | 5V | 12V | 15V | 24V |
Rated Current | 15A | 6.3A | 5A | 3.2A |
Current Range | 0~12A | 0~5A | 0~4A | 0~2.5A |
Ripple & Noise (max.) Note.2 | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p |
Voltage Adj. Range | ±10% | ±10% | ±10% | ±10% |
Voltage Tolerance Note.3 | ±2.0% | ±1.0% | ±1.0% | ±1.0% |
Line Regulation | ±0.5% | ±0.5% | ±0.5% | ±0.5% |
Load Regulation | ±1.0% | ±0.5% | ±0.5% | ±0.5% |
Setup,Rise time Hold time | 200ms 100ms 30ms/230VAC At Full Load |
Input | Voltage Range | 85 ~ 264VAC 120 ~ 370VDC 47~63HZ |
Efficiency | 78% | 79% | 82% | 83% |
AC Current | 2A/115VAC 1A/230VAC |
Inrush Current | Cold Start Current 20A/115VAC 40A/230VAC |
Leakage Current | <0.5mA / 240VAC |
Protection | Over Load | 105 ~ 150% Cut Off output, automatic recovery |
Environment | Working Temperature | -10 ~ +50°c (Refer to "Derating Curve" ) |
Working Humidity | 20~90% RH Non-condensing |
Safety | Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100MOhms/500VDC |
Others | Weight | 0.32kg |
Dimension | 111*78*36mm (L*W*H) |
Packing | 42*35*25CM/80PCS/22KG |
PS: If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

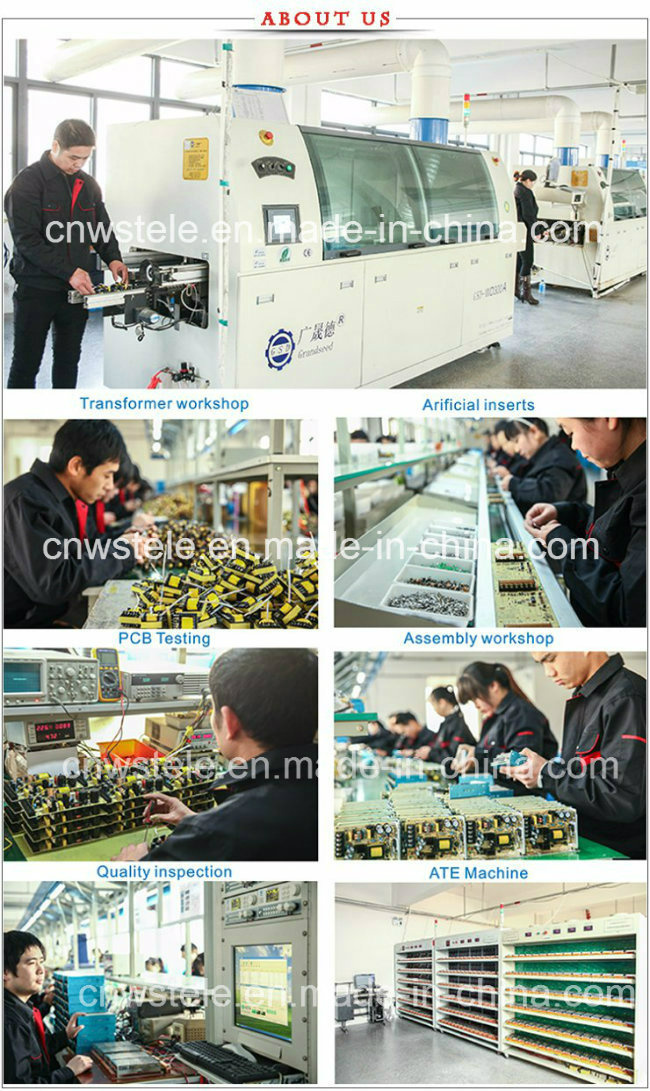

Yueqing Winston Electric Co., Ltd, established in 2010, is a rapid growing enterprise who integrate the production and marketing of Industrial electrical appliance. After seven years' effort and development, now we have become one of the leading electrical manufacturers and suppliers in China. We are always keeping very kind relationship with many strong electrical factories and Insearch institutes in China. We have been enjoying high reputation in electrical market domestically and internationally.
