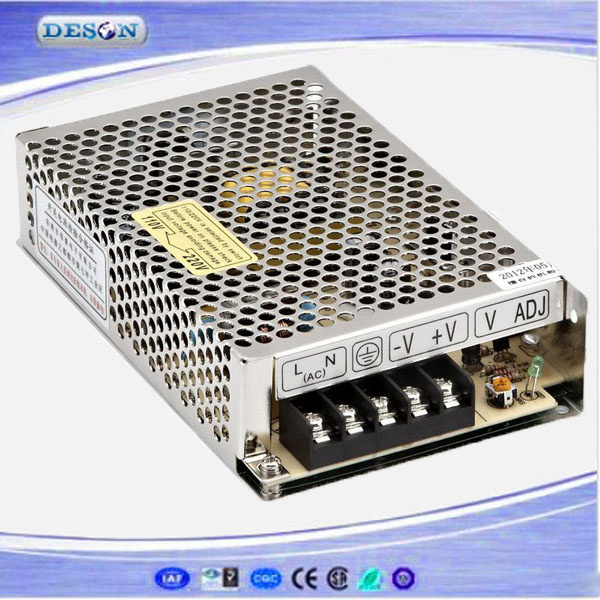

75W Single Output AC to DC Power Supply

Prod Model:	S-75
Power:	75W
Input:	AC100-240
Output:	5V/12V/24V
Size:	159X98X38mm
Weight:	0.5kgs
Output Type:	Single
Warranty:	2 Years
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Frequency Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	75W
Brand:	Deson
Energy Transmission:	AC to DC Power Supply

Product Description

75W Single Output AC to DC Power Supply

1.Universal AC Input
2.Compact size , light weight
3.Protection : short circuit/Overload/Over voltage/ Over temperature
4.Cooling by free air convection
5.100% full load burn-in test
6.Soft-start current can reduce the AC input impact effective
7. 2 years warranty

Product Description

Model	S-75-12	S-75-15	S-75-24	S-75-48
DC output voltage	12V	15V	24V	48V
Rated output current	6A	5.0A	3A	1.5A
Output current range	0-6A	0-5A	0-3A	0-1.5A
Wave and noise	75mVp-p	100mVp-p	100mVp-p	100mVp-p
Inlet stability	±0.5%	±0.5%	±0.5%	±0.5%
Load stability	±0.5%	±0.5%	±0.5%	±0.5%
Efficiency	78%	79%	82%	83%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range:	85~132VAC/170~264VAC selected by switch 47~63Hz;240~370VDC
AC inrush current:	Cold-start current 15A/115V 30A/230V
Overload protection:	105%~150% Type:plusing hiccup shutdown Reset:auto recovery
Setup rise hold-up time:	200ms,50ms,20ms
Withstand voltage:Input and output internal:	1.5KvAC,Output and enclosure:0.5KvAC
Isolation resistance:	Input and output internal,input and enclosure,output and enclosure:500VDC/100MΩ
Working temperature	0~50°C
Safety standards:	GB4943 UL60950 EN60950
EMC standards:	EN55022 GB9254,class A
Overall dimension:	159*97*38mm
Weight:	0.56Kgs
