| Prod Model: |
LX-75FLA |
| HS Code: |
8504401400 |
| Usage: |
Light |
| Output Type: |
Single |
| Driving Method: |
LED Constant Current |
| Circuit Structure: |
PWM Controlled |
| Brand: |
N/a |
Product Description
Overview Quick DetailsPlace of Origin:Gangdong, China (Mainland)
Brand Name:OEM
Model Number:LX-75FLA
Output Power:51 - 100W, 75W
Output Type:Single
Input Voltage:220V
Output Voltage:32-54V
Output Frequency:50/60Hz
Output Current:940-2340mA
Product Name:75w Dimmable Constant current led driver DALI Zigbee WIFI Bluetooth
Dimming:0~10V/ PWM/ Timer, Dim-to-off option
Application:LED tri proof light and LED linear light Consant Current led driver
Warranty:3 years
Type:Consant Current and voltage hybrid output
Efficiency:max 90%
Material:aluminum housing
Certification:CE ROHS UL
Packaging & DeliveryPackaging Details
25pcs/cartonDelivery Time
15 daysProduct Description
75W Smart Dimmable LED Driver by Zigbee wifi DALI bluetooth controlFeatures:- Slim Outline, 29mm Height |
- Ultra low THD at light load |
- Optional Dimming Interface: DALI/WIFI/BLE |
- Dim-to-off Option |
- EN 61347-1, EN61347-2-13 |
- Linear/Log Dimming Curve Programmable |
- 0-10V/PWM Dimming |
Electrical Specifications:Output Voltage Range Without Dimming | Programmable Constant Voltage Region | DIMMING INTERFACE | Maximum Output Power | Input Current | Power Factor | Efficiency | Line Regulation | Load Regulation | Ripple & Noise |
32-54V | 32-54V | DALI BLE WIFI Zigbee | 75W | 0.7A(120VAC) 0.38A(230VAC) | 0.98 | >90% | ±3%Vo | ±3%Vo | 2.0%Vo |
PROTECTION | OVER CURRENT | 105~ 110% |
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
SHORT CURRENT | Hiccup mode, recovers automatically after fault condition is removed |
OVER TEMP. | Hiccup mode, recovers automatically after fault condition is removed |
ENVIRONMENT | WORKING TEMP. | -25 ~ +50ºC |
WORKING HUMIDITY | 20 ~ 95% RH non-condensing |
STORAGE TEMP., HUMIDITY | -40 ~ +85ºC, 10 ~ 95% RH |
TEMP. COEFFICIENT | ±3%ºC |
VIBRATION | 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes |
General Information:LED Driver Type | Constant Voltage/Constant Current |
Maximum Wattage | 75W |
Input Voltage | 90-305 VAC |
Input Frequency | 47 ~ 63 Hz |
Total Harmonic Distortion | <10% |
WARRANTY | 5 year limited warranty |
Inrush Current | 30A at 230VAC cold start +25ºC |
MTBF | >200kHrs to MIL-HDBK-217 at25ºC,GB |
Protection | Overload/Over temperature/Short circuit protection |

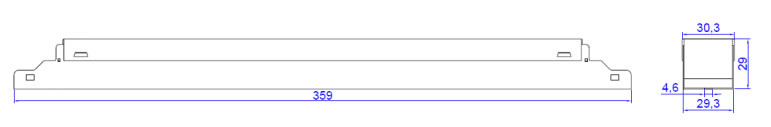

Mechanical Specification:

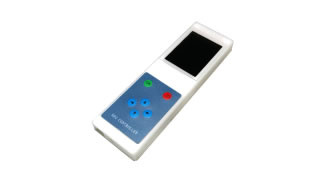

NFC PROGRAMMER USE GUIDE:-The NFC controller can modulate the output current and output voltage.
-Non-contact process, therefore much safer compared to traditional ones.
-Power devices can be programmed without power on.
-Timer dimming.
-Dim to off option.
STEP1:Setting NFC Controller Set desired output parameter to your controller.Select{4.Transmit},
and press OK bottom once to complete the setting.Setting accuracy is 1mA,or 1V.
STEP2:One key programming Put controller on the "signal receiver"window,and press"OK"bottom,the controller displays PASS,and programming is successfully completed.
Packaging & Shipping
| Weight | 1.4KG |
| Quantity | 25pcs/carton |
Our Services
Strong R&D capability
R&D department that understands the total Lighting Solution
- We understand the Driver and the Fixture
- Quick, robust and cost effective power designs
- Compliance with Safety, Emission and Green standards
• UL, CE, PSE, FCC, TUV, CCC, KC
• Energy Star and ErP Directive
- Strict Adherence to our Engineering Quality Process
- Professional team focus on LED driver more than 8 years.
- Main attention is in the field of smart lighting control include indoor and outdoor lighting control
Custom Made Easy
- Short Product Develop lead time
- Open frame or in-case designs
- Cable/connector integration capability
- Drivers that fit your needs!

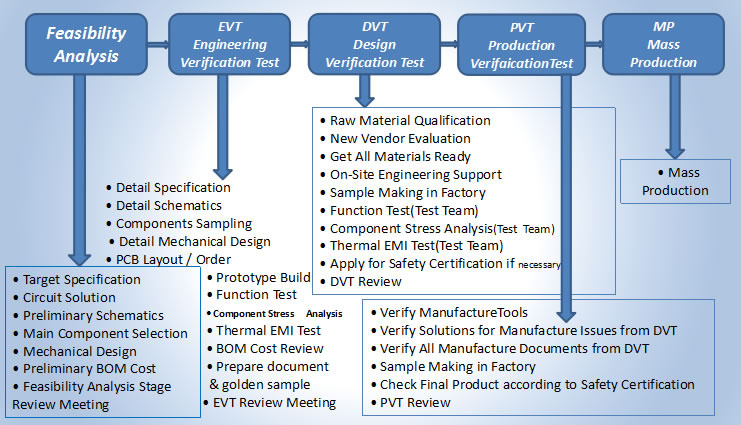

Complete R&D Progcess
Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.
We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.
We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
