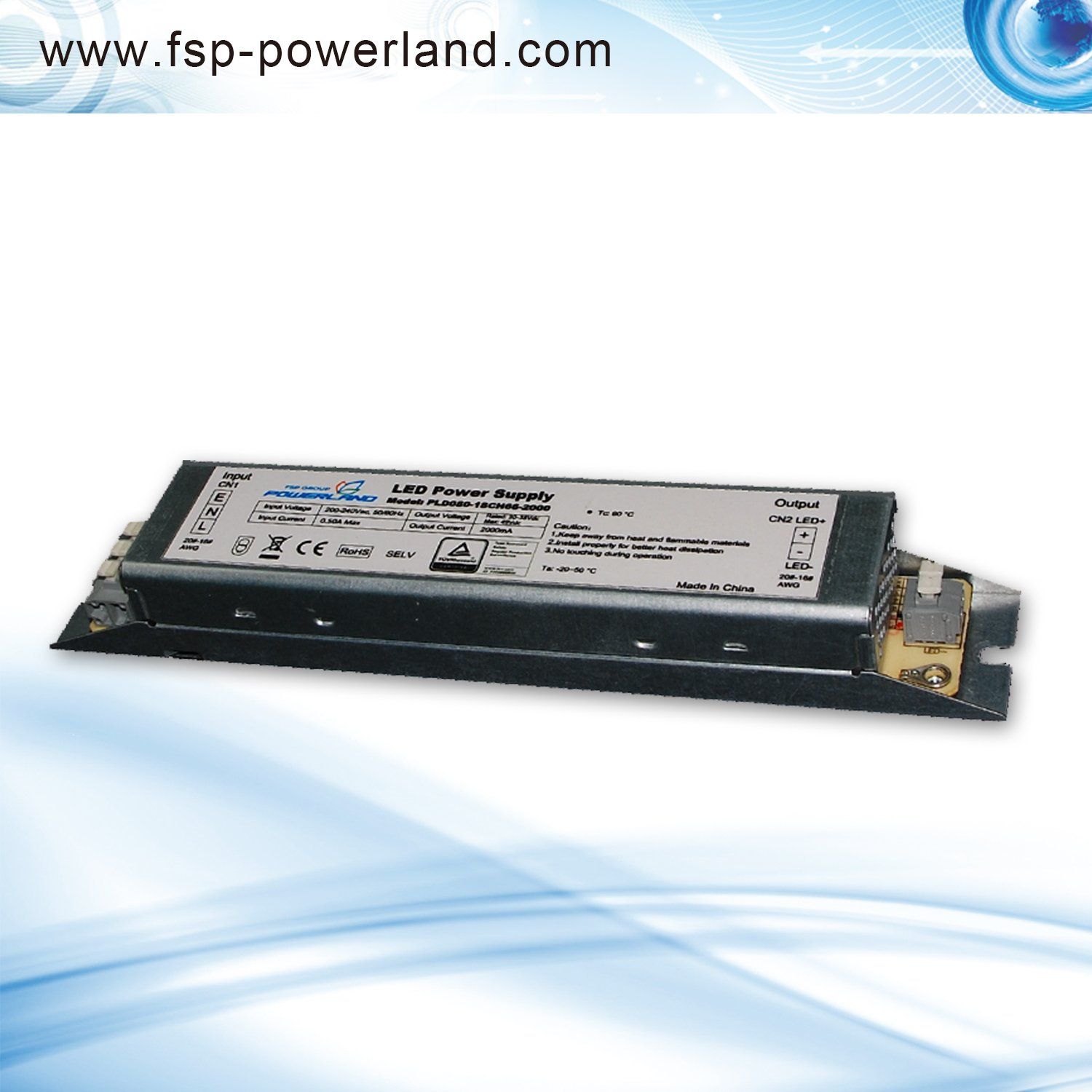

76W 2.0A Constant Current LED Power Supply with EU AC Input

Name: 76W 2.0A Constant Current LED Power Supply with EU AC Input
Brand: all-electronics-online.com
SKU: 813890335
Availability: InStock
Rating: 4.4 (102 reviews)

Price:	US $ 5.5-8.3/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	PLD080-1SCH66-2000
Output Power:	76W
Usage:	Construction
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	PWM Controlled
Power Supply Voltage:	180~264VAC
Pack Sealing Size:	176X41X30 mm
Brand:	Fsp-Powerland

Product Description

76W 2.0A Indoor Constant Current EU LED Power Supply

PLD080-1SCH66-2000 offers 76W constant current drivers with 180~264Vac input.
The output current of this series is up to 2.0A, and designed for indoor applications.

Applications
Indoor LED lights
Downlights, spotlights, LED panels

Features
50,000 hours lifetime at 60ºC Tcase
3years warranty at 60ºC Tcase
Constant current output
Safety according to EN61347-1
EMC according to EN55015
Lightning, OVP, SCP, & Open Circuit ProtectionElectrical Specification

Electrical Specifications

Model	PLD080-1SCH66-2000
Output Voltage	30~40V
Output Current	2.0A
Output Power	76W
Max. Current Ripple	1200mA
Voltage Range	180~264Vac
Frequency Range	47~63Hz
Max. Input Current @ 230Vac	0.5A
Max. Input Power	91W
Min. Power Factor	0.94
Efficiency	90%
Max. Open Circuit Voltage	49V
THD	<20% @ 230Vac & 80~100% load
Protections	OVP, OCP, SCP
Environmental Protection	IP20
Working Temperature	-25~+50ºC
Max. Case Temperature	90ºC
Surge Protection	1kV/2kV
Agency Approbations	EN61347-1
Electromagnetic Compliance	EN55015
Ansi Surge Type	1.2/50μs Combination Wave (w/t 2Ω)
Isolation	Primary to Secondary: 3750Vac / 10mAMax / 60seconds
Dimension	176x41x30 mm
Mounting Length	222 mm
Overall Length	232 mm
Weight	0.31 kg
Life Time	50,000 hours @ full load, 60ºC Tcase

* Unless otherwise noted, the data are based on 25ºC ambient temperature, 230Vac input voltage, and full load.
