77zyt130 24VDC 0.5n. M 167W DC Motor

Name: 77zyt130 24VDC 0.5n. M 167W DC Motor
Brand: all-electronics-online.com
SKU: 613099754
Availability: InStock
Rating: 4.8 (74 reviews)

Price:	US $ 15-19/Piece
Trade Terms:	FOB,CIF,CIP
Min Order:	50/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	77ZYT130-2437
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	77zyt130-2437
Voltage:	24VDC
Rated Current:	7.4A
Rated Speed:	3200rpm
No-Load Speed:	3700rpm
Rated Torque:	0.5n.M
Power:	167W
Structure And Working Principle:	Brush
Operating Speed:	Adjust Speed
Application:	Power Tools
Excitation Mode:	Excited
Brand:	Sunrise Motor
Type:	PMDC Motor

Product Description

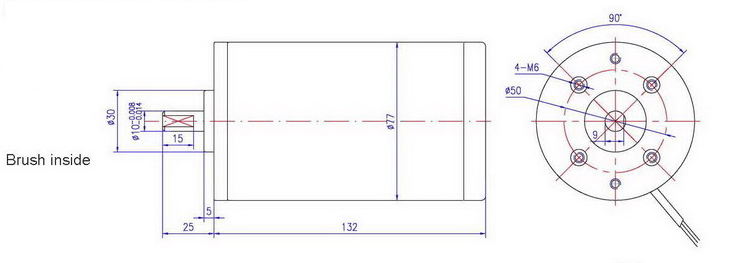

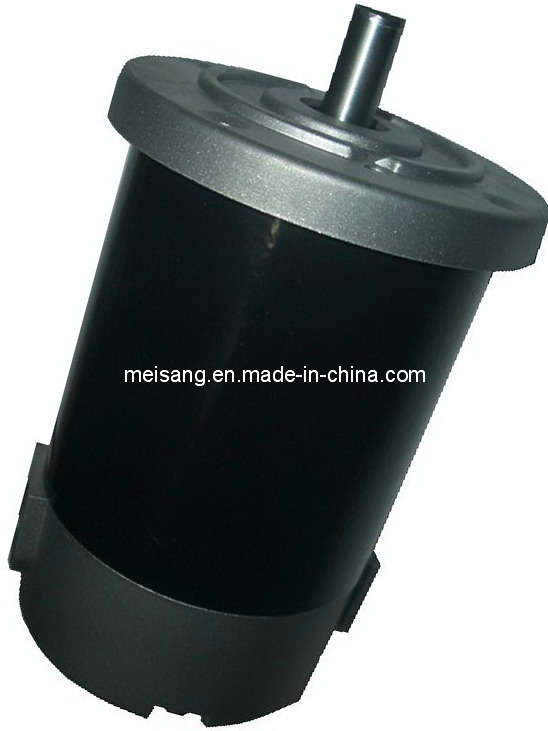

PMDC MOTOR 77ZYT Series
MODEL: 77ZYT130-2437
Voltage: 24V
Rated Torque: 0.5N, m,
Rated Current: 7.4A,
Speed:3200rpm,
No-load speed: 3700rpm
Power: 167W
Lenght: 130mm
Specail motors can be customized per your requirements.
Bearing option: Ball bearing and sleeve bearing.

Model	Voltage (V DC)	No Load		Rated Load			Length (mm)
Model	Voltage (V DC)	Current (A)	Speed (r/min)	Torque (N. m)	Current (A)	Speed (r/min)	Length (mm)
77ZYT103-1211	12	0.3	1100	0.23	3	800	103
77ZYT122-1240	12	1.2	4000	0.50	16	3500	122
77ZYT132-2434	24	0.7	3400	0.70	8	3000	132
77ZYT130-2437	24	0.7	3700	0.50	7.4	3200	130
77ZYT135-1226	12	1.2	2600	0.60	13	2100	135
77ZYT150-2434	24	0.7	3400	0.70	11	3000	150

Changzhou Sunrise Electric Motor Company was founded in 2004 and is located about 200 km west of Shanghai. SUNRISE ELECTRIC MOTOR manufacture and export PMDC motors, BLDC motors, Hybrid Stepping motors with high torque output (0.2N. M - 28N. M), and customized motors which are per customers' drawings, specification and technical requirements. Also, we source and customize products associated with electric motor applications such as, motor controllers and drivers, motor sensing boards (PCB), etc.

The motors introduced can be used for commercial and residential applications such as industrial automation, office equipment, appliances for household, etc.

The motors listed have been exported overseas through our sales representatives in North America and Europe.
