7D-Fb Coaxial Cable for CDMA Telecommunication System

Name: 7D-Fb Coaxial Cable for CDMA Telecommunication System
Brand: all-electronics-online.com
SKU: 705234522
Availability: InStock
Rating: 4.3 (60 reviews)

Price:	US $ 0.01/Meter
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	7D-FB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Inner Conductor:	Bare Copper
Impedance:	50ohm
Application:	RF Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	RoHS
Type:	7D-Fb
Model:	7D-Fb
Brand:	Libo or OEM

Product Description

Detailed Product Description

Bare Copper 7D-FB Coaxial Cable , PVC Jacket 50 Ohm Cable for CDMA Telecommunication System

Applications

7D-FB coaxial cable is used in 3G, GSM, and CDMA telecommunication system, digital microwave communication system, and aeronautics and space industry, precise instrument.

Description:

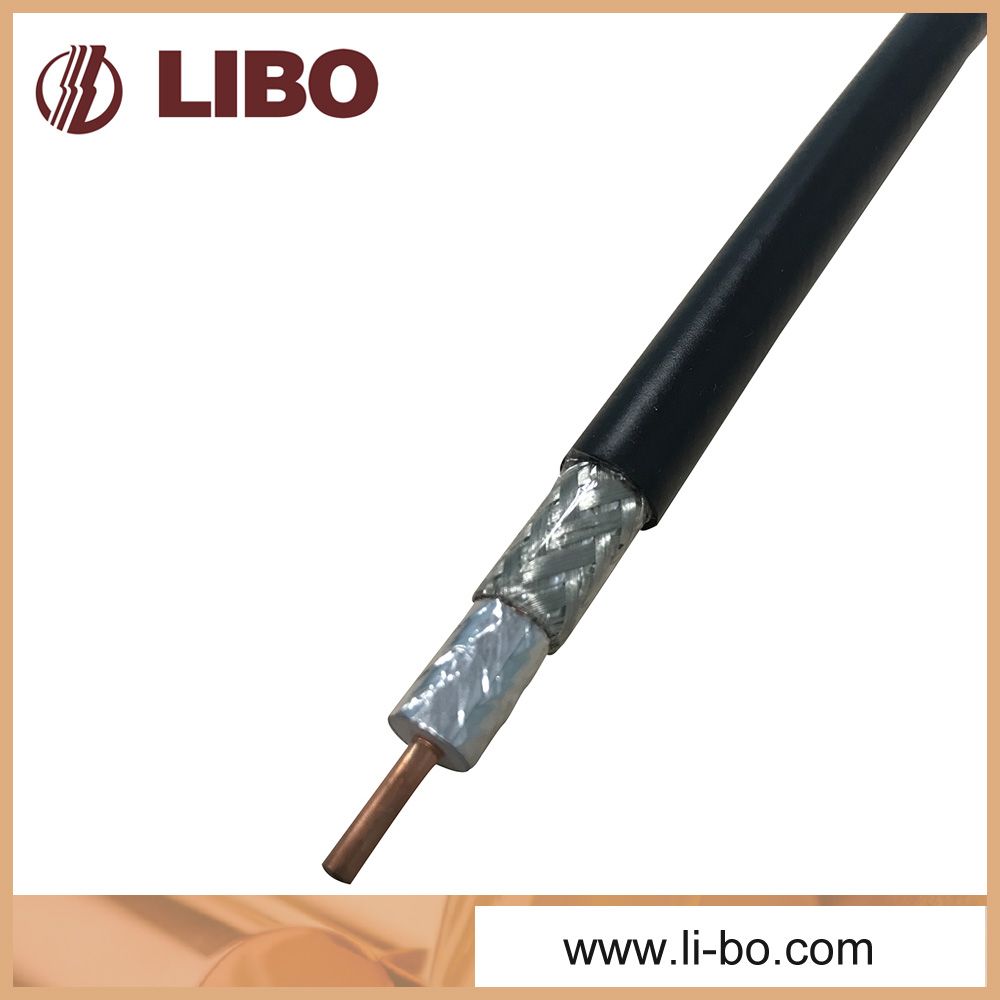

7D-FB coaxial cable, bare copper as inner conductor, Dielectric core is insulating grade virgin polyethylene, AL foil+ tinned copper wire as shield, PVC or PE for outer jacket.

Specifications:

construction	Testing item			Unit	Standard
	Inner conductor	material		-	Bare Copper
	Inner conductor	diameter		mm	2.60+/-0.01
	Dielectric	material		-	foamed PE
	Dielectric	diameter		mm	7.30mm
	1^st shield, tape	material		-	BAPA
	2^nd shield, braid	material		-	Tinned copper wire
Electrical properties	2^nd shield, braid	coverage		%	85%
	jacket	PVC		mm	9.800+/-0.2mm
	Nominal velocity of propagation			%	82%
	Capacitance			pF/M	84
	Characteristic impedance			Ω	50 +/-3
	V.S.W.R				1.25
	Attenuation 20ºC(max)		150MHZ	dB/100m	5.40
			200MHZ		6.30
			280MHZ		7.50
			350MHZ		8.40
			400MHZ		9.00
			800MHZ		12.80
			900 MHZ		14.10
			1200 MHZ		16.80
			1500 MHZ		19.20
			1900 MHZ		22.40
			2000 MHZ		23.20
			2400 MHZ		25.70
			3000 MHZ		29.50

Competitive Advantage:

Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, our production and testing procedures are all strictly follow requirement of ISO9000, and ISO14000.
Libo cable is equipped with a Provincial-level Research and Development Center; we offer OEM and ODM services.

Shaoxing is a place propitious for giving birth to great men and a place endowed with the fine spirits of the universe. The towering Jishan Mountain and flowing Jianshui River nurture the prosperous civilization of this famous historic and cultural city.

About 2500 years ago, Pingshui at the foot of Kuaijishan Mountain had been the manufacturing base of bronze weapons for the ancient kingdom of Yue. Stories of Rizhu Mountain that got the name from the sword-casting in one day by Ou Yezi, as well as the Sanzao (Three Furnances) of Shangzao, Zhongzao and Xiazao, have been widely told by generations. Now, relying on the innovative technology and ideas and top-class quality, Libo Group of Shaoxing is leading the new trend of copper and aluminum processing.

Libo Group is a nationally recognized Hi-Tech Enterprise specializing in copper and aluminum processing, electronic wire and cable, machinery manufacturing, new energy materials and real estate development, including 12 subsidiaries and 2000 employees. It is one of the 500 largest private enterprises in China and has been awarded Advanced Labor and Social Security Enterprise and a Key and Major Enterprise in Shaoxing. "Libo" has been the Well-known Trademark of China.

Libo Cable is subsidiary of Libo Group, it is specialized in the manufacturing of physical-foamed RF coaxial cable, seamless aluminum tube trunk cable, leaky feeder cable, solar PV ribbon and cable. With the advanced physical high-foam production lines and continuous-extruding seamless aluminum tube production lines, it now possesses the yearly capacity of 60, 000 km of coaxial cables, with the world-class quality. Products have been certified by UL and CE and exported to European and American market. The solar PV ribbon and cable makes use of the oxygen-free copper strip as the blank and it possesses the excellent electric conductivity and favorable solder ability and flexibility, which has been favored by the majority of users.
