7s 12A PCM BMS for Li-ion Li-Poly Battery Pack with Balancing

Name: 7s 12A PCM BMS for Li-ion Li-Poly Battery Pack with Balancing
Brand: all-electronics-online.com
SKU: 733802062
Availability: InStock
Rating: 4.6 (59 reviews)

Price:	US $ 9.5/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Battery Series:	7s
Over-Discharge Voltage Protectio:	2.40V/Cell
Metal Coating:	Copper
Mode Of Production:	SMT
Layers:	Single-Layer
Base Material:	FR-4
Certification:	RoHS
Customized:	Customized
Condition:	New

Product Description

We have over six hundreds of PCM/BMS series products for your choice, most of them widely used for Li-ion battery pack, Li-Polymer battery pack, LiFePO4 battery pack and so on.

Our main PCB/BMS normally adopt imported raw material for reliable quality, IC from Japan, MOS from USA, Components from Sumsang, Almost Zero RMA.

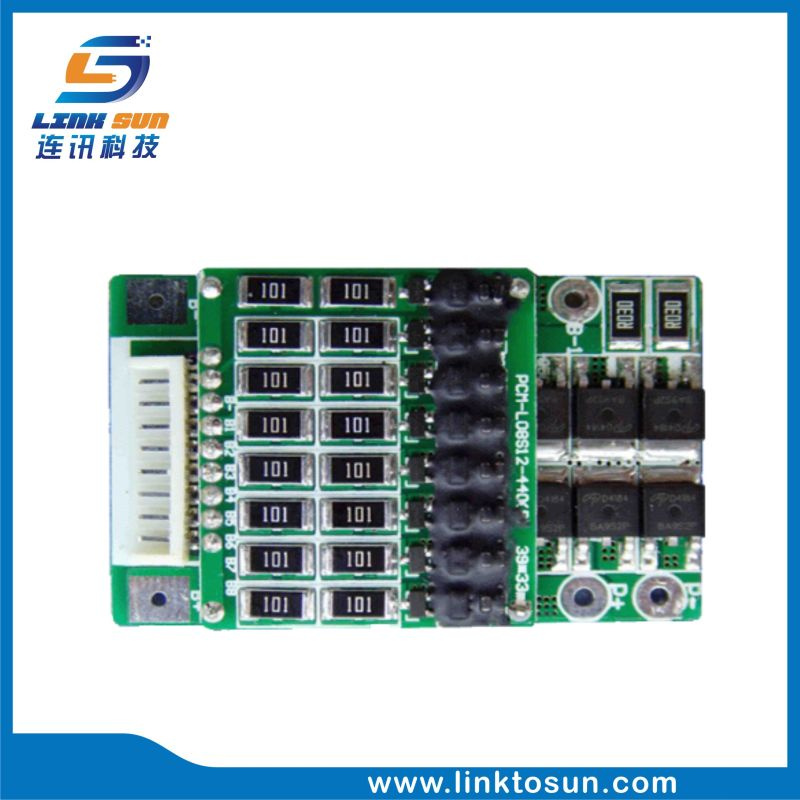

PCM-L08S12-440(7S)
Size:60*39mm

No.	Test item		Criterion (Adjustable)
1	Voltage	Charging voltage	DC:29.4V CC/CV
		Balance voltage for single cell	4.20±0.05V
2	Current	Balance current for single cell	84±10mA
		Current consumption	≤20μA
		Maximal continuous charging current	12A
		Maximal continuous Discharging current	12A
3	Over charge Protection	Over charge detection voltage	4.25±0.025V
		Over charge detection delay time	0.7S-1.3S
		Over charge release voltage	4.05±0.05V
4	Over discharge protection)	Over discharge detection voltage	2.50±0.05V
		Over discharge detection delay time	14mS-26mS
		Over discharge release voltage	3.0±0.1V
5	Over current protection	Over current detection voltage	0.2±0.02V
		Over current detection current	50±10A
		Detection delay time	8ms-16ms
		Release condition	Cut load, Auto release
6	Short protection	Detection condition	Exterior short circuit
		Detection delay time	200-500us
		Release condition	Cut load, Auto release
7	Resistance	Protection circuitry	≤30mΩ
8	Temperature	Operating Temperature Range	-40~+70ºC
		Storage Temperature Range	-40~+70ºC

Lianxun is a subsidiary of Link-Sun International (Hong Kong)Limited. Founded in 2006, is a high-tech enterprise which devotes to develop, design and produce general specifications power supply, such as battery pack, battery chargers, battery boards, LED strip light driver and so on.

We have successfully designed and produced more than 200types of professional PCM/BMS to battery pack, more than 10 models of themwith SMBUS, CANBUS. Thse high quality PCM matched with the high power battery pack were widely used in many digital products. Such as E-Bike, LEV, E-car, E-tooling, LED strips etc.

We have establised good relationship with advanced power chip developing companies, customers all over the world. We also offer specialized design and solution to you to shorten your design construction. To ensure best quality, we are not only equipped with advanced manufacturing facilities, but also with in house strict QC management system, employed well experienced engineering team and skillful workers, so Link Sun can guarantee all the safety of all the products.
