8*10 Size Taping Wirewound Inductor with RoHS

Name: 8*10 Size Taping Wirewound Inductor with RoHS
Brand: all-electronics-online.com
SKU: 812634105
Availability: InStock
Rating: 4.9 (94 reviews)

Price:	US $ 0.01-5/Piece
Min Order:	5000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	LGH
Product Name:	8*10 Size Taping Wirewound Inductor with RoHS
Product Model:	Lgb-X/S-0810-22uh
Environmental Certification:	ISO14001
Safety Certification:	CQC 03003095~3097
Quality Certification:	ISO9001
Other Certification:	RoHS
Type:	Fixed Inductor
Structure:	Inductive Choke
Brand:	Liwang

Product Description

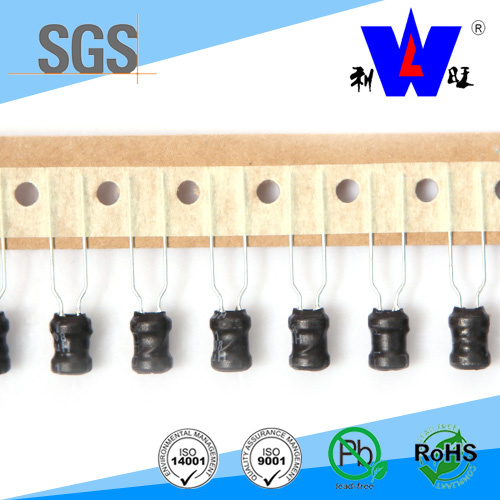

Product description of 8*10 size taping wirewound inductor with ROHS

Applications:
(1) Video cameras.
(2) Portable VCRs.
(3) Audio equipments.
(4) TV tunners.
(5) Switching power supplies.
(6) Other circuits of consideration aganist radiation.

Power Inductors Materials

Component	Materials
1.Core	Ferrite core
2.Wire	Poiyurethane enameled copper wires
3.Lead wire	Tinned copper wires
4.Tube	Heat shrinkable tube,PVC or UL
5.Glue	Epoxy resin

Storage conditions:Do not expose to direct sunlight

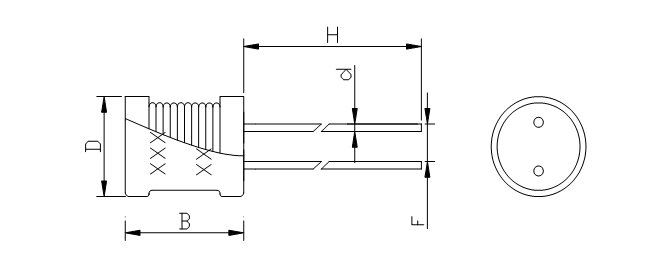

TYPE	D±1	Bmax	F±0.5	d±0.1	H
LGB-X/S0406	4.5	8	2.5	0.5	10min
LGB-X/S0507	5.5	9	2.5	0.6
LGB-X/S0608	6.5	10	3.0
LGB-X/S0810	8.5	12	5.0
LGB-X/S0912	9.5	14	5.0	0.8
LGB-X/S1012	10.5	15	5.0
LGB-X/S1415	14.5	17	7.5

Special sizes, we can mold production.

LGB SERIES LGB-X(S)0810 TYPE CHARACTTERISTICS

PART NUMBER	L(uH)	TOL	Qmin	Fr( MHz)	SRF(MHz)	Rdc(Ω)	Idc(mA)
LGB-S/X0810-272K	2700	±10%	50	0.252	1.0	5.1	60
LGB-S/X0810-332K	3300		50		0.9	6.1	50
LGB-S/X0810-392K	3900		50		0.8	7.8	50
LGB-S/X0810-472K	4700		55		0.7	11	45
LGB-S/X0810-562K	5600		55		0.6	11	45
LGB-S/X0810-682K	6800		55		0.6	14	40
LGB-S/X0810-822K	8200		60		0.6	15	35
LGB-S/X0810-103K	10000		100	0.0796	0.5	20	35
LGB-S/X0810-123K	12000		100		0.4	24	35
LGB-S/X0810-153K	15000		100		0.4	28	30
LGB-S/X0810-183K	18000		100		0.4	42	30
LGB-S/X0810-223K	22000		100		0.3	43	25
LGB-S/X0810-273K	27000		100		0.3	55	25
LGB-S/X0810-333K	33000		90		0.3	65	25
LGB-S/X0810-393K	39000		90		0.2	87	20
LGB-S/X0810-473K	47000		85		0.2	98	20
LGB-S/X0810-563K	56000		80		0.2	128	20
LGB-S/X0810-683K	68000		70		0.2	141	20
LGB-S/X0810-823K	82000		70		0.2	161	20
LGB-S/X0810-104K	100000		55		0.2	180	20

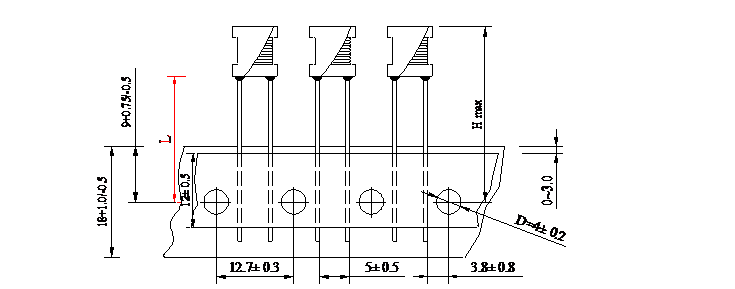

Standard Taping diagram

Note:Standard taping, only LGB-X0608; 0810; 0912 apply.

Our Features

(1)Fastest Lead Time

(2)Low Minimum Order

(3) Regular purchase with competitive prices and reliable supply

(4)Warranty is A Least 8 Months

(5)New Original & PB Free

Payment Information

1. T/T (Wire Transfer)

2. WESTERN UNION

3. L/C

If you have any other questions please feel free to contact us in any time !

AII products of the size,electronical performance can be designed. If you have any questions or requirements, please contact us freely in any time.

Our product will the best choice for you.
Welcome to provide us your specifications. We will submit the best quotation shortly.
Don't hesitate to contact us, we will try our best to satisfy with you within our capability.

================================================

Changzhou Southern Electronic Element Factory Co., Ltd. is located in China, with a long history. We enjoy convenient transportation by highway, railway and airway. It takes only one and half hours' Drive to Shanghai or Nanjing.

Our company was founded in 1989, and currently we employ more than 300 people, including 60 professional technicians, covering an area of 10, 000 square meters, with a construction area of more than 5000 square meters. Our main products are wirewound resistors, wirewound resistor fuses, membrane fuse resistors, fixed inductors, filters, ferrite transformers, ring-shaped coils, fuse dedicated energy-saving lamps and UL fuses. Our annual output is 200 million resistors, 200 million transformers, 100 million coils and 200 million fuses, which are mainly used for household appliances, communication equipment, energy-saving lamps, automation control devices (such as inverters), power equipment and facilities. Our products are exported to Europe, the United States and Southeast Asia. GE, OSRAM and PHILIPS are our customers.

Factory' S quality policy: "product quality, service in advance, customer satisfaction".

Environmental policy: "to comply with laws and regulations, pollution prevention, environmental awareness, continuous improvement of the environment
