| Prod Model: |
MTP/MPO Patch Cord |
| Connector: |
MTP/MPO |
| Product Name: |
MTP/MPO Patch Cord |
| Cores: |
8-144 |
| Cable: |
OS2/Om3/Om4 |
| MTP Insertion Loss: |
≤ 0.5dB |
| LC Insertion Loss: |
≤0.2dB |
| MTP Return Loss: |
≥20dB |
| LC Return Loss: |
≥35dB |
| Application Qsfp: |
40gbase-Sr4 |
| Data: |
10g, 40g |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
MTP-LC |
Product Description
8/12/24 cores OS2/OM3/OM4 Fiber Optic MTP/MPO Patch CordDescription:MTP/MPO Patch Cord with 8-96 cores, compatible for round cable or flat cable, Single mode and Multimode are available, male connector and female connector are available.
1. CABLE Quality Assurance System:
* Test Specifications for Bellcore GR-409-core
* Smoke density Purpose IEC-61034
* Halogen Acid Content IEC-754-1
* Flame Resistance IEC 60332-1, IEC 60332-3
* Conform to WEEE RoHS standard.
2. Fiber Type: Single-mode/Multi-mode
Fiber Count: 8-96 cores
Cable Type: Bare fiber/Flat/Round
3. Application:
* CATV* Active dvice termination*Telecommunication networks* Metro* Local Area Networks(LANs)* Data Processing networks* Test Equipment* Premise installations* Wide Area Networks(WANs)Fiber Optic Performance: | Item | Parameter |
| MPO/MTP Connector | Standard SM | Low Loss(Elite) SM | Standard mm | Low Loss mm |
| Insertion Loss | Typical | 0.35dB | 0.20dB | 0.35dB | 0.20dB |
| Maximum | 0.75dB | 0.35dB | 0.60dB | 0.35dB |
| Return Loss | ≥60 for APC (8 Angle Polish) | ≥20 for PC |
| ≥50 for PC | -- |
| Male/Female | Male: With Pins, Female: Without Pins |
| Tensile Strength | ≤0.3 (Max 66N) |
| Vibration | ≤0.3 (10 ~ 55Hz) |
| Thermal Cycle | ≤0.3 (-40 ~ 75ºC, 21Cycles) |

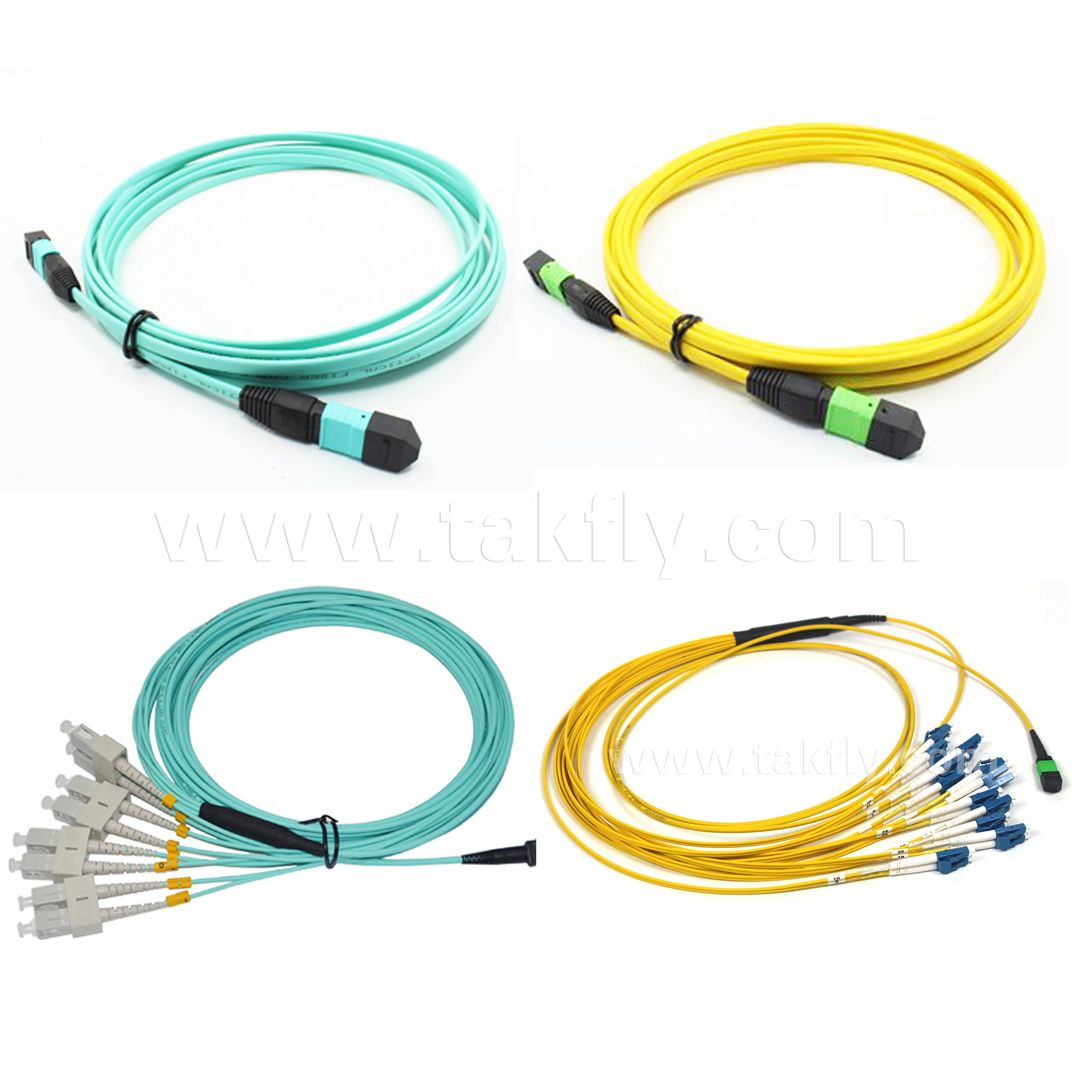

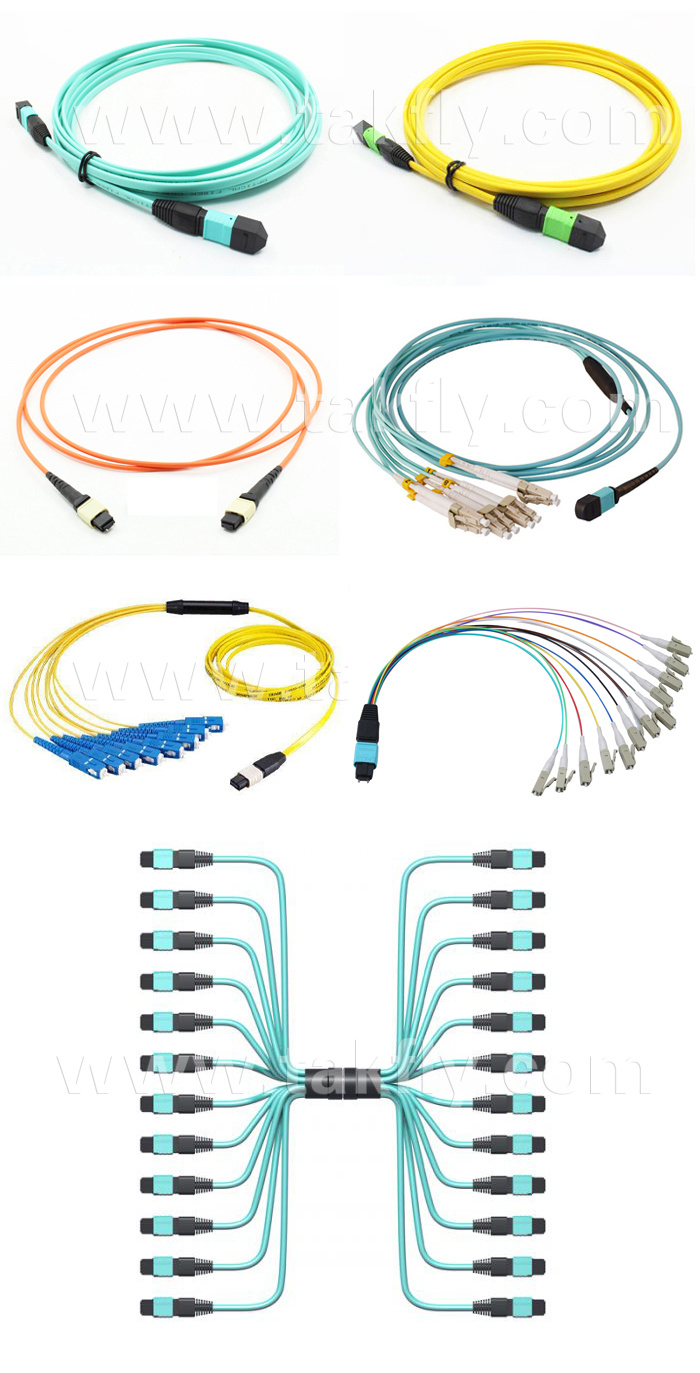

Product Photos:
FAQ:1.Are you the real factory
Yes,we are the real factory with 15 years' history.
2.What is your main products
fiber optic Adapter/Connector/Patch Cord,MPO/MPT series,MTO/MPO 40G AOC and CXP series,CWDM/DWDM/FWDM series,PLC/Coupler series,SFP module,Fiber media converter,fiber optical vedio converter,Industrial Switch,Splice Clousuer,optic Patch Pannel.
3.Do you have certificate for raw material ?
We build long-term relationship cooperation with qualified ISO9001, RoHS,CE,FCC,UL and so on.
4.What is your delivery time?
Within 24 hours for 30KM normal kinds of fiber optic cable;
1 ~2 days for fiber optic patch cords with 10000 connectors.
5.MOQ: what is your minimum quantity
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there's stock for normal kinds.
6.Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7.Payment:
For large orders: T/T, L/C
For small orders: T/T,Western Union,Money Gram and Paypal are acceptable.
8.Shipping & Delivery:
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services,any of which is optional.
Certificatioins:
Exhibition:

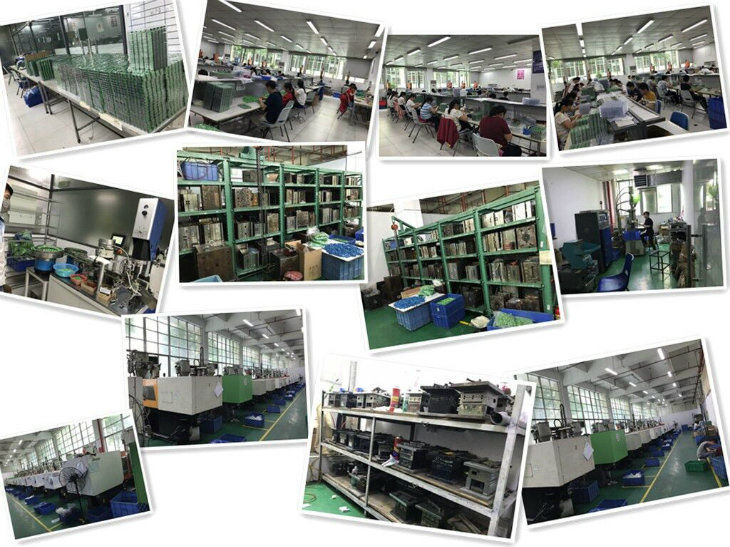

Workshop:
Contact:
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
