8/12/24 Cores Om3 MTP/MPO-LC Fanout Patch Cable

Name: 8/12/24 Cores Om3 MTP/MPO-LC Fanout Patch Cable
Brand: all-electronics-online.com
SKU: 694800262
Availability: InStock
Rating: 4.5 (37 reviews)

Price:	US $ 1-10/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO/MTP Patch Cord
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cores:	12/24 Cores
Cable:	Om3 mm Aqua
MPO Insertion Loss:	≤0.35dB
LC Insertion Loss:	≤0.3dB
MPO Return Loss:	≥60dB
LC Return Loss:	≥60dB
Application Qsfp:	40gbase-Sr4
Connector:	LC/Sc/St/E2000 Simplex/Duplex
OEM:	Available
Patch Cord Diameter:	2.0mm
Application:	Communication
Type:	Multi-mode Fiber
Certification:	ISO14001,ISO9001,UL,FCC,etc
Connection Structure:	MPO-LC

Product Description

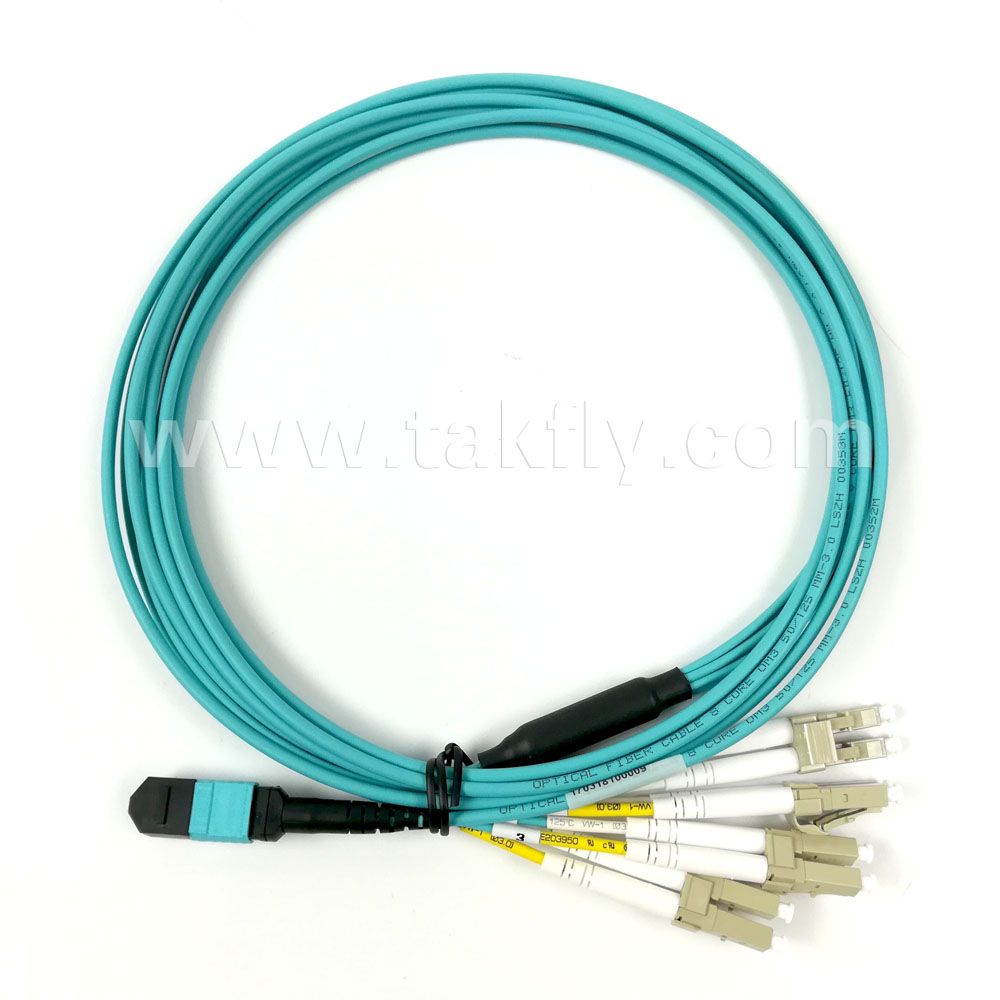

8/12/24 Cores Om3 MTP/MPO-LC Fanout Patch Cable

General Details:
Takfly MPO/MTP to LC SM/MM Fan-out/Breakout Harness cable assembly is mainly used for 10G/40G/100G, The LC fan-out cable with 2.0mm/3.0mm branch cable, the LC side could adopts uni-boot/single boot Duplex LC or dual boot duplex LC connector. The Harness MPO/MTP cable supports polarity support both type A and type B.

Features:

Fiber pre-position (AB/BA)
Compact size, easy to manage
LC/SC/ST/E2000 simplex/duplex connector available in single fiber connector interface
MPO/MTP connector with 12 or 24 fibers
Corning fiber available for selection
Rugged fan-out: Round fan-out cable jacket with 2.0mm diameter
Customized fan-out cable length to cater for different installation situations

Application:

Data Center Infrastructure
High Density Fiber Cabling System
High integrated instrument and components
High Precision Communication Device

Specification:

MPO/MTP Connectors

Optical Parameters
Insertion Loss (dB)	SM Standard		SM Elite	MM Standard	MM Elite
	≤0.7		≤0.35	≤0.5	≤0.35
Return Loss (dB)	≥60(APC)	≥50(PC)		≥30
Durability (dB)	≤0.2 500 times mating
Tensile Strength (kgf)	10
Working Temperature (ºC)	-40 ~ +85
Measurement Wavelength (nm)	1310/1550			850
Avg. Fiber Height Error (nm)	-300			+300
Central Concave (nm)	300

LC Fiber Connector

Fiber Mode	Single Mode		Multimode
Connector Polishing	PC	APC	PC
Insertion Loss(dB)	≤0.3
Return Loss (dB)	≥50	≥60	≥35
Repeatability (dB)	≤0.2 1000 times mating
Working Temperature (ºC)	-40 ~ +85
Measurement Wavelengths (nm)	1310/1550		850

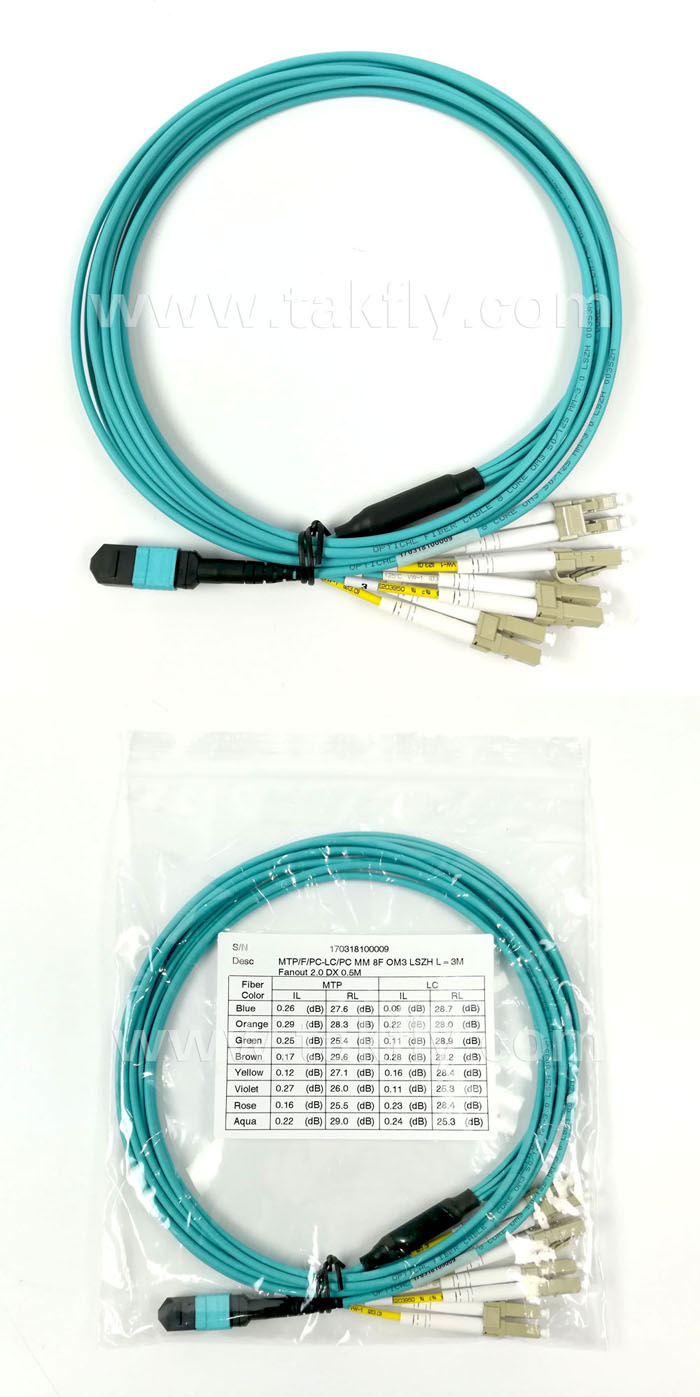

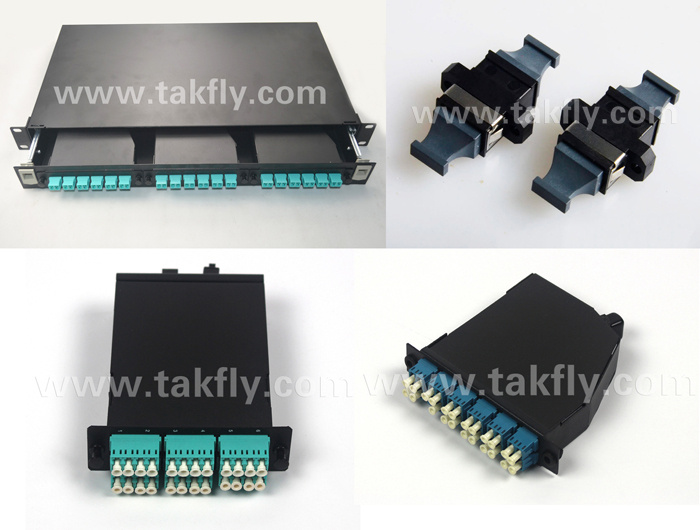

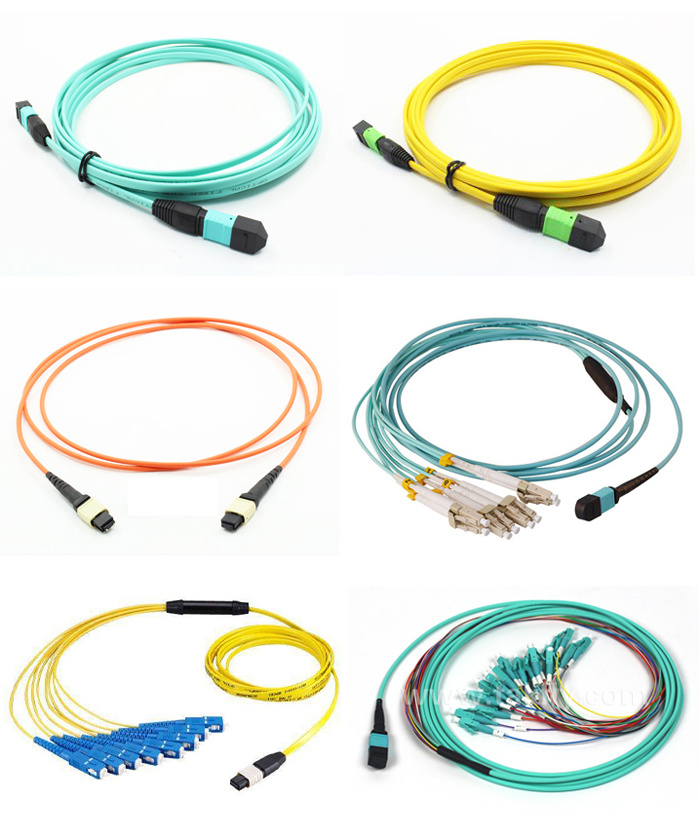

Product pictures:

Certifications:

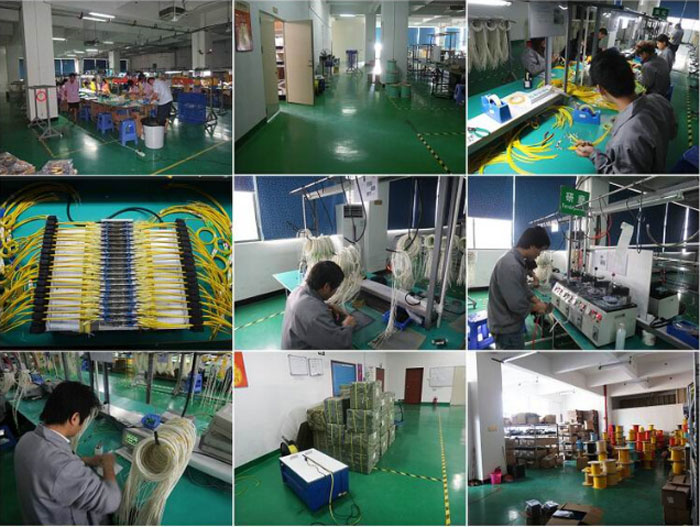

Workshop:

Contact:

Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.

Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
