| Prod Model: |
Takfly-50 MPO MPT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
MTP/MPO Patchcord |
| Model No: |
Nf-FC/PC-FC/PC-Mm |
| Cable Type: |
Single Mode/Multimode |
| Connector Type: |
Sc, FC, St, LC, MTRJ,MPO, MTP, Mu, E2000 and etc. |
| Color Of Cable: |
Yellow (Sm)/Orange (Mm)/Aqua (Om3) |
| OEM/ODM: |
Acceptable |
| Fiber Type: |
G652D/G655/G657 |
| Warranty: |
2 Years |
| Certfication: |
CE/UL |
| Application: |
Probe |
| Type: |
Multi-mode Fiber |
| Connection Structure: |
LC |
| Certification: |
CE |
Product Description

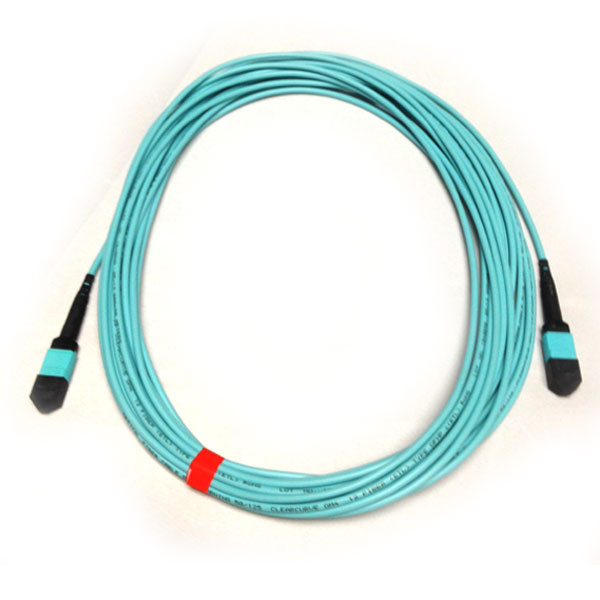

8 12 24 Cores Patch cord Cable MPO MPT
Fiber Optic specialize in: Fiber Optic Patch Cord, Patch Cord, optical fiber patch cord, optical patch cord, Fiber Patch Cord, Fiber Patch Cable, Fiber Optic jumper, Optical Fiber jumper, sc patch cord, singlemode patch cord.
Fiber Optic Patch Cord
Connector Type available: SC, FC, ST, LC, MTRJ, MPO, E2000 and so on.
Cable type: Singlemode and Multimode
Jacket Color: Orange, Yellow, white, Green, Purple, Violet, Gray and so on.
Insertion Loss≤ 0.2dB
Return Loss ≥ 50dB(UPC)
Exchangeability ≤ 0.2dB
Repeatability(500 matings) ≤ 0.1dB
Tensile Strength ≥ 5kg
Operating Temperature: -20~+70 º C
Storage Temperature: -40~+70 º C
Features
Low insertion loss, High return loss
User friendly, Compact size
PVC or LSZH Jacket
PC/UPC/APC Polish
Good exchangeability and repeatability
Comply with Telcordia GR-326-CORE Specification
Application:
Optical fiber communication systems
Fiber optic data transmission
Local Area Network (LAN)
Fiber optic CATV
Our Service:
1. Any question will be replied within 24 hours.
2. Professional manufacturer. Welcome to visit our company.
3. Warranty is Life Time.
4.100% test before shipping.
5. OEM/ODM is available:
1)print logo the products.
2)customized color box.
6. Faster delivery:
2 days for Samples order, 3-7 days for bulk production. | MECHANICAL, ENVIRONMENTAL & MATERIAL DATA |
| Range of Mode | Single or Multimode |
| Cable Type | Simplex or Duplex Zipcord |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000 |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.6mm, 2.0mm, 3.0mm |
| Lengths | Standard & Custom Lengths |
| Strength Member | Aramid Yarn |
| Outer Jacket | PVC or LSZH |
| Cable Assembly Length (<15 meter Tolerance) | -0/+100mm |
| Cable Assembly Length (>15 meter Tolerance) | -0/+10% |
| Jacket Color (Multimode: OM1 & OM2) | Orange |
| Jacket Color (Multimode: OM3 & OM4) | Aqua |
| Jacket Color (Single Mode: G652D & Gb57A) | Yellow |
| Durability | 500 cycles(0.2 dB max increase), 1000 mate/demate cycles |
| Operating Temp. | -20°C to +70°C /+85°C(armoured) |
| Storage Temp. | -40 °C to +85°C |
| Ferrule Concentricity | < 1μm, Other Ferrule Concentricity < 1μm |
| Humidity (FOTP-5) | 90-95% at 40°C |
| Strength of Coupling Mechanism (FOTP-185) | 33 N at 0° for 5 sec |
| Cable Retention (FOTP-6) | 50 N at 0° for 5 sec. |
| Twist (FOTP-36) | 15 N at 0° 5 turns, 10 cycles |
| Flex (FOTP-1) | 0.5 Kg at 25 cm, +90° to -90°, 100 cycles
|
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.
The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communications scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development ---"based in South China, penetrate into whole country, extend over the world". It will bring the fiber optic industry into a brilliant future. TAKFLY--- Your Honest Team, will be always ready for you.
