8 / 12 Cores MPO Harness Fan out Patch Cable Assembly
| Price: |
US $ 1-9.9/Set |
| Min Order: |
1/Set |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
MPO Harness cable Assembly |
| Polishing Connector: |
MPO (mm),MPO APC,Sm (Sc, LC, FC, MT-RJ),mm (Sc, LC |
| Fiber Cable Type: |
Single Mode: G652D or G657A; Multimode: Om1, Om2, |
| Cable Jacket: |
Ribbon / Fan-out (LSZH / PVC) |
| Patch Cord Pull-out Force: |
5n |
| Features: |
Transition From Trunk Backbone to Fiber Rack |
| Transmission Medium: |
Multimode |
| Structure: |
LC |
| Number Of Cores: |
Multi-Core |
| Ferrule Endface: |
PC(',UPC) |
| Light Source TYPE: |
Passive Fiber Optic Network |
| Connector Type: |
MPO Harness Cable Assembly |
Product Description

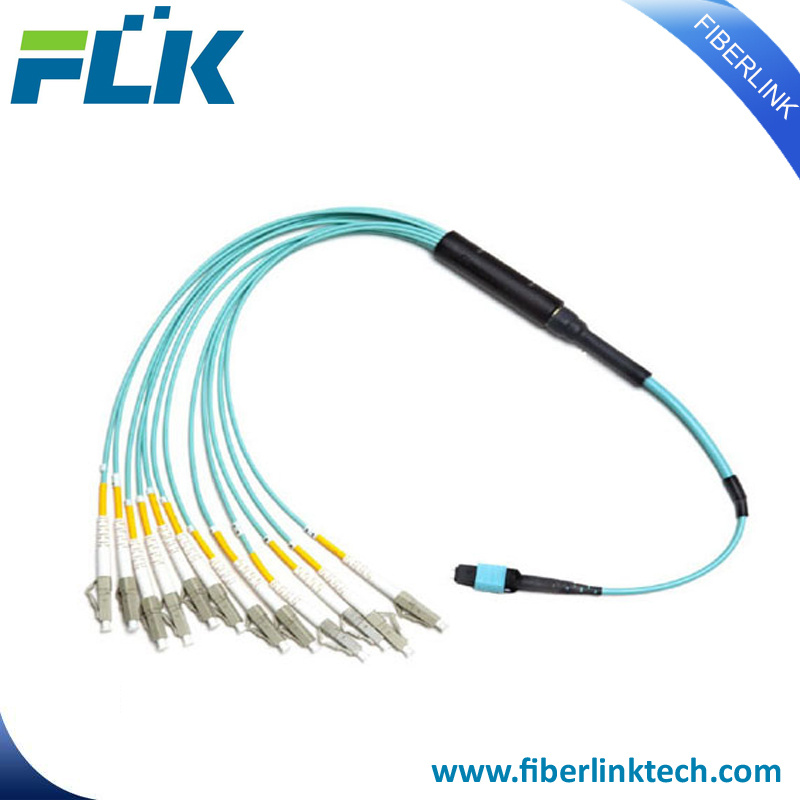

8 / 12 Cores MPO Harness Fan out Patch Cable Assembly
Descriptions
Fiberlink MPO Harness Cable Assemblies are designed for high density applications with require high performance and speedy installation. They are available in lengths are 10, 20, 30 meters, custom lengths are available on request. They are available in 4, 6, 8, or 12 fiber ribbon configurations.
MPO fan-out pigtail is numbered for full traceability. Available in 12 core configuration, these space saving assemblies comes with either MPO Male or MPO Female Connectors on one end and LC, SC, FC, or MT-RJ Connectors on the other end.
Features
·Plug and Play
·Transition from Trunk Backbone to Fiber Rack
·12 Cores Configuration (Custom Order Option)
·65 - 75% space reduction compared to traditional Patch Cords
·MPO harness cable numbered for traceability
·Test Report with each assembly
Optical Specifications| | Polishing Connector (A) | Polishing Connector (B) |
| Polishing Connector | MPO (MM) | MPO APC | SM (SC, LC, FC, MT-RJ) | MM (SC, LC, FC, MT-RJ) |
| Insertion Loss (IL) | < 0.50 dB | < 0.50 dB | < 0.50 dB | < 0.50 dB |
| Return Loss (RL) | > 30dB | > 60dB | > 50dB | > 35dB |
| Mating Cycles Delta IL | < 0.2 dB after 500 mating cycles |
| Fiber Cable Type | Single mode: G652D or G657A;
Multimode: OM1, OM2, OM3; |
| Cable Color | Yellow for SM G652 and G657A fiber;
Orange for MM OM1 and OM2 fiber;
Aqua for MM OM3 fiber; |
| Cable Jacket | Ribbon / Fan-out (LSZH / PVC) |
| Patch Cord Pull-out Force | 5N |
| Operating Temperature | -20°C~+70°C |
| Storage Temperature | -40°C~+80°C |
Bare Fiber Colors
| No | 8 Ribbon fiber | No | 12 Ribbon fiber | No | 24 Ribbon fiber |
| 1 | Blue | 1 | Blue | 1x13 | Blue |
| 2 | Orange | 2 | Orange | 2x14 | Orange |
| 3 | Green | 3 | Green | 3x15 | Green |
| 4 | Brown | 4 | Brown | 4x16 | Brown |
| 5 | Gray | 5 | Gray | 5x17 | Gray |
| 6 | White | 6 | White | 6x18 | White |
| 7 | Red | 7 | Red | 7x19 | Red |
| 8 | Black | 8 | Black | 8x20 | Black |
| | Yellow | 9 | Yellow | 9x21 | Yellow |
| | Violet | 10 | Violet | 10x22 | Violet |
| | Pink | 11 | Pink | 11x23 | Pink |
| | Aqua | 12 | Aqua | 12x24 | Aqua |
Order Informations| P/N | Descriptions |
| FO-MPOmA-12LC-S62 | MPO Fan-out patch cord, OS2 (G652D), MPO/APC Male-12xLC UPC 1m Yellow |
| FO-MPOmA-62LC-S62 | MPO Fan-out patch cord, OS2 (G652D), MPO/APC Male-6xDuplex LC UPC 1m Yellow |
| FO-MPOmA-12SC-S62 | MPO Fan-out patch cord, OS2 (G652D), MPO/APC Male-12xSC UPC 1m Yellow |
| FO-MPOmA-12LC-S67 | MPO Fan-out patch cord, SM (G655A), MPO/APC Male-12xLC UPC 1m Yellow |
| FO-MPOmA-62LC-S67 | MPO Fan-out patch cord, SM (G655A), MPO/APC Male-6xDuplex LC UPC 1m Yellow |
| FO-MPOmA-12SC-S67 | MPO Fan-out patch cord, SM (G655A), MPO/APC Male-12xSC UPC 1m Yellow |
| FO-MPOm-12LC-OM1 | MPO Fan-out patch cord, OM1 (62.5/125um), MPO Male-12xLC UPC 1m Orange |
| FO-MPOm-62LC-OM1 | MPO Fan-out patch cord, OM1 (62.5/125um), MPO Male-6xDuplex LC UPC 1m Orange |
| FO-MPOm-12SC-OM1 | MPO Fan-out patch cord, OM1 (62.5/125um), MPO Male-12xSC UPC 1m Orange |
| FO-MPOm-12LC-OM2 | MPO Fan-out patch cord, OM2 (50/125um), MPO Male-12xLC UPC 1m Orange |
| FO-MPOm-62LC-OM2 | MPO Fan-out patch cord, OM2 (50/125um), MPO Male-6xDuplex LC UPC 1m Orange |
| FO-MPOm-12SC-OM2 | MPO Fan-out patch cord, OM2 (50/125um), MPO Male-12xSC UPC 1m Orange |
| FO-MPOm-12LC-OM3 | MPO Fan-out patch cord, OM3 (50/125um), MPO Male-12xLC UPC 1m Aqua |
| FO-MPOm-62LC-OM3 | MPO Fan-out patch cord, OM3 (50/125um), MPO Male-6xDuplex LC UPC 1m Aqua |
| FO-MPOm-12SC-OM3 | MPO Fan-out patch cord, OM3 (50/125um), MPO Male-12xSC UPC 1m Aqua |

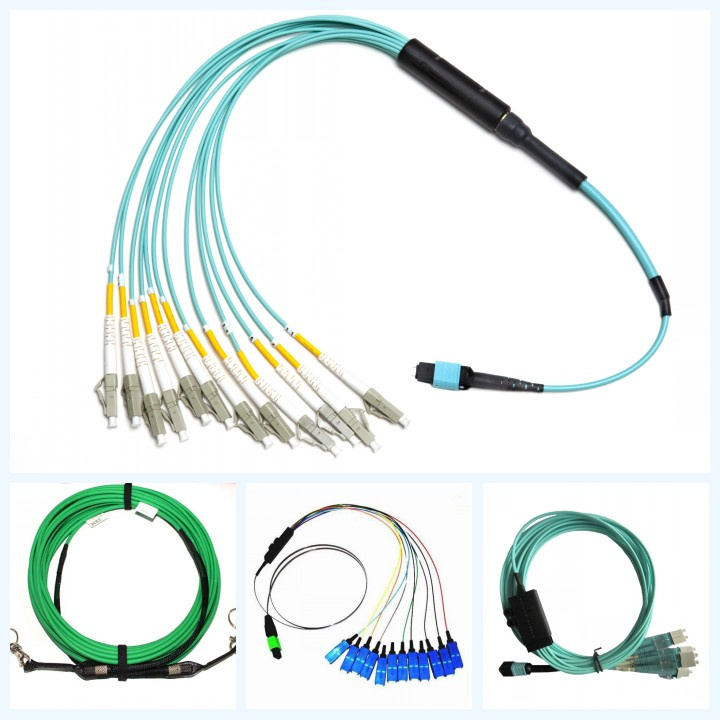

Related products

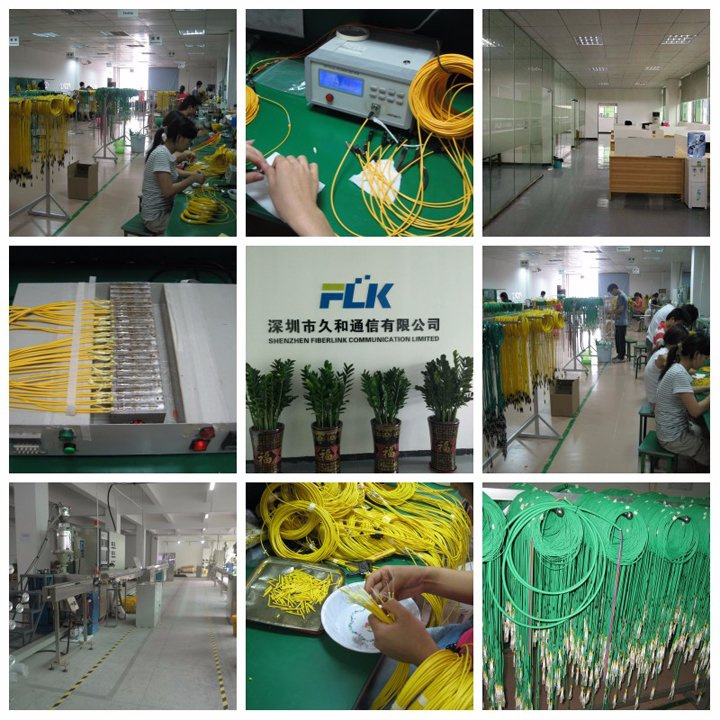

Our fiber patch cord production line:
