8.4V 3A Smart Charger for Lithium Battery Pack

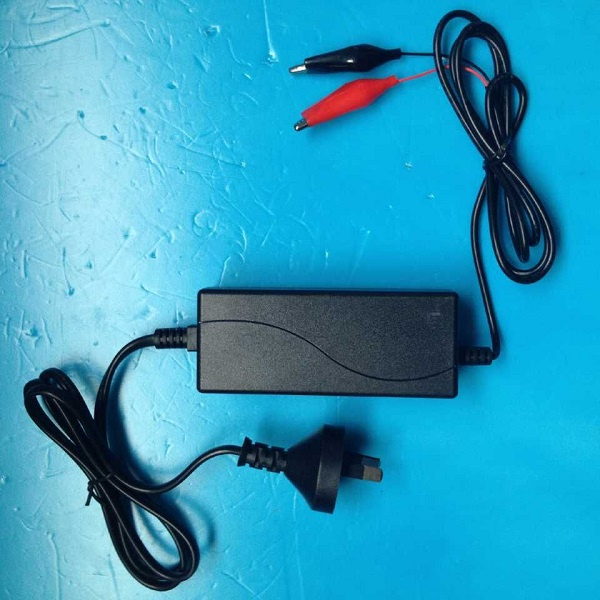

Name: 8.4V 3A Smart Charger for Lithium Battery Pack
Brand: all-electronics-online.com
SKU: 804482285
Availability: InStock
Rating: 4.8 (138 reviews)

Price:	US $ 7.50/Piece
Min Order:	200/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	QW074-030-L
Input Voltage:	AC100-240V 50/60Hz
Desktop Type:	Yes
Voltage:	8.4V
Delivery Date:	15days
Warranty:	One Year
Type:	Lithium Battery
Charger Type:	Electric Charger
Nominal Voltage:	8.4V
Socket Type:	as Per Request

Product Description

8.4V 3A Lithium Battery Charger 100V-240V 2s 7.4V Li-ion Battery Charger

Product Description:

ITEM NAME	8.4V 3A Lithium Battery Charger
Features: . 25.2W Lithium Battery Charger . Worldwide AC Input Voltage 100-240V . Output Voltage Range: 8.4V . Output Current Range: 3A . Red/Green Led Light Show . Short-Circuit/Overvoltage/Overcurrent Protection . Meet CE RoHS Safety Standard . Warranty: 1 years
INPUT
Input Voltage	100-264VAC
Input Frequency	47-60Hz
Input Current	0.5A Max at 110VAC
Inrush Current	40A Max at 230VAC
Earth Leakage Current	Class II
No Load Input Power	<0.3W
OUTPUT
Output Voltage	8.4V 3A
Start Up Delay	1.3s Max
Start Up Rise Time	15ms Typical
Hold Up Time	10ms Min at full load 115VAC
Line Regulation	+/-1% Max
Load Regulation	+/-5% Max
Ripple Noise	1% Max
Overvoltage Protection	150% Of Nominal Output
Overcurrent Protection	150% Of Nominal Output
Short Circuit Protection	Trip And Restart
GENERAL
Isolation	3000VAC Input To Output
MTBF	50KHrs To MIL-HDBK-217F At 25OC
Operation Temperature	-10 To + 70 OC
Cooling	Natural Convection
Operating Humidity	5% To 90% RH,Non-Condensing
Storage Temperature	-40 To +90 OC
Shock	30g,Half Sine,6 Axes
Vibration	5-50Hz,Accelerated 7.35m/s
Altitude	3000m

Product features:
1 wide voltage input: 90-264V, 100-240V, the largest available for all the countries in the world use.
2 with short circuit, overload, over-current protection function, use more safety.
3 100% full load test, stable performance.
4 good insulation properties, high dielectric strength.
5 the anti-jamming good strength, high reliability.
6 switching power supply performance of DC ripple small, high work efficiency, energy saving and
environmental protection.
7 products through international certification requirements.

Shipping:
By air, we can do EMS, DHL, FEDEX, UPS, and TNT, also we can meet customer's requirement.
Shipping port: Guangzhou, Shenzhen

Our Services:
1.We will send samples to your confirmation.
2.We welcome customers to check mass 8.4v 5a battery charger for LED strip before delivery.
3.You can ask refund 8.4v 5a battery charger for LED strip in 30 days after you get them, and all of the cost we will afford if the damage results from our fault. What's more we will give you the new 8.4v 5a battery charger for LED strip as soon as possible.

Quality is our priority, win by quality" which is the origin of the our company name --Quawin.

We always highly focus on Quality Assurance and completed After-Sales Service which based on competitive price. Our QA/QC Department performs strict quality control measures on all incoming main boards, spare parts and throughout our entire production process to ensure the high quality of each products. Pursuing the goal of 'No Defect on Quality, No Claim from Customers, ' we will continue to follow international standards to provide customers with satisfactory products.

As an eight years experience manufacture, we have built a powerful R&D team which has abundant knowledge and operational experience that can develop new products and improve existing models in order to meet growing market demands. This high efficient and energetic team is good at overcoming all kinds of obstacles.

We strive for 100% customer's satisfaction through continuous improvement and now our high quality products and thoughtful services have got good reputation from customers in the North America, South America, Europe, Asia and other countries and regions.

We currently rolls out thousands of products such as E-bike battery, golf car battery, UPS battery, BMS, solar battery, backup power battery and all kinds of matched chargers etc.

To keep ahead of the competition, you need a supplier who can keep up with your demands. Please contact us and let our excellent sales team to provide perfect service to you at once.
