| Prod Model: |
Video transceiver |
| Item Name: |
Fiber Optic Video Transceiver |
| Channel: |
16 CH |
| Resolution: |
720p |
| Interface: |
BNC-FC |
| Data: |
RS485 |
| Audio: |
Supported |
| Customized: |
Available |
| Type: |
Fiber Transceiver |
| Wiring Devices: |
Integrated Wiring |
| Certification: |
GS |
| Condition: |
New |
Product Description

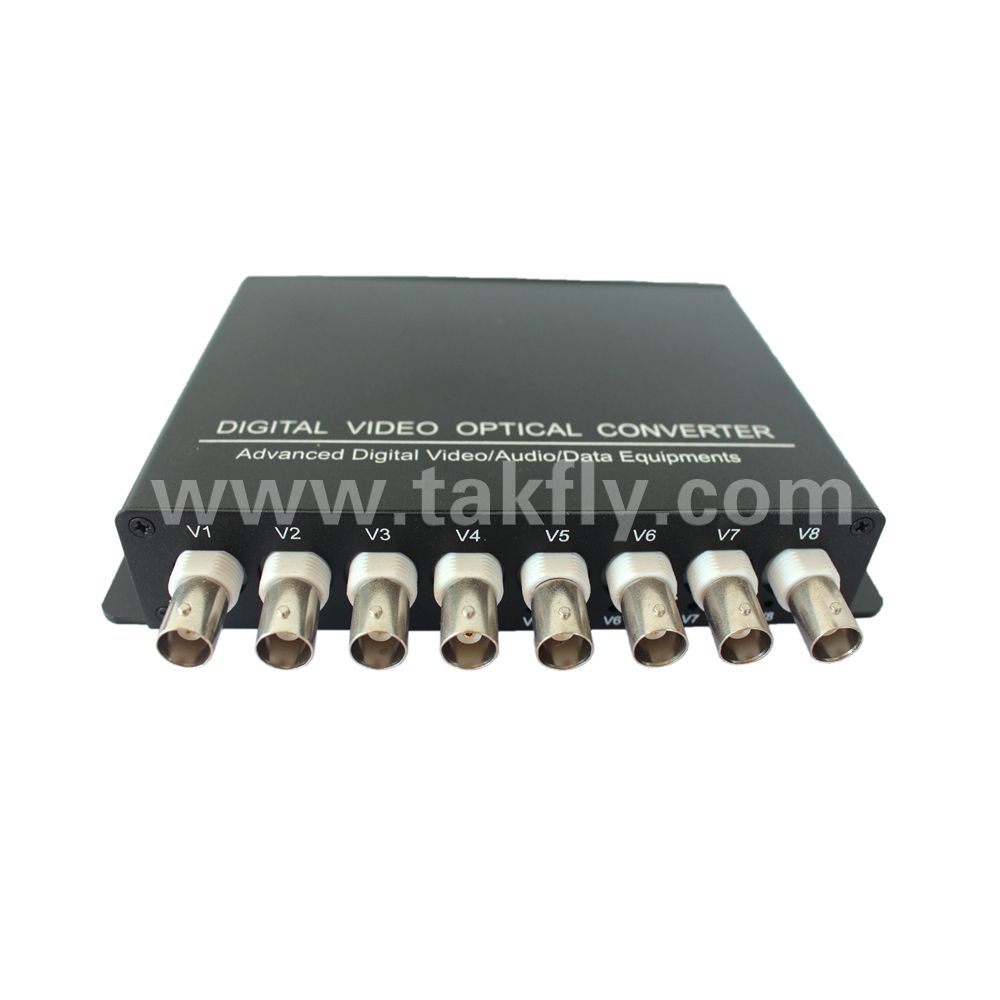

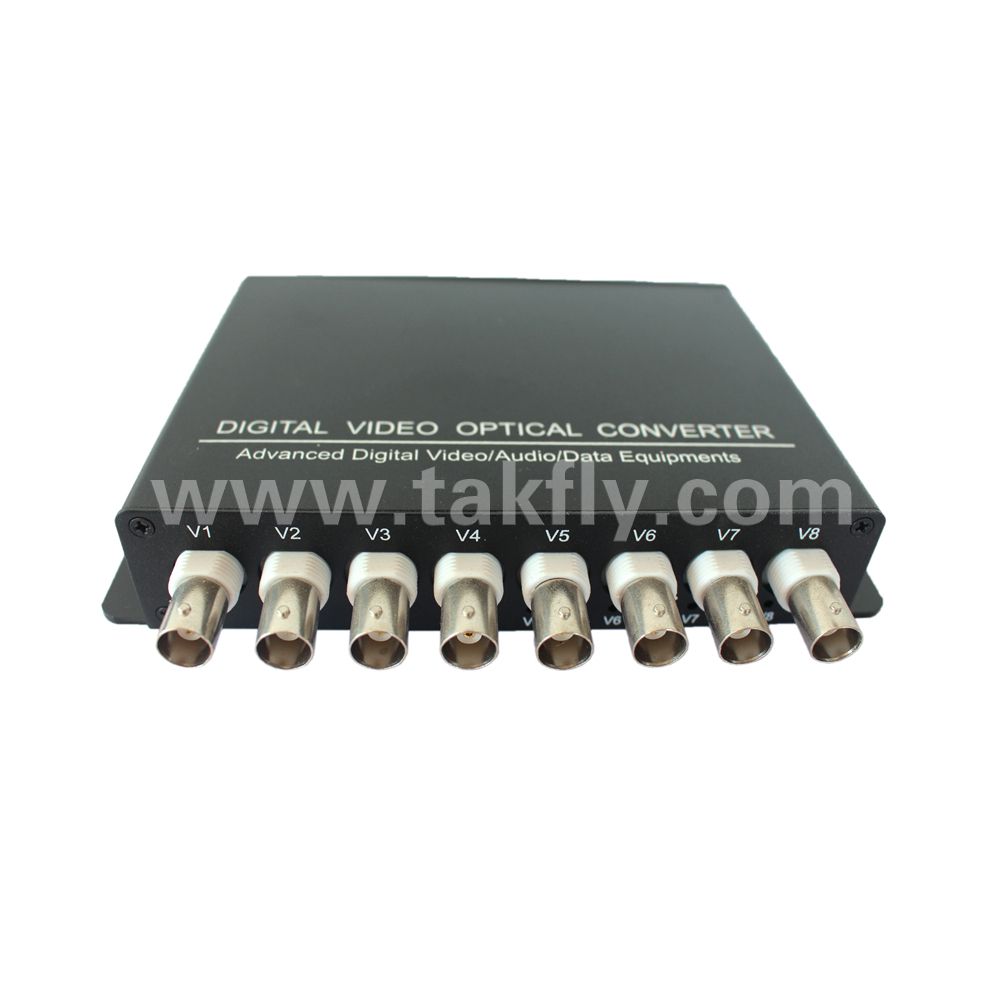

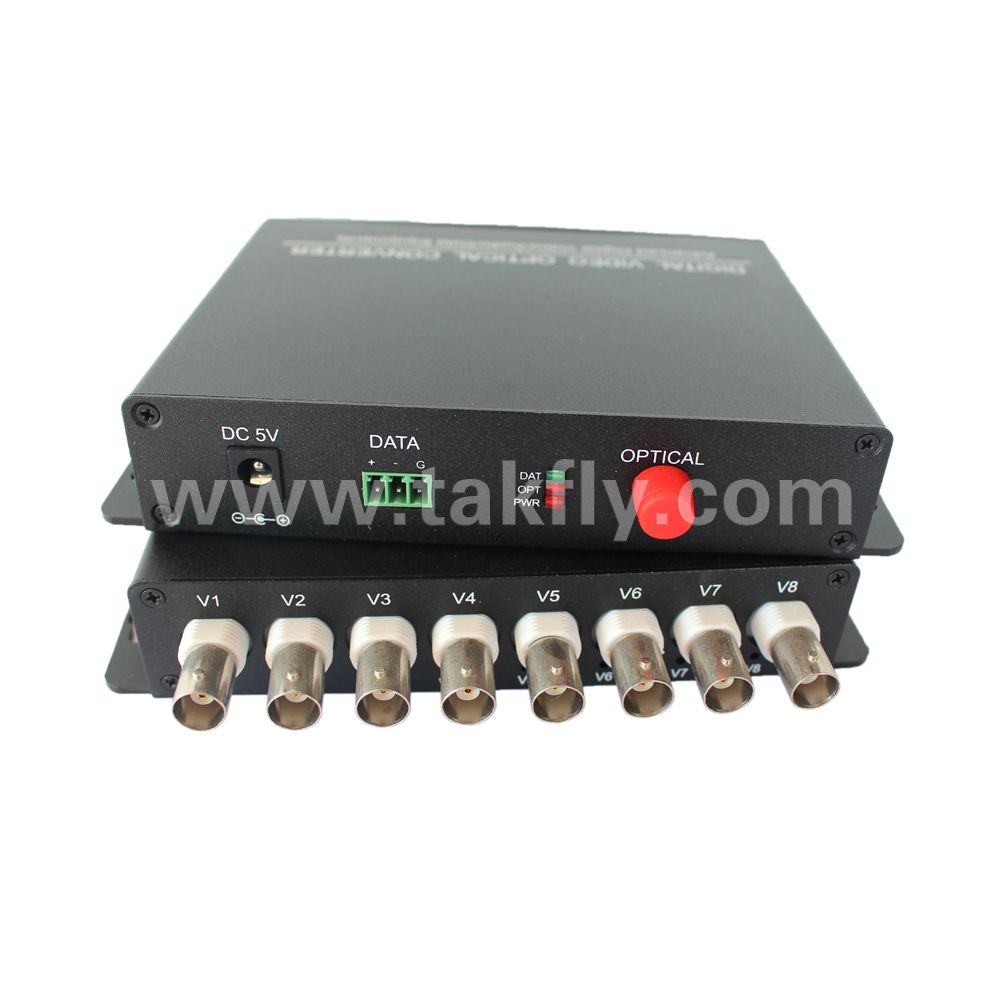

8 CH 720P Fiber Optic analog Video Optical ReceiverFiber optical video receiver is designed for long-distance fiber transmission of HDCVI HD compound video, adopt the compressed digital photoelectric conversion technology by their research and development, use fiber to transfer Millions of pixel HD video by dot to dot, and realize video transmission without delay and with high reliability. Single fiber can transfer 1-32 CH HDCVI HD compound video at the same time.
Product characteristicsAdvanced lightning protection design,support 5.7KV lightning protection;
Industrial design, SMT technology;
Digital optical fiber transmission platform,multi service platform with flexible configuration;
Provide desktop plug-in frame, concentratedin 2 ways;
Independent intellectual property rights oflarge scale integrated circuit core;
Single fiber transmission,Optional 20KM, 40KM, 60KM, 80KM,100KM, 120KM long distance transmission.
Support 30 million standard video and1280X720P/30Hz and1280PX960P/30Hz and 1280X 720P/50Hz and 1920X1080P/30HZ resolution pixel camera, analog coaxial HDvideo, studio grade transmission quality.
Uncompressed video transmission real-timetransmission, to guarantee the best effect;
Technical Parameter:| Video parameters | Video input and output impedance | 75Ω(non-equilibrium) |
| Standard video input / output voltage | 1.0Vp-p Type |
| Support camera pixels | 30million,100million,130million,200 million |
| Video pixel | Standard clear video
1280(H)* 720(V)/30Hz
1280(H)* 720(V)/50Hz
1280(H)* 960(V)/30Hz
1920(H)* 1080(V)/30Hz |
| Differential gain(10%-90% APL) | <±1% Type |
Differential phase
(10%-90% APL) | <±1% Type |
| Signal to noise ratio | >60dB(8Bit) |
| Channel physical interface | BNC |
| optical parameters | wavelength | 1310nm&1470nm-1610nm |
| Fiber type | 50/125umultimode,62.5/125umultimode,9/125usingle mode |
| optical output power | -3~-9dBm |
| Receiver sensitivity | -26dBm |
| Optical Connectors | FC,ST,SC |
| General parameters | Working power supply | 110V~240V AC adaptive |
| Operation Humidity | 0~95% |
| working temperature | -0~60 |
| storage temperature | -40~85 |
Ordering Information| Product | Description | Company | Product model |
| 16ChVideo Optical Transmitter | 1ChVideo, support 720P,960P,1080p, support HD-AHD,HD-CVI,HD-TVI | pair | DF-16V-1080P |
| 16 ChVideo 1Ch Reverse Data Optical transmitter | 1ChVideo, support 720P,960P,1080p, support HD-AHD,HD-CVI,HD-TVI ,support 1Ch Reverse Data | pair | DF-16V1D-1080P |

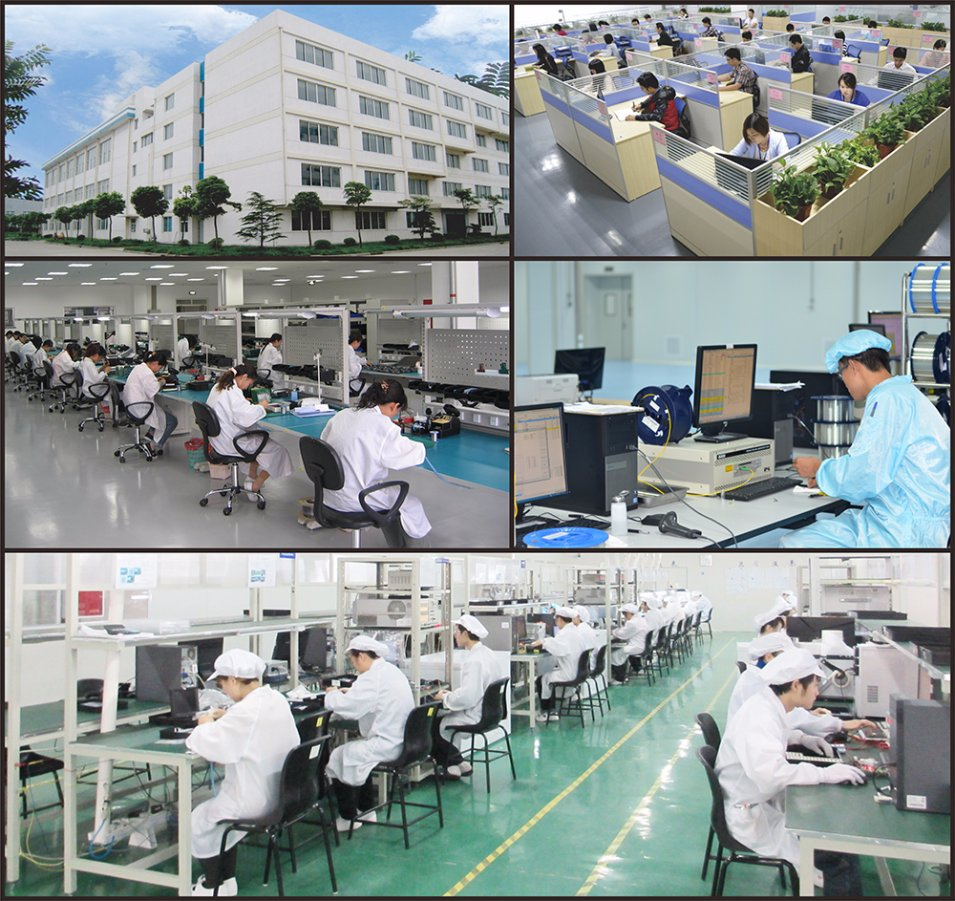

Company ProfileTAKFLY INDUSTRIAL CO., Ltd is a Hi-Tech Enterprise having its own brand and specializing in R&D manufacturer and sales of Active Optoelectronic Equipments.
The main products of TAKFLY include All Digital Audio Video Optical Transmitter/ Receiver.Optical Transceiver Series, Module Series, IP camera , IP High Speed Dome etc. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information industry, PRC, ISO90001 UL and CE standard, with ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.
TAKFLY was established in 2000, By continuing to lean from draw on the advanced management experience of foreign and domestic companies, and in the light of its own development, the company has formulated a scientific and strict management system, which lays a solid foundation for the sustainable development of the company.
Many international exhibitions upgraded "TAKFLY" as the well-known brand in the world. To be the super leader of the optical communication scopes in China is the goal of TAKFLY. In the next five years, TAKFLY will keep the strategic pattern of development- "based in south China, penetrate into whole country, extend over the world" it will bring the fiber optic industry into a brilliant future. TAKFLY-You Honest Team, will be always ready for you.
Any inquiry about this fiber optic video receiver,please leave me an inquiry or contact me directly.
