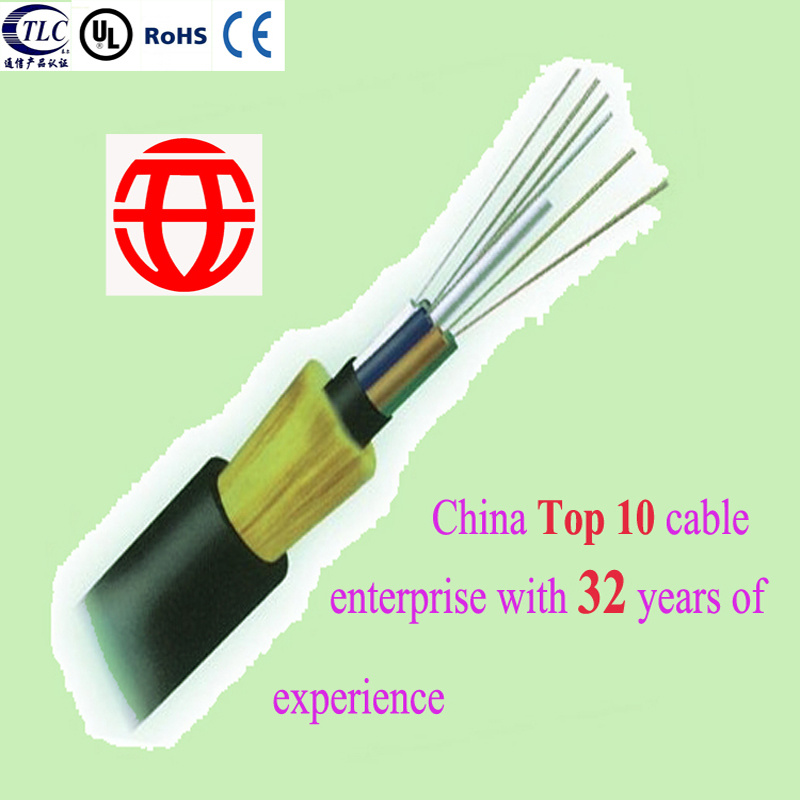

8 Core Double Sheath Non-Armored All Dielectric Self-Supporting Optical Fiber Cable From China

Name: 8 Core Double Sheath Non-Armored All Dielectric Self-Supporting Optical Fiber Cable From China
Brand: all-electronics-online.com
SKU: 719136382
Availability: InStock
Rating: 4.5 (31 reviews)

Price:	US $ 0.38-0.42/Meter
Min Order:	10000/Meter
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ADSS
Application:	Communication
Type:	Single-mode Fiber
Connection Structure:	SC
Certification:	CCC
Sheath Material:	PE
Allowed Lateral Pressure:	300n<1500n
Allowed Tensile Strength:	600n<4000n
Brand:	Hongan

Product Description

Characteristics of product:

1.For overhead power lines such as 10kv,35kv,PE outer sheath will be used.

2.For power lines such as 110kv,220kv,AT outer sheath will be used.

3.Good performance of tensile strength and temperature.

4.The deliberate design of use of aramid yarn can satisfy the demands on the conditions,such as climate,various spans and sag etc..

5.Small diameter and lighter of the cable reducing the load caused by ice and wind on the towers and supporting the structures.

Applications:

1.Area with lightning strike.

2.High voltage transmission systems.

3.Aerial.

Structure parameters:

Ref.Diameter (mm)	Nominal weight (kg/km)	Permit working tension(Max) (N)	Daily working tension (Max) (N)	Break strength (kN)	Suitable span
12.6	118	4000	1500	10	100
13.1	129	6000	2200	15	150
13.4	136	8000	3000	20	200
13.6	144	10000	3600	24	250
13.9	148	12000	4400	30	300
14.4	154	14000	5200	35	350
14.8	170	18000	6750	45	400
15.2	178	22000	7950	53	500

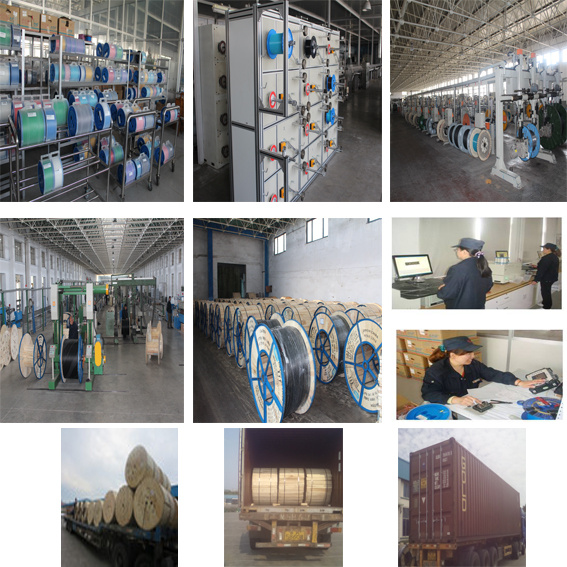

Production Line Pictures:
