8 Core Single-Mode Micro Unitube FTTH Drop Optical Fiber Cable

Name: 8 Core Single-Mode Micro Unitube FTTH Drop Optical Fiber Cable
Brand: all-electronics-online.com
SKU: 695693622
Availability: InStock
Rating: 5 (148 reviews)

Price:	US $ 0.1/Meter
Trade Terms:	FOB,others
Min Order:	2000/Meter
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GJXFH-8B6a1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jacket Color:	White
Strength Member:	FRP
Application:	Communication
Type:	Single-mode Fiber
Certification:	CE
Brand:	Neutral
Sheath Material:	Lszh

Product Description

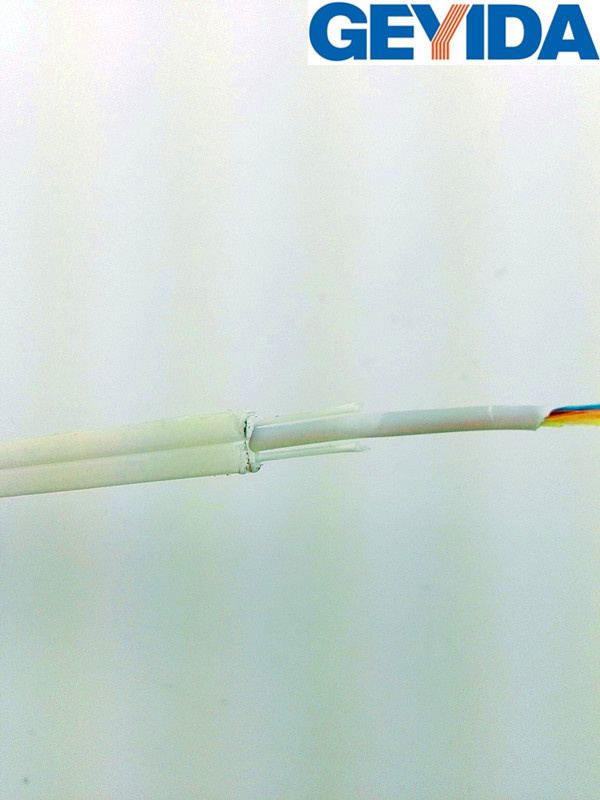

8 core Single-mode Micro Unitube FTTH Drop Optical Fiber Cable

Application
1.Used in access network or as access cable from outdoor to indoor in customer premises network;
2.Used as access building cable in premises distribution system, especially used in indoor or outdoor aerial access cabling.

Features
1.Small size and light weight.
2.Good mechanical and environmental characteristics;
3.Flame retardant characteristics meet the requirements of relevant standards;
4.Soft,flexible,easy to lay and splice,and with big capacity data transmission;
5.Meet various requirements of market and clients.

Options
Fiber Type:G.652,G.655 or G.657 single-mode fiber,A1a or A1b,OM3 or OM4 multi-mode fiber, or other types of fiber;
Jacket Material:Environmental low smoke zero halogen flame retardant polyolefin(LSZH) or other color of the clients'requirement. environmental halogen flame retardant polyolefin(ZRPO), or other contracted material;
Jacket Color:(Including color of fiber) meets the requirements of relevant standards, or other contracted color;
Cable Dimension:The nominal cable dimension, or other contracted dimension;
Delivery Length:1km or 2km, or other contracted length;
Other Requirements:Other contracted special requests.

Cable Parameters

Fiber Count

Cable Dimension(mm)

Cable Weight
(kg/km)

Tensile(N)

Crush(N/100mm)

Min.Bend Radius(mm)

Rangr of Temperature (degree)

Long Term

Short Term

Long Term

Dynamic

Static

2~12

3.0*5.0

300

600

500

1000

-20~+60

Note:All the values in the table,which are for reference only,are subject to change without notice.
The cable core use the colored coating fiber of 250um.
The minimum bend radius(static) is 15mm when G.657 fiber is used.
